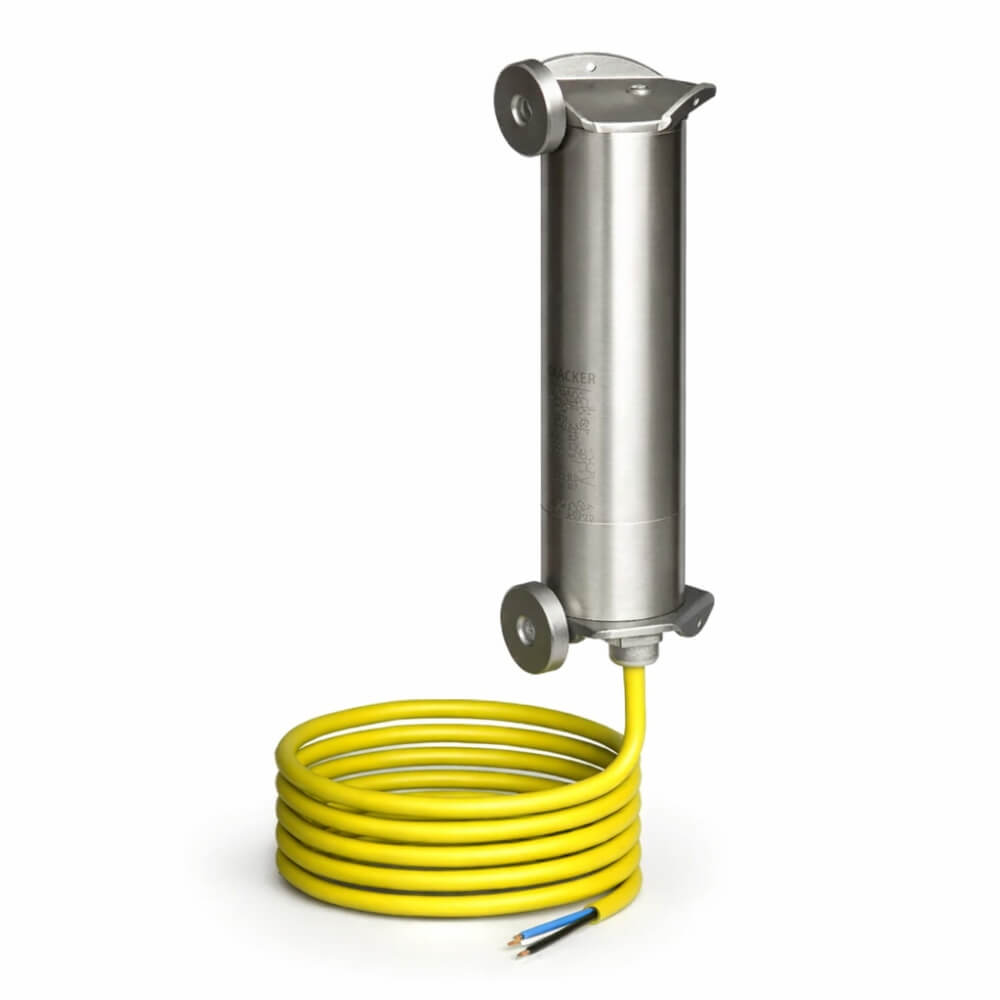

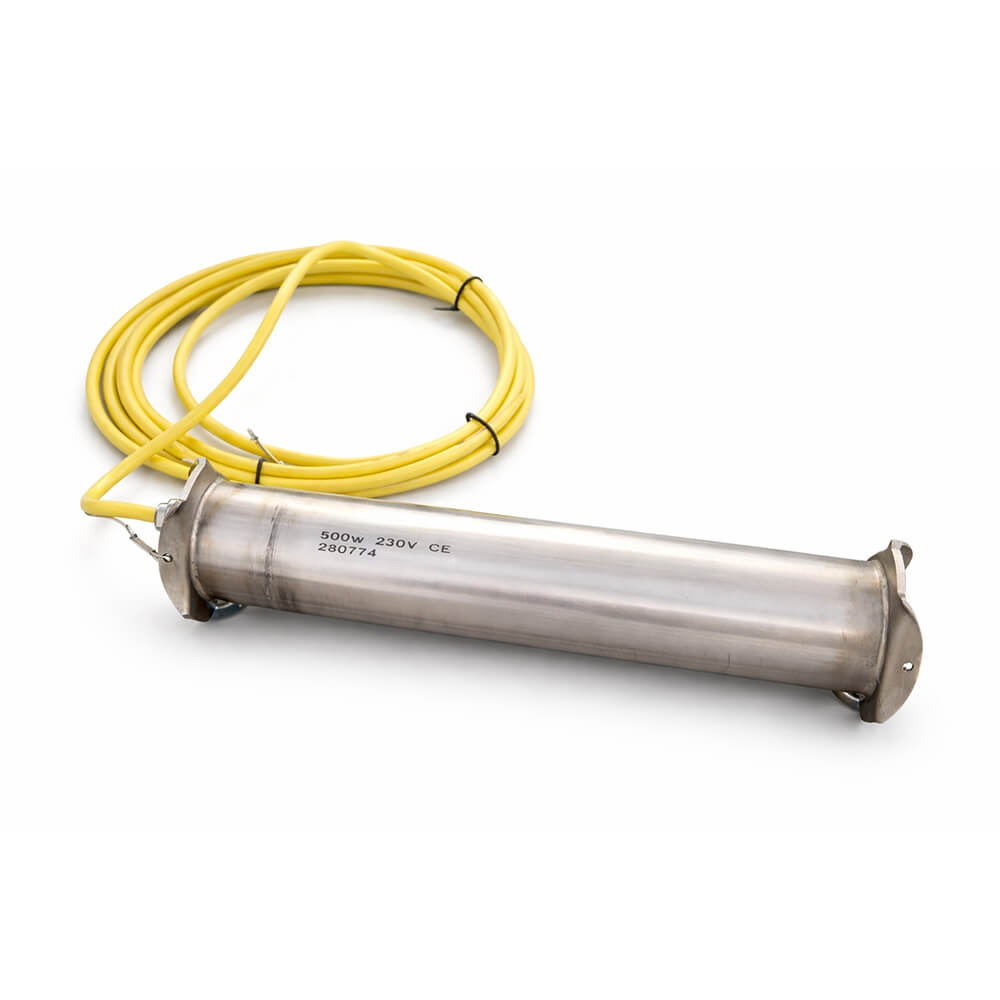

Submersible Tank Heater

The Submersible Tank Heater provides a simple and reliable solution for heating hydraulic oil, lubrication fluids and other industrial liquids directly inside tanks and containers. By transferring heat directly into the liquid, it helps maintain stable temperatures, reduce viscosity and support efficient equipment performance in cold or low-temperature conditions.

Designed for quick installation, the heater features an integrated magnetic mounting system that allows it to be positioned securely at the bottom of the tank without tools, permanent fixing or modification to the container. This makes it particularly suitable for retrofit applications where a straightforward heating solution is required.

Constructed from durable AISI 304 stainless steel and incorporating a ceramic heating element, the heater is designed for reliable operation in demanding industrial environments. With an IP68 protection rating, it is suitable for direct immersion when correctly installed.

The heater is available in 250W, 500W and 1000W versions, with 230V AC or 24V options, providing flexibility for different tank sizes and applications. Fixed temperature cut-off options, such as 20°C or 40°C, are available for basic temperature maintenance and frost protection.

Key Features

• Direct immersion heating for hydraulic oil and industrial liquids

• Integrated magnetic bottom mounting for fast, tool-free installation

• No permanent tank modification required

• Available in 250W, 500W and 1000W power ratings

• Available in 230V AC or 24V configurations

• Fixed temperature cut-off options, including 20°C and 40°C

• Durable AISI 304 stainless steel construction

• Ceramic heating element for reliable heat transfer

• IP68 protection rating

• Helps maintain oil viscosity in cold conditions

• Ideal for temperature maintenance and frost protection

• Suitable for retrofit applications

• Designed for small to medium-sized tanks


Ideal Applications

• Hydraulic oil tanks

• Lubrication systems

• Industrial machinery and equipment

• Frost protection

• Maintaining oil and fluid viscosity

• Process liquid temperature maintenance

• Small to medium-sized tanks

• Retrofit heating installations


Technical Specifications

• Power: 250W / 500W / 1000W

• Voltage: 230V AC or 24V

• Temperature Control: Fixed cut-off options, e.g. 20°C or 40°C

• Heating Element: Ceramic

• Material: Stainless steel, AISI 304

• Mounting: Integrated magnetic fixing, bottom placement

• Protection Rating: IP68

• Cable: 3 × 1.0mm², 4m length

• Surface Power Density: Approx. 0.9W/cm²

• Installation: Heater must remain at least 3cm below the fluid surface

• Compliance: CE (LVD 2006/95/EC, EN 60335-1)

The Submersible Tank Heater is an effective solution for maintaining the temperature and viscosity of hydraulic oils and industrial liquids, combining direct immersion heating with quick magnetic installation and durable industrial construction.

Specifications:

Lead Time: 1-2 weeks.

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
