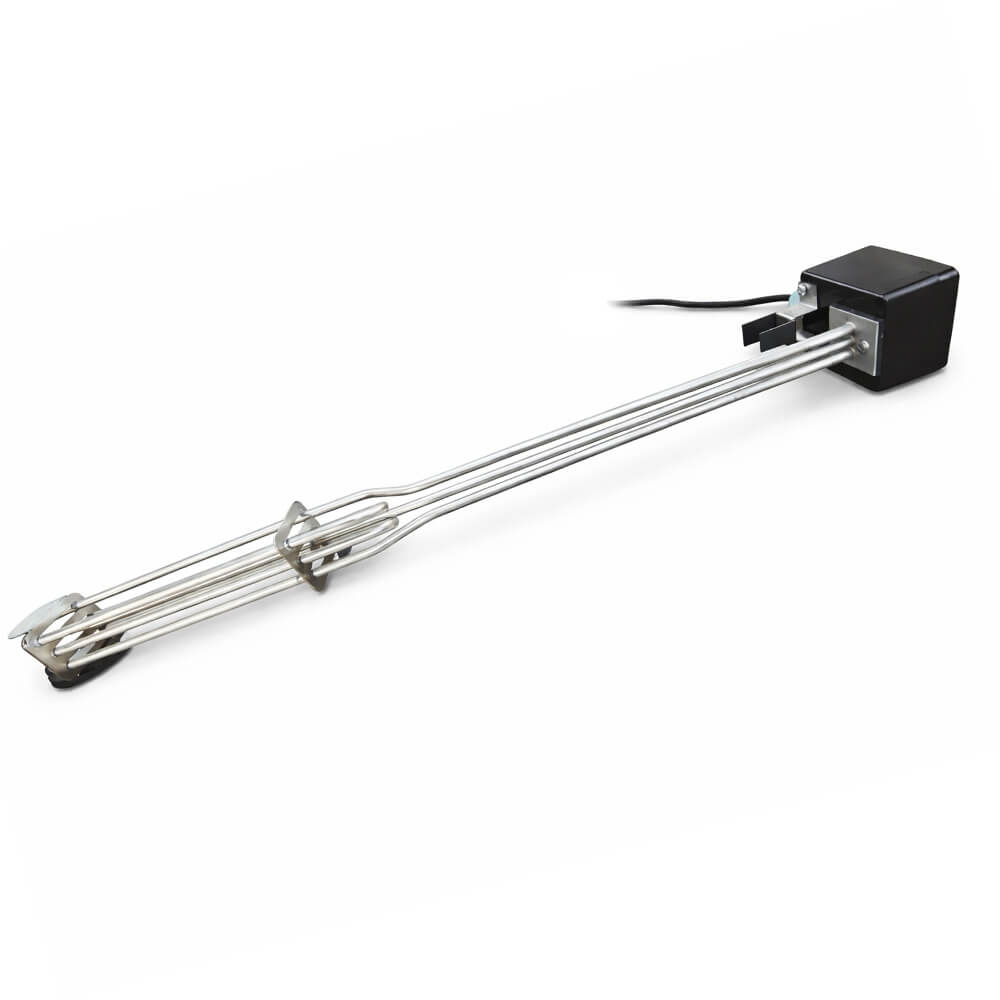

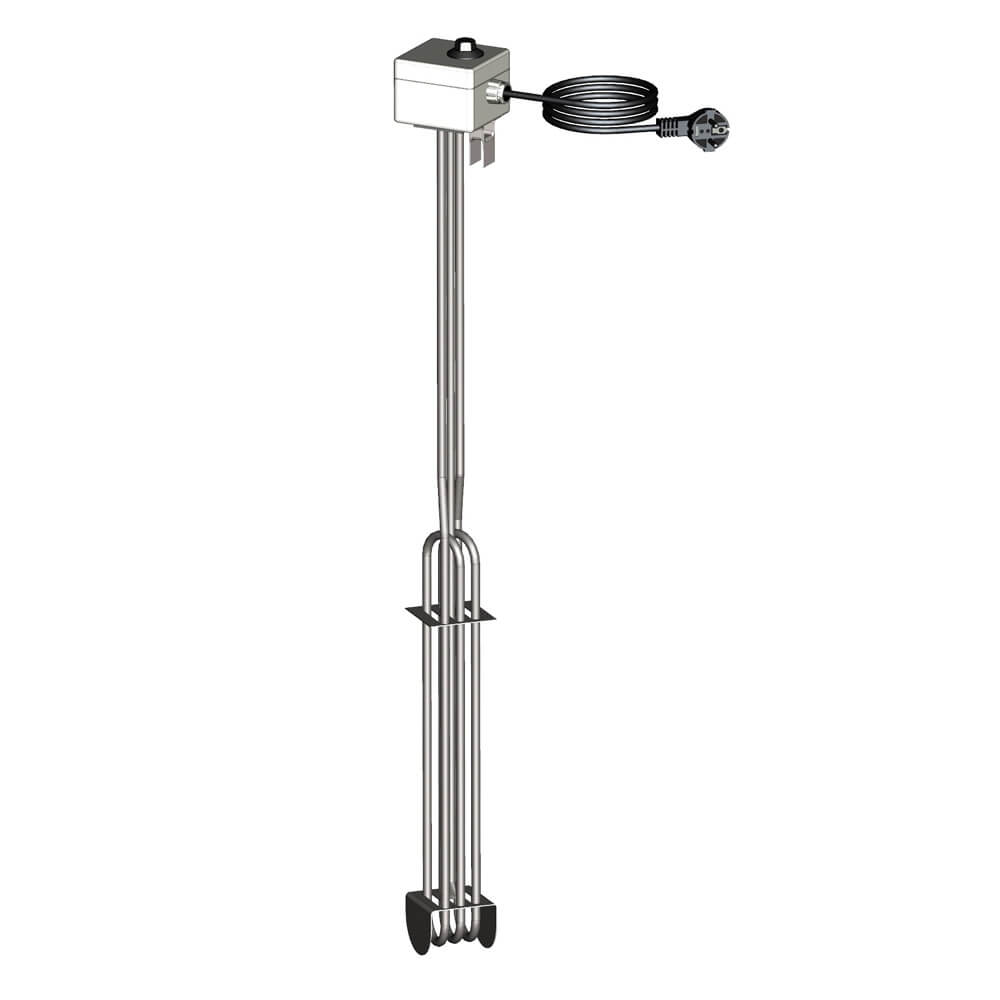

Over-The-Side Immersion Heater

The Over-the-Side Immersion Heater provides efficient and flexible heating for liquids in open vessels such as tanks, barrels, buckets and containers. Designed to hook securely over the side of the vessel, it can be installed quickly without the need for permanent modifications or complicated installation.

Featuring a robust AISI 316L acid-resistant stainless steel tubular heating element, this immersion heater is suitable for demanding industrial environments and applications involving water-based and industrial liquids. Its relatively high surface power density provides rapid heat transfer, making it particularly suitable for smaller to medium-sized volumes where fast heating and flexibility are important.

An integrated adjustable thermostat provides convenient temperature control from 30–90°C, allowing the liquid temperature to be maintained at the required level. The heater is also suitable for frost protection in exposed systems and temporary or mobile heating applications.

With an IP67-rated terminal box, the heater offers reliable protection in demanding working environments. The over-the-side design makes it a practical solution for workshops, maintenance applications and process heating where a permanent heating system is not required.

Key Features

• Efficient heating for open tanks, barrels and containers

• Convenient over-the-side mounting for quick installation

• No permanent tank modification required

• 1500W heating power for efficient heat-up

• Integrated adjustable thermostat from 30–90°C

• Durable AISI 316L acid-proof stainless steel heating element

• Suitable for water-based and industrial liquids

• Ideal for frost protection

• Suitable for temporary, mobile and process heating applications

• IP67-rated terminal box

• CE compliant


Ideal Applications

• Open tanks and vessels

• Barrels, buckets and containers

• Heating water and industrial liquids

• Frost protection in exposed systems

• Temporary or mobile heating

• Workshop and maintenance applications

• Industrial process support


Technical Specifications

• Power: 1500W

• Voltage: 230V AC

• Heater Length: 800mm

• Temperature Control: Adjustable thermostat, 30–90°C

• Heating Element: Tubular Ø8.5mm

• Material: Acid-proof stainless steel, AISI 316L

• Terminal Box: Polyamide (PA)

• Protection Rating: IP67

• Surface Power Density: Approx. 2.5W/cm²

• Cable: 300mm with plug

• Compliance: CE (LVD, EMC, RoHS)

The Over-the-Side Immersion Heater is a practical and durable solution for fast, flexible heating of liquids in open vessels, particularly where easy installation, temperature control and resistance to demanding environments are required.

Specifications:

Lead Time: 1-2 weeks.

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.

Phone: 01752 690622

Email: info@merlin-industrial.co.uk
