Manual Staddle Stacker 1000kg
Description
Description

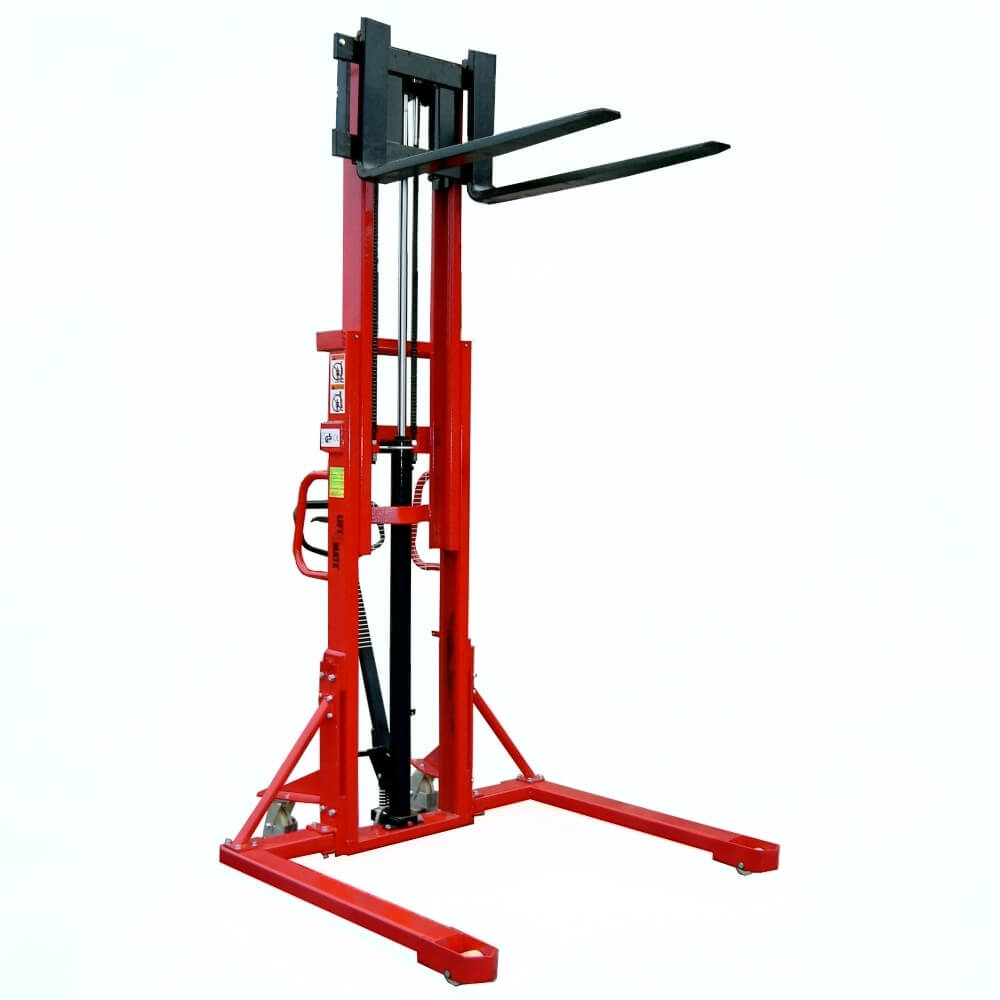

The Manual Straddle Stacker 1000kg from the KI range is a strong, reliable, and versatile solution for everyday pallet handling. Built from robust steel profiles, this compact stacker is designed to deliver durability, stability, and ease of use in demanding working environments.
Equipped with both an ergonomic pump handle and a foot pump, the stacker offers flexible operation to suit user preference and improve efficiency. The adjustable lowering speed allows for smooth, controlled handling of loads.
This straddle version is specifically designed to handle closed-bottom pallets, including UK standard blue pallets (commonly known as GKN or CHEP pallets). The wide straddle legs not only enable this capability but also provide excellent balance and stability, enhancing overall safety during operation.
Fitted with durable forged forks as standard, the stacker features adjustable fork widths to accommodate a variety of pallet sizes. It is available in two lift height options—1600mm and 2500mm—making it suitable for a range of stacking and loading tasks.
Key Features:
- Load capacity: 1000kg
- Suitable for closed-bottom pallets up to 1200 x 1200mm
- Straddle legs for improved balance and stability
- Straddle gap: 1290mm
- Ergonomic pump handle and foot pump for flexible operation
- Adjustable fork width with forged forks as standard
- Available lift heights: 1600mm and 2500mm
- Swivel castor steer wheels for easy manoeuvrability
- Safety valve to prevent overloading
- Adjustable lowering speed for controlled operation
- Robust steel construction for long-term durability
A practical and dependable choice for safe and efficient pallet handling in warehouses, workshops, and industrial environments.
Technical Specifications:
| Model | KI1000/1600SA | KI1000/2500SA |
| Capacity | 1000kg | |
| Load Centre | 600mm | |
| Max. Lift Height | 1600mm | 2500mm |
| Fork Length | 1060mm | |
| Width Over Forks | Adjustable 240–940mm | Adjustable 240–700mm |
| Overall Length | 1540mm | 1600mm |
| Overall Width | 1500mm | |
| Overall Closed Height | 2050mm | 1840mm |
| Lowered Fork Height | 60mm | |
| Wheels | Nylon | |
| Wheels Diameter | ø 200 / ø 80mm | |
| Approx. Weight | 336kg | 340kg |
Lead Time: 2 weeks.
Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
