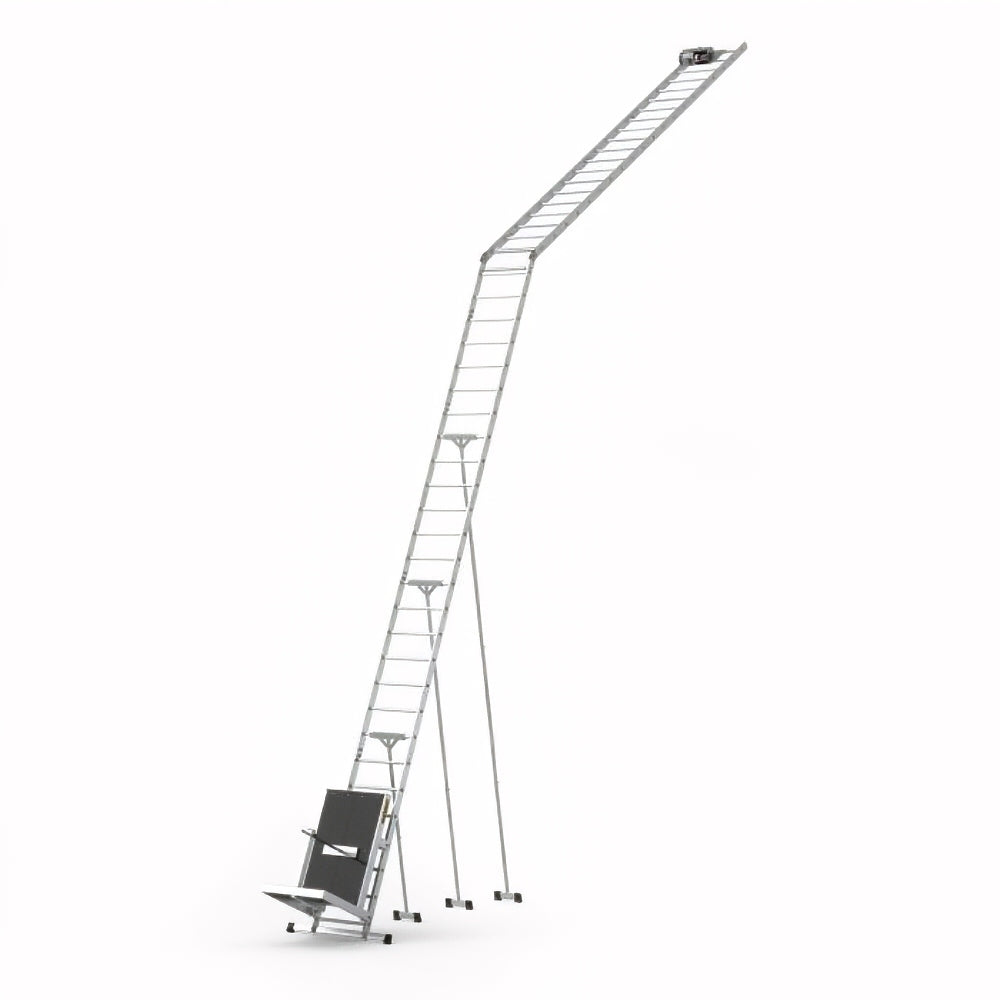

Ladder Hoist with Transport Trolley for Photovoltaic Panels

Designed specifically for the installation and maintenance of photovoltaic (PV) panels, this lightweight aluminium ladder hoist provides a safe, efficient, and reliable solution for lifting panels and equipment to roof level. Combining a robust aluminium ladder system, powerful electric winch, and purpose-built transport trolley, it helps reduce manual handling while improving productivity on site.

Constructed from lightweight aluminium with grooved rungs, the modular ladder system is quick to assemble and dismantle. When folded, it offers a compact footprint for easy transport and storage. Despite a total component weight of just 90kg, the hoist is capable of lifting loads of up to 125kg at an average speed of 8m/min, making it ideal for professional PV installation work.

The dedicated photovoltaic panel transport trolley features a durable aluminium frame with a waterproof, non-slip plywood platform. Foldable side panels allow panels and other oversized materials to be loaded and transported safely and securely.

Fully certified and compliant with relevant occupational health and safety standards, this hoist is designed to deliver dependable performance and long-term reliability in demanding working environments.

Features:

• Designed for the installation and maintenance of photovoltaic (PV) panels.

• Lightweight aluminium ladder construction with grooved rungs.

• Fast and simple assembly and dismantling.

• Compact folded design for convenient transport and storage.

• Electric winch improves efficiency and reduces manual handling.

• Purpose-built PV panel transport trolley with aluminium frame.

• Waterproof, non-slip plywood platform.

• Foldable side panels for transporting larger or oversized panels.

• Fully certified and compliant with relevant health and safety standards.

Technical Specification:

• Maximum load capacity: 125kg

• Total weight of components: 90kg

• Average lifting speed: 8m/min

• Rope length: 12m

• Supply voltage: 230V

• Motor power: 1,050W

• Maximum roof height: 6.5m

• Folded hoist dimensions: 630 × 580mm

• Transport trolley dimensions: 800 × 1,180 × 720mm

Hoist Set Includes:

• 1 × 1.85m ladder frame with stabiliser

• 3 × 1.85m ladder frames

• 2 × 1.06m ladder frames

• 1 × Hinged frame

• 1 × Drive unit

• 1 × Photovoltaic panel transport trolley

• 1 × Telescopic support

• 1 × Mounting bracket

Lead Time: 2-3 working days

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
