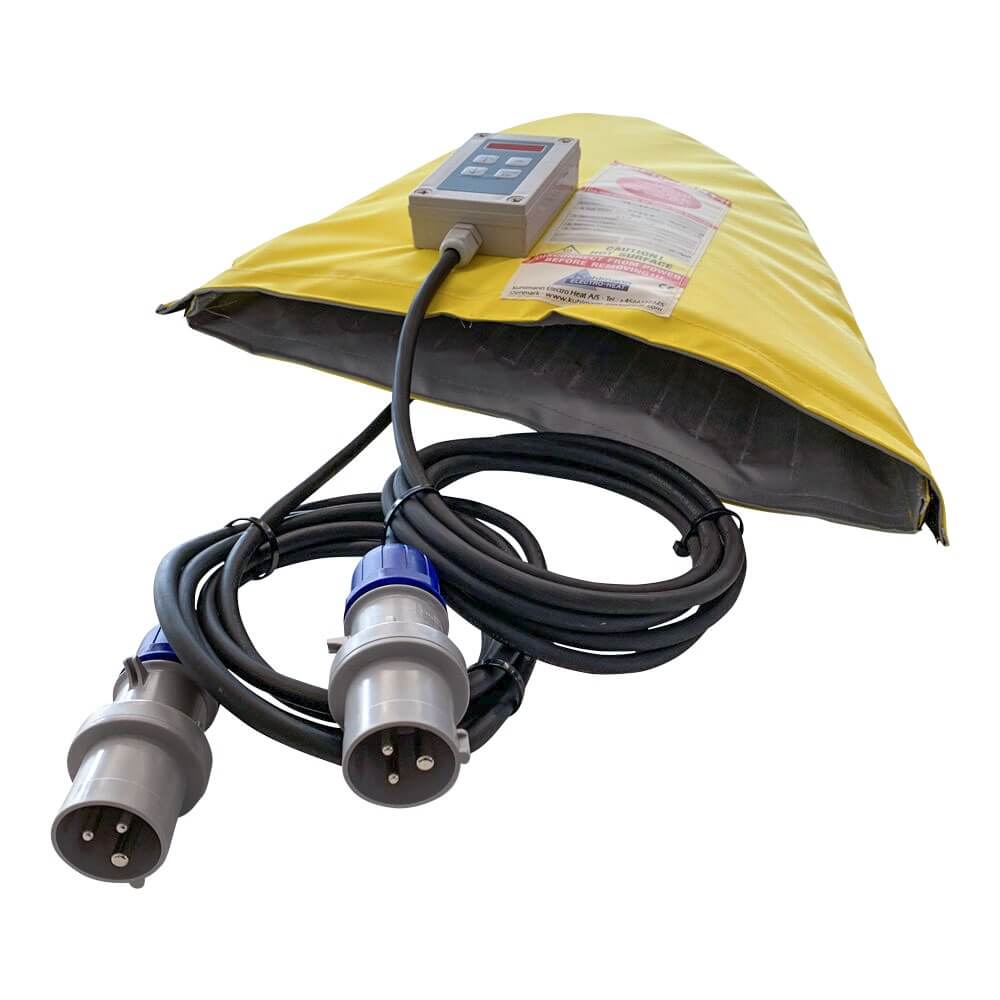

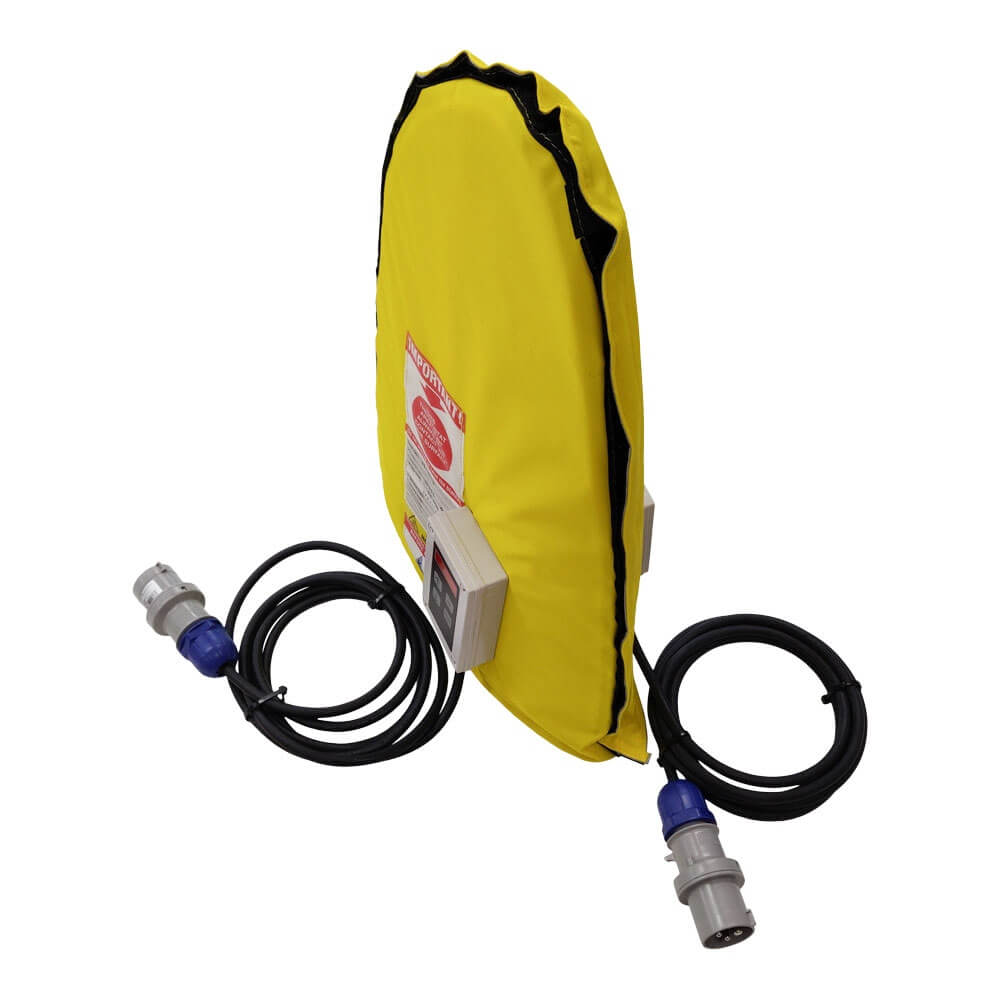

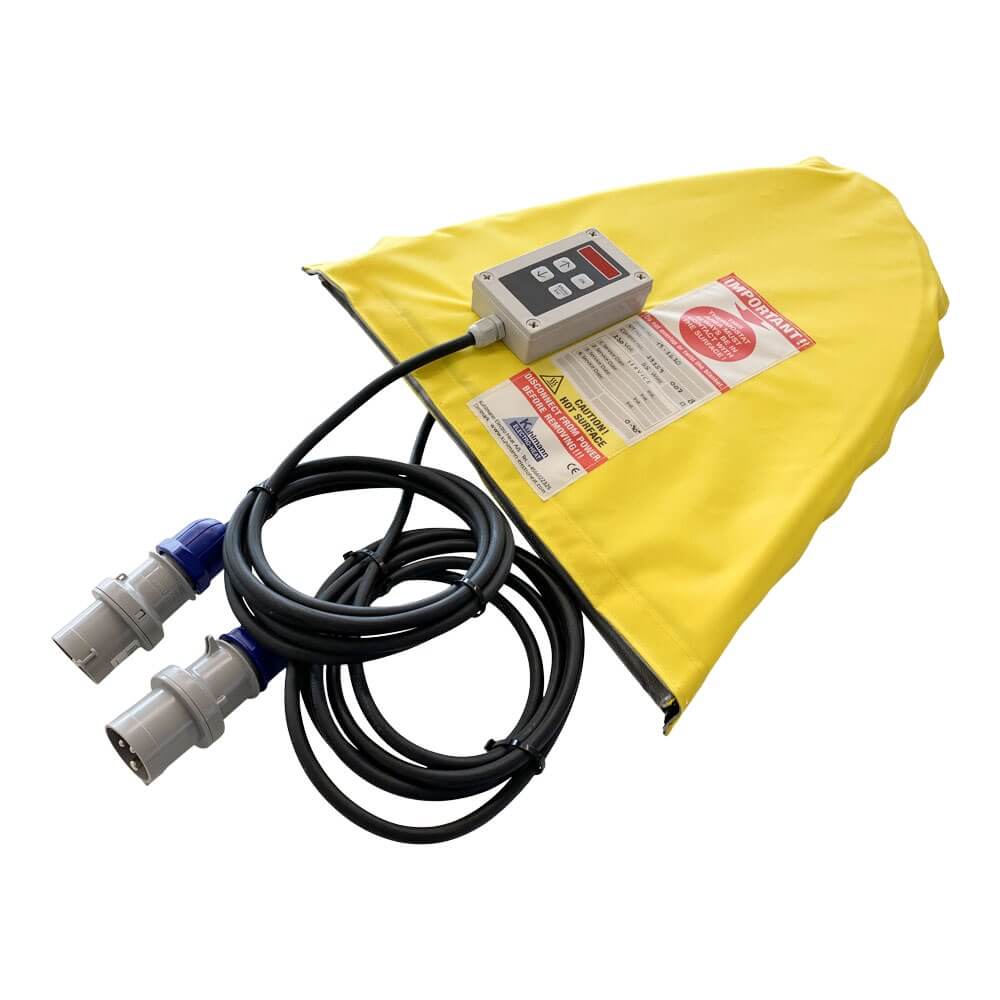

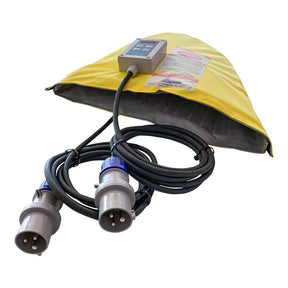

Heating Blankets for Wind Turbine Blade Tips 0-90°C

The Heating Blanket for Wind Turbine Blade Tips is a purpose-designed heating solution developed to provide precise and consistent curing of the leading and trailing edges of wind turbine blade tips. Engineered for use during both blade manufacture and repair, these heating blankets deliver reliable, controlled heating to ensure composite materials are fully cured before finishing operations begin.

Operating at stable temperatures of approximately 60°C or 80°C, the blanket creates the ideal curing environment for composite materials, carbon fibre laminates and epoxy prepreg systems. This controlled heating process helps achieve a high-quality finish while reducing the risk of defects caused by incomplete curing.

By ensuring blade tips are fully cured before grinding and polishing, the heating blanket eliminates the risk of machining uncured material, helping to improve workplace safety, maintain product quality and reduce unnecessary waste. This makes it an essential solution for manufacturers and maintenance teams working within the wind energy and renewable energy sectors.

Each heating blanket is supplied with a mounted temperature controller for accurate temperature regulation and dependable curing performance straight from installation. Available in a wide range of standard sizes and power ratings, the blankets can also be manufactured to bespoke dimensions and specifications to suit individual blade designs and production requirements.

Lightweight, durable and easy to install, these heating blankets can be used individually or joined together to heat larger blade sections, providing a flexible solution for a wide variety of wind turbine blade applications.

  Blade Tip Heating Blankets - PDF

Features & Benefits

• Specifically designed for curing wind turbine blade tips

• Ideal for both blade manufacturing and repair applications

• Provides stable operating temperatures of approximately 60°C or 80°C

• Suitable for curing composite materials, carbon fibre and epoxy prepreg

• Ensures complete curing before grinding and polishing

• Helps improve product quality and reduce finishing defects

• Mounted temperature controller for accurate heat regulation

• Energy-efficient insulated construction minimises heat loss

• Multiple blankets can be combined to cover larger surfaces

• Available in a wide range of standard sizes

• Custom sizes and power ratings manufactured to order

• Optional fixing straps available for secure installation


Technical Specifications

• Temperature Range: 0°C to 90°C

• Outer Material: Nylon

• Insulation: 8mm Polyester for excellent thermal efficiency

• Heating Element: Teflon insulated heating wire

• Heating System: Grounded for increased safety

• Safety Protection: Integrated safety thermostat

• Temperature Control: Adjustable digital temperature controller, temperature sensor or bi-metal limiter available

• Power Cable: 3 metre cable supplied (without plug)

• Applications: Composite curing, carbon fibre, epoxy prepreg and wind turbine blade repair

• Installation: Optional securing straps available

• Sizes: Numerous standard sizes available, with bespoke sizes manufactured on request

The Heating Blanket for Wind Turbine Blade Tips provides a reliable, efficient and cost-effective solution for curing composite blade sections. Designed to deliver consistent temperatures and excellent heat distribution, it helps improve manufacturing quality, reduce rework and support safe, dependable production within the wind energy industry.

Specifications:

Custom sizes also available please get in contact with further details.

Lead Time: 1-2 weeks.

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
