GroundTuff Urban Matting - Charcoal

The GroundTuff Urban Matting – Charcoal is a lightweight yet highly durable temporary ground protection solution, designed to provide safe and reliable access across a wide range of environments. Manufactured from 100% recyclable High-Density Polyethylene (HDPE), each mat measures 1100mm x 2400mm and is 8mm thick, offering a robust surface capable of supporting loads of up to 35 tonnes*.

Designed for versatility, the GroundTuff Urban features a smooth surface on one side and a 4-bar chequered plate pattern on the reverse, providing excellent anti-slip properties while also allowing smooth wheeled access. This combination makes it ideal for pedestrian use, vehicles, machinery and material storage areas.

Like the rest of the GroundTuff range, the Urban Mat incorporates pre-drilled corner and side connection points, enabling mats to be securely linked together using our full range of 2-way and 4-way connectors. Integrated handholds and a lightweight design ensure quick deployment, easy repositioning and efficient storage, helping projects stay on schedule.

Suitable for repeated use, the GroundTuff Urban offers a practical, maintenance-free solution for protecting sensitive ground and creating stable temporary access routes in demanding environments.

Features:

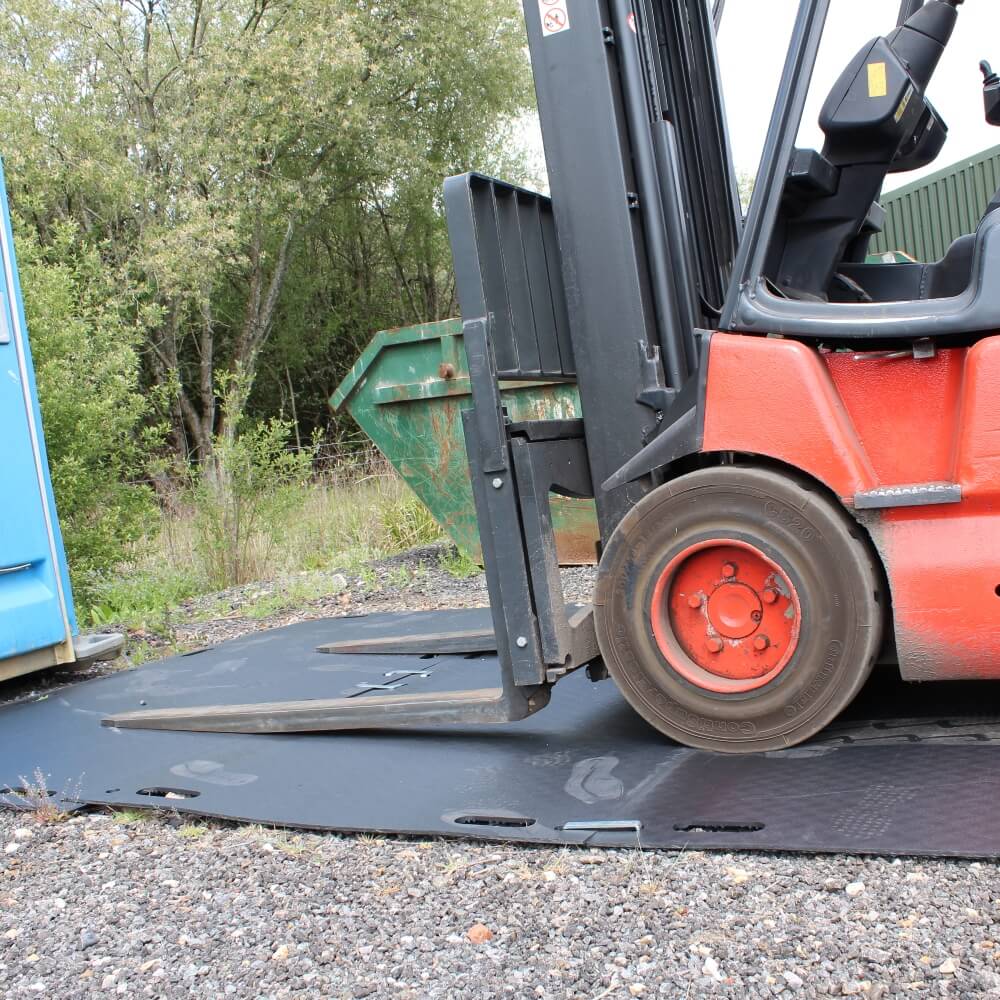

• Supports loads of up to 35 tonnes*, suitable for machinery, vehicles and pedestrian traffic.

• Manufactured from 100% recyclable High-Density Polyethylene (HDPE).

• Lightweight design weighing just 24kg per mat for easy 1 or 2-person handling.

• Dimensions: 1100mm x 2400mm x 8mm.

• Dual-surface design featuring:

• 4-bar chequered plate pattern for enhanced grip and slip resistance.

• Smooth reverse side for easy wheeled access.

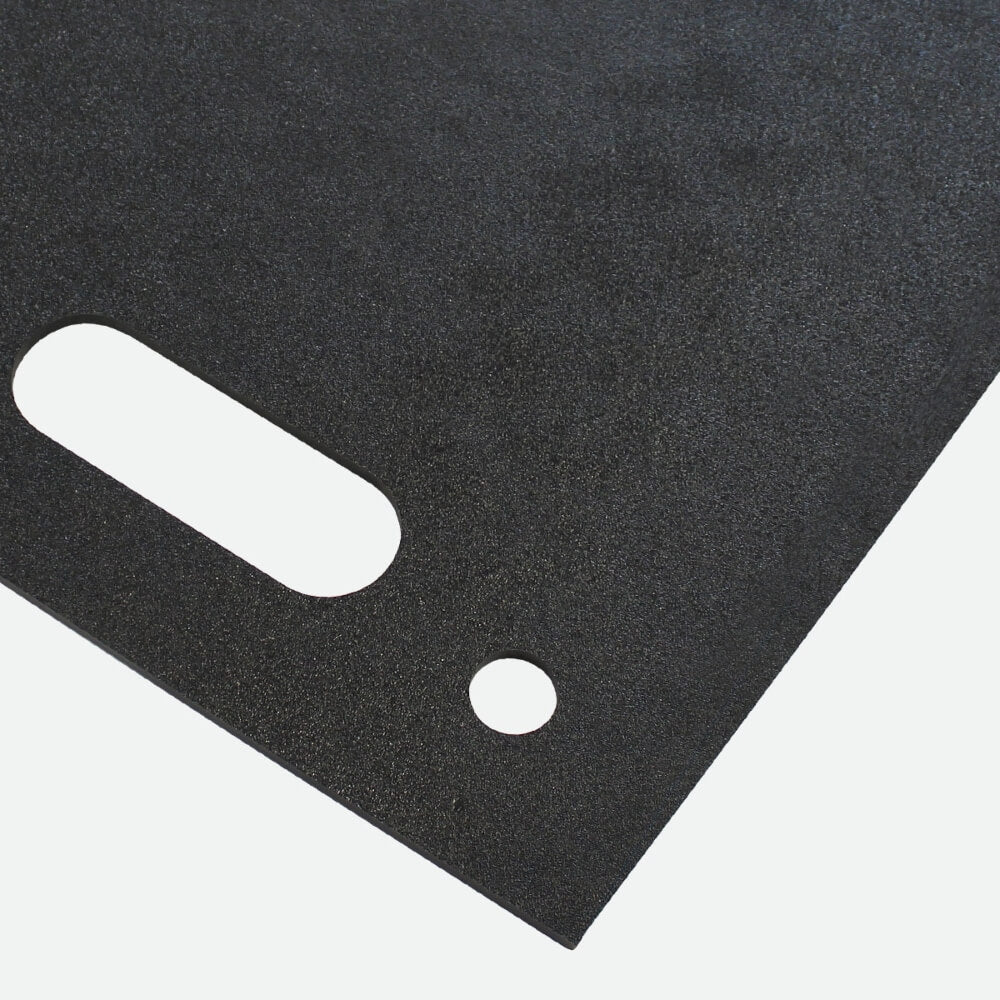

• Integrated hand holes for quick and efficient handling on-site.

• Pre-drilled corner and side connection points for secure mat-to-mat fixing.

• Compatible with GroundTuff 2-way and 4-way connectors.

• Weatherproof and resistant to oils, chemicals and harsh environmental conditions.

• Waterproof, maintenance-free construction for long-term, repeated use.

• Improves health and safety by providing a stable, secure working surface and reducing risks associated with uneven or poor ground conditions.

Technical Specifications:

• Slip resistant - Excellent slip resistance to level 3
• Wear resistant - Excellent wear resistance to level 3, suitable for heavy footfall
• Chemical resistant - Yes, resistant to most chemicals, grease, and oils
• Connectable - Mats are connectable to create any shape or size
• Dry area - Yes
• Wet area - Yes
• Heavy area - Yes
• Wheeled area - Yes
• Environment - Suitable for indoor and outside use
• Forklifts - Yes
• Impact resistant - Yes
• Product testing -
  - Physical properties
    Density: 0.96 g/cm³ (ASTM D792)
    Water Absorption <0,10 (ASTM D570)
  - Mechanical properties
    Surface Hardness 65 Shore D (ASTM D2240)
    Tensile strength at yield 23°C: 4000 psi (ASTM D638)
    Tensile modulus: 217000 psi (ASTM D638)
    Elongation at break: >700% (ASTM D638)
    Flexural strength: 210000 psi (ASTM D790)
    Compressive strength: 1500 psi (ASTM D695)
    Coefficient of friction, dynamic: 0.20–0.29
    Izod impact, notched: 3.5 ft-lb/in (ASTM D256)
  - Electrical resistance
    Surface resistivity: >10¹⁴ Ω/cm (ASTM D257)
    Dielectric constant: 2.4 1MHz (ASTM D150)
  - Temperature resistance
    Service temperature: -73°C to 82°C
    Melting point: 131°C (ASTM D3418)
    Vicat softening point: 125°C (ASTM D1525)
    Heat deflection temperature: 77°C (ASTM D648)
    Brittleness Temperature: -75°C (ASTM D746)
    Fire: UL94 HB

• Sustainability - 100% recyclable HDPE
• Temperature resistance - -73°C to 82°C
• Cleaning - Using a stiff brush will usually remove most dirt and debris. For more stubborn dirt, a pressure washer can be used.
• Weight - 23.5kg

Sizes:

Lead Time: 3-5 working days (subject to sales)

Please get in contact if you're needing 2+ units for further discount and a more competitive quotation.
