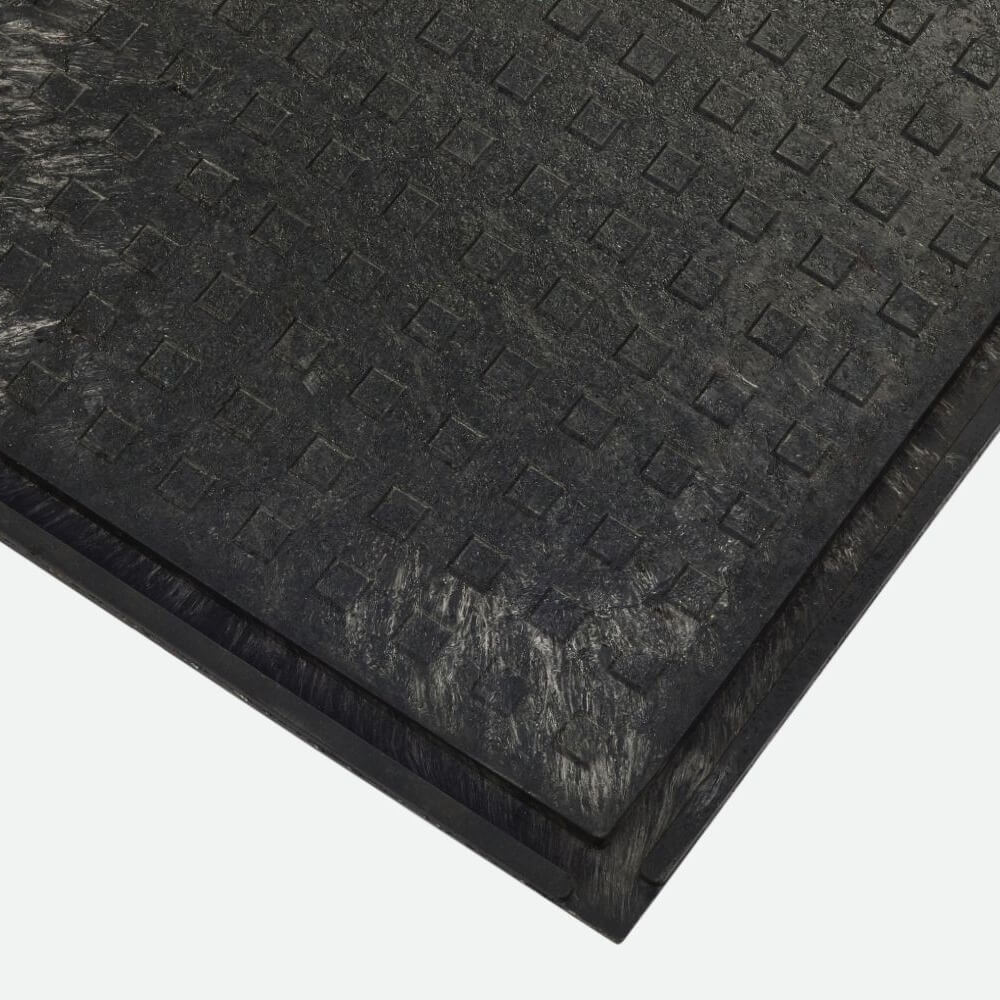

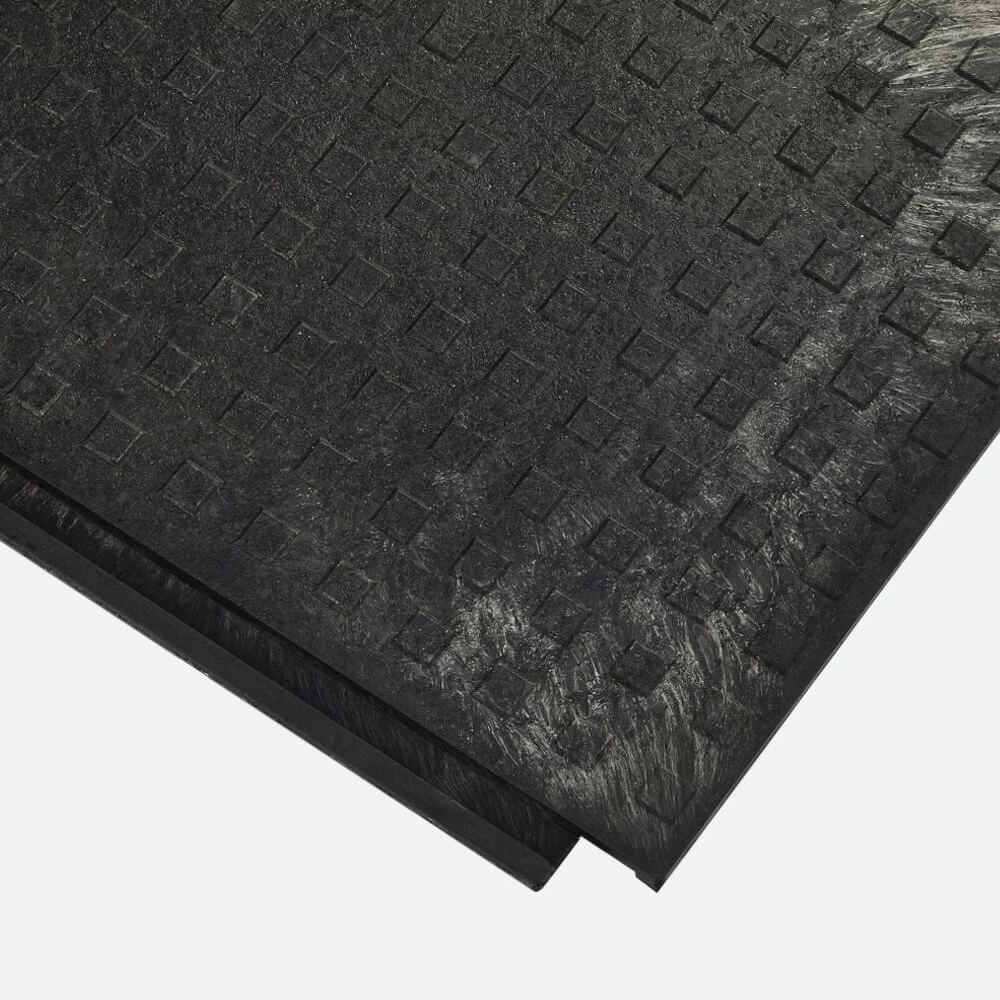

GroundTuff Matting - Charcoal

GroundTuff is a robust and reliable temporary ground protection solution, designed to provide a stable and safe surface for heavy foot traffic, equipment, and light vehicles, supporting loads of up to 20 tonnes. Its compact, lightweight design allows for easy transportation, quick installation, and effortless relocation, making it ideal for a wide range of applications.

Featuring a raised square top pattern, GroundTuff offers excellent non-slip performance, while its durable, weather-resistant construction ensures long-lasting use in all conditions.

Perfect for construction sites, outdoor markets and trade shows, temporary parking areas, sporting and recreational events, emergency access routes, weddings and special occasions, camping, and outdoor staging.

Please note: the ground beneath the matting must be structurally sound and free from significant depressions, such as potholes, as uneven surfaces may cause damage or cracking.

Features:

• Robust and reliable temporary ground protection
• Raised square surface pattern provides fantastic traction and dirt removal
• Compact design allows for easy portability, set up, and relocation
• Avoids health & safety issues caused by poor ground conditions
• Helps to reduce noise
• Supports up to 20 tonnes
• Material: 100% recycled PVC
• Overall height: 22mm


Technical Specifications:

• Slip resistant - Excellent slip resistance to level 3
• Wear resistant - Excellent wear resistance to level 3, suitable for heavy footfall
• Anti microbial - Yes
• Chemical resistant - Yes, resistant to most chemicals, grease, and oils
• Connectable - Mats are connectable to create any shape or size
• Cut to length - Yes
• Cut to size - yes
• Dry area - Yes
• Wet area - Yes
• Heavy area - Yes
• Wheeled area - Yes
• Environment - Suitable for indoor and outside use
• Impact - Yes
• Product testing -
  - Anti-slip rating: R10 (EU standard: DIN 51130:2010)
  - Fire testing: B rating of classification of reaction to fire performance (Testing method in accordance to EN 13501-1:2018)
  - Water absorption: 0.51% (PN-EN ISO 62:2008)
  - Modulus of tensile stiffness: 100MPa (PN-EN ISO 527-1:2020:01, PN-EN ISO 527-2:2012)
  - Tensile strength: 2.9MPa (PN-EN ISO 527-1:2020:01, PN-EN ISO 527-2:2012)
  Deformation at break point: 10.3% (PN-EN ISO 527-1:2020:01, PN-EN ISO 527-2:2012)
  - Charpy impact strength: 6.89kJ/m2 (PN-EN ISO 179-1:2010)
  - Ball indentation hardness: 48.4MPa (PN-EN ISO 2039-1:2004)
  - Hardness shore A: 86.3°Sh (PN-EN ISO 868:2005)
  - Ball press hardness: 48.4MPa (PN-EN ISO 2039-1:2004)
  - Electrical properties:
  1. Insulation resistance: 2.55×1013Ω/cm (PN-EN 62631-3-1:2016:10 IEC 60093:1980)
  2. Surface resistance: 7.14×1013Ω/cm (PN-EN 62631-3-2:2016:04 IEC 60093:1980)
  3. Dielectric strength: 8.11kV/mm (PN-EN 60243-1:2013-12)

• Sustainability - Made from 100% recycled PVC

Sizes:

Lead Time: 3-5 working days (subject to sales)

Please get in contact if you're needing 2+ units for further discount and a more competitive quotation.
