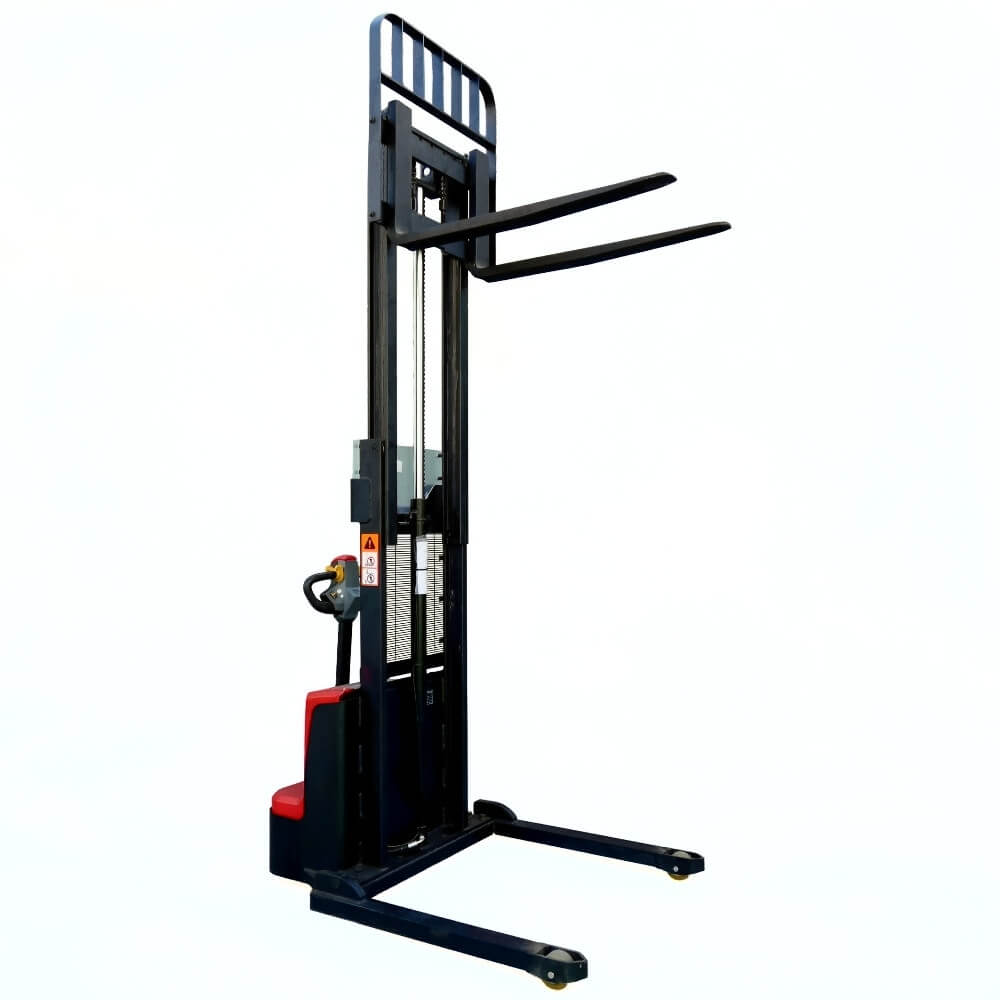

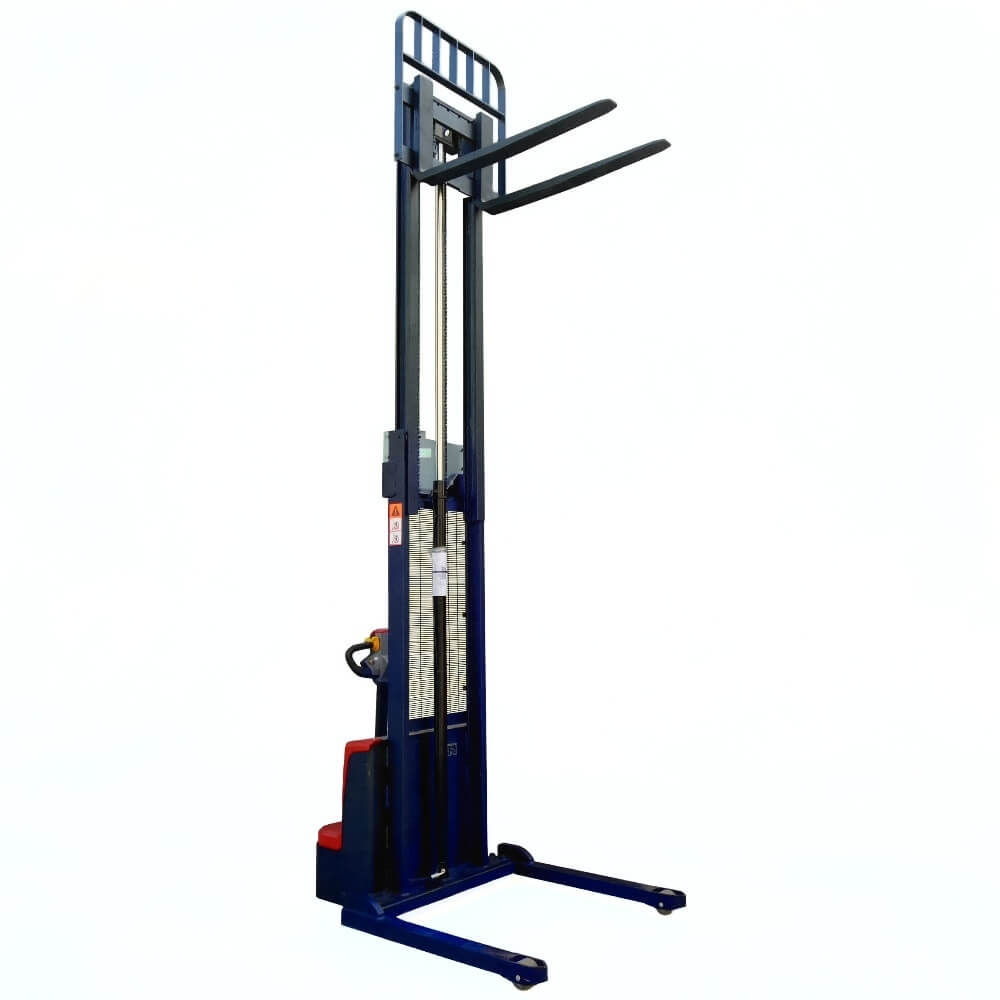

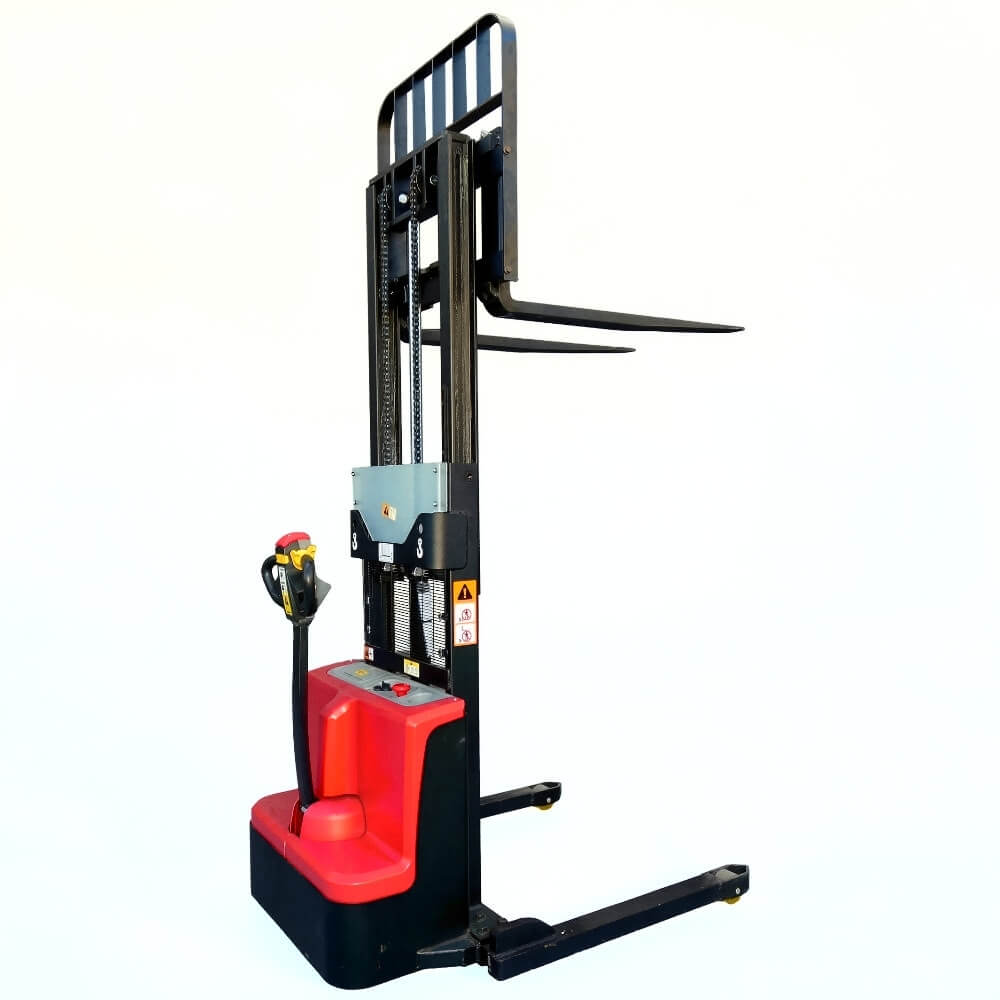

Fully Powered Straddle Stackers 1500kg
Fully Powered Straddle Stackers 1500kg - 2000mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
All prices are excluding VAT
Total Minimum Order Value: £50
Delivery and Shipping
Delivery and Shipping
Please note our minimum order value is £50.00
Orders Under £300.00
£12.00 carriage charge on all orders
Orders Over £300.00
Carriage free of charge
We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.
We will confirm the lead time when we send your order confirmation via email.
Please call if you’re needing the items quickly.
Delivery to parts of Scotland, Northern Ireland and other Isles could incur an additional delivery charge. Please get in contact for further details.
Trade Account Options
Trade Account Options
We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.
Fully Powered Straddle Stackers 1500kg
Description
Description
Fully Powered Straddle Stacker – 1500kg Capacity.
Available Lift Heights: 2000mm, 2500mm & 3500mm.
The LESS15 fully powered straddle stackers are compact, lightweight, and highly reliable units, designed for efficient material handling in small warehouses and factory environments.
Featuring adjustable straddle legs, these stackers are ideal for handling imperial and CHEP pallets, as well as other closed-bottom pallets and cages. They are also equipped with adjustable forged forks (200–795mm), making them suitable for handling non-standard and low-profile pallets with ease.
Both lift and drive functions are fully powered and controlled via an ergonomically designed handle with simple push-button operation, ensuring smooth and user-friendly handling. Variable speed control for lifting and lowering allows for precise positioning and accurate pallet placement.
Powered by two durable 12V / 71Ah batteries, the LESS15 delivers consistent performance throughout the working day. An onboard charger is included as standard and can be connected to a standard 230V / 13A 3-pin socket. A 240V charger is supplied, with an optional 110V charger available.
With a turning radius of 1455mm, these stackers offer excellent manoeuvrability in confined spaces.
Key Features:
- 1500kg load capacity
- Fully powered lift and drive
- Adjustable straddle legs
- Adjustable forged forks (200–795mm)
- Suitable for imperial, CHEP, and closed-bottom pallets
- Ideal for low-profile and non-standard pallets
- Ergonomic handle with push-button controls
- Variable speed lifting and lowering
- Compact, lightweight, and versatile design
- Turning radius: 1455mm
- 2 x 12V / 71Ah batteries
- Onboard charger (230V / 13A 3-pin socket compatible)
- 240V charger included as standard (110V optional)
- CE certified
- 12-month warranty
| Model | LESS.15.20 | LESS.15.25 | LESS.15.35 |
| Capacity | 1500kg | ||
| Load Centre | 600mm | ||
| Max. Lift Height | 2000mm | 2500mm | 3500mm |
| Fork Length | 1150mm | ||
| Width over Forks | Adjustable 200–795mm | ||
| Overall Length | 1828mm | ||
| Overall Width | Adjustable: 1150, 1290, 1430mm* | ||
| Straddle Gap | Adjustable: 970, 1110, 1250mm | ||
| Overall Closed Height | 1520mm | 1770mm | 2270mm |
| Turning Radius | 1455mm | ||
| Mast Type | Double | ||
| Battery | 12V / 71Ah x 2 | ||
| Wheels | Polyurethane | ||
| Wheels Diameter | ø 210 / 100mm | ||
* The Overall Width is based on the adjustable straddle gap choice.
Lead Time: 1 week.
Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
