Fully Powered Straddle Stackers 1000kg
Description
Description

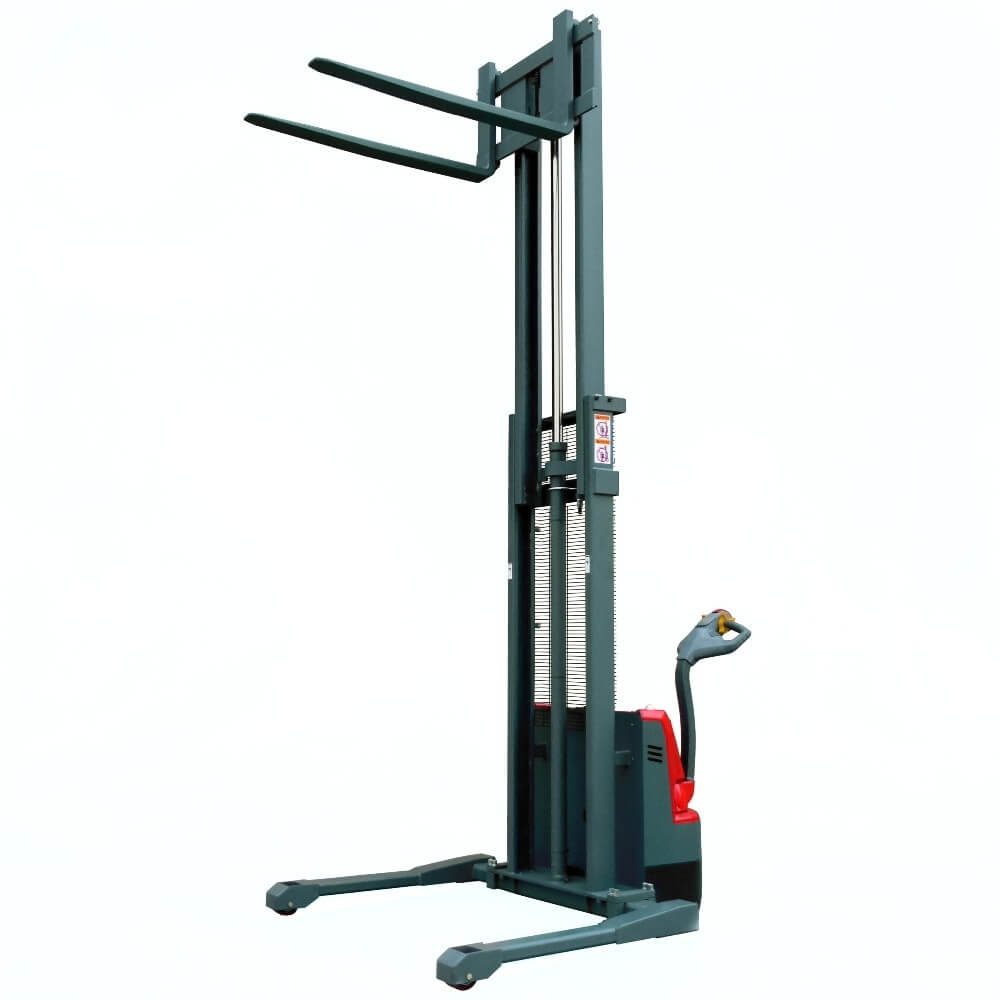

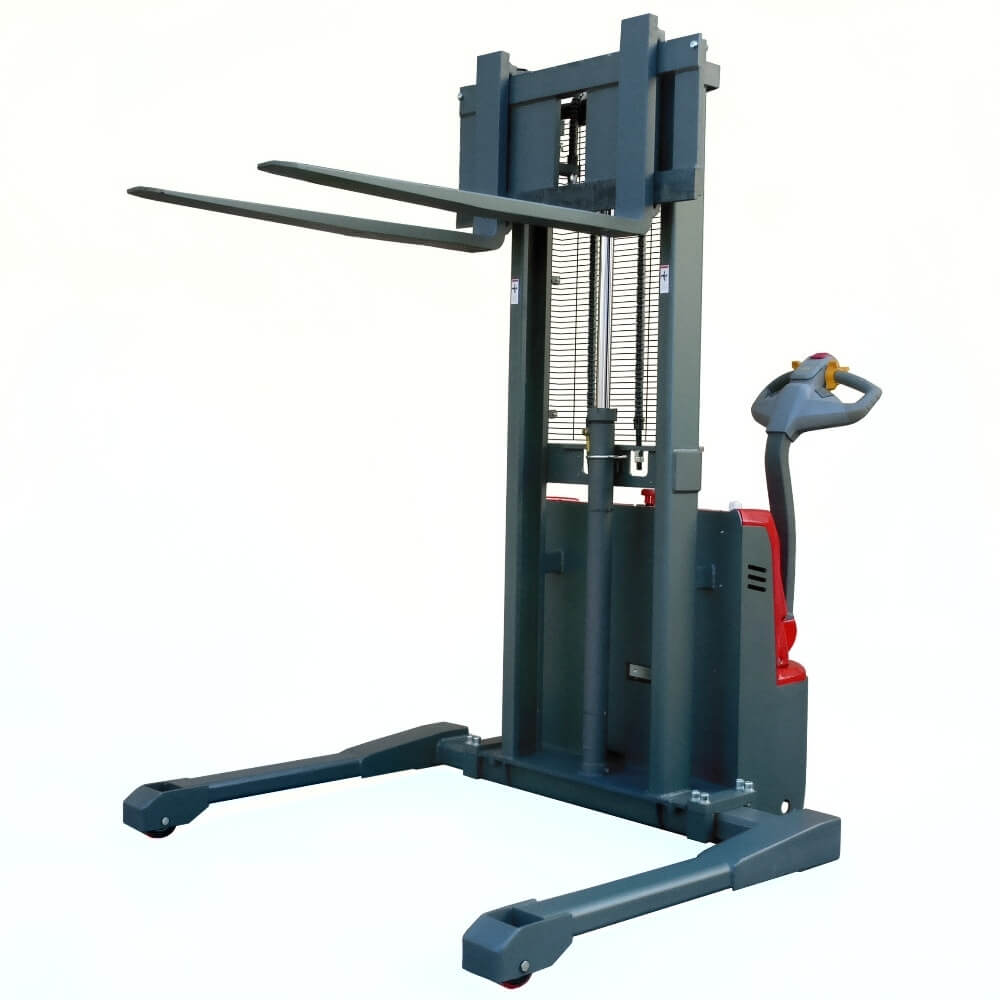

Fully Powered Straddle Stacker – 1000kg Capacity.
Available Lift Heights: 1600mm, 2500mm & 3300mm.
The LESS10 fully powered straddle stacker is a compact, lightweight, and highly versatile solution for handling a wide range of pallet types. Featuring adjustable straddle legs, it is specifically designed for use with imperial pallets, CHEP pallets, and other closed-bottom pallets and cages.
Equipped with adjustable forged forks (200–800mm), the LESS10 can easily handle special, non-standard, and low-profile pallets, offering excellent flexibility across various applications.
Both lift and drive functions are fully powered and controlled via an ergonomically designed handle, ensuring smooth and precise operation.
Its compact design and 1530mm turning radius make it ideal for use in confined environments such as small warehouses and factories.
Powered by two high-performance 12V / 71Ah batteries, the LESS10 delivers reliable, consistent performance. The integrated onboard charger allows convenient charging from a standard 230V / 13A 3-pin socket. A 240V charger is supplied as standard, with an optional 110V charger available.
Key Features:
- 1000kg load capacity
- Fully powered lift and drive
- Available in 1600mm, 2500mm, and 3300mm lift heights
- Adjustable straddle legs for closed-bottom pallets
- Adjustable forged forks (200–800mm)
- Suitable for imperial, CHEP, and non-standard pallets
- Compact, lightweight, and versatile design

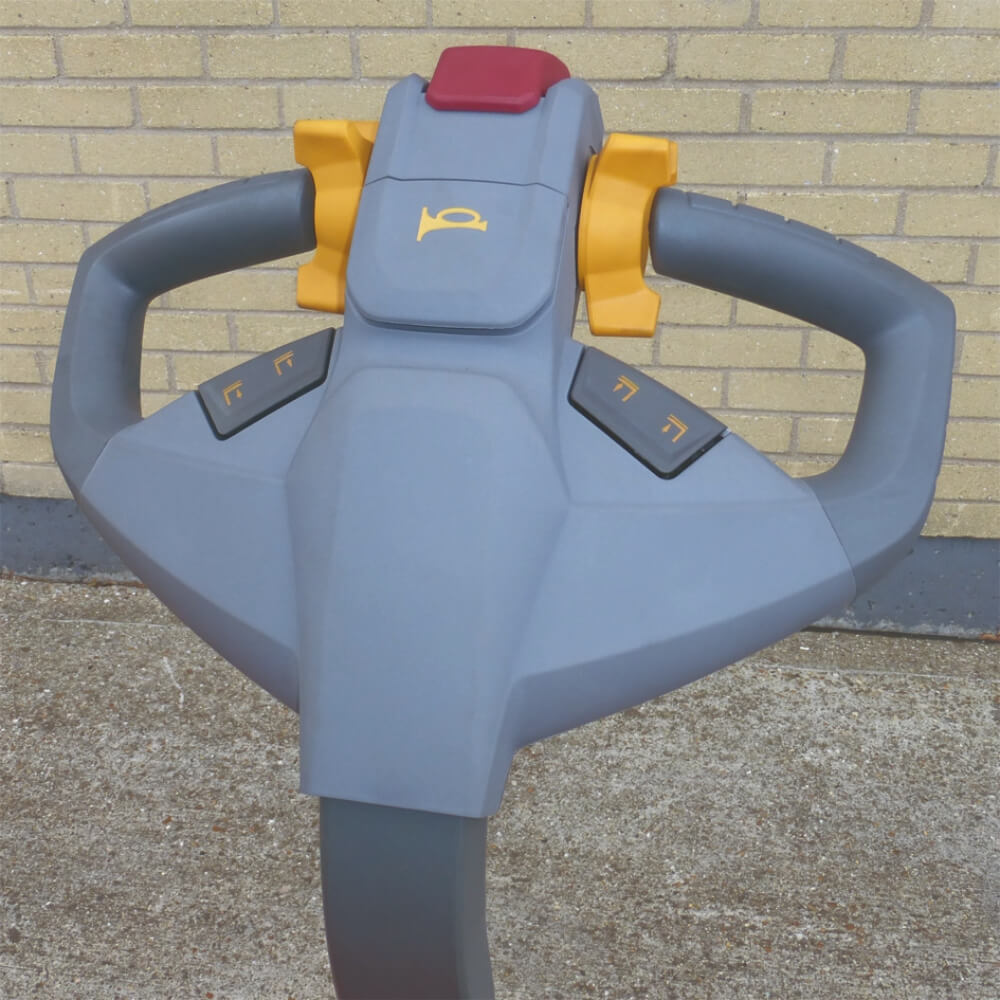

- Ergonomic control handle
- Turning radius: 1530mm
- Dual 12V / 71Ah batteries
- Onboard charger (240V standard; 110V optional)
- Charges via standard 230V / 13A socket
- CE certified
- 12-month warranty included
| Model | LESS.10.16 | LESS.10.25 | LESS.10.30 |
| Capacity | 1000kg | ||
| Load Centre | 600mm | ||
| Max. Lift Height | 1600mm | 2500mm | 3300mm |
| Fork Length | 1150mm | ||
| Width over Forks | Adjustable 200–800mm | ||
| Overall Length | 1786mm | ||
| Overall Width | Adjustable: 1410, 1240, 1140mm* | ||
| Straddle Gap | Adjustable: 1255, 1090, 995mm | ||
| Overall Closed Height | 2145mm | 1895mm | 2295mm |
| Mast Type | Single | Double | Double |
| Battery | 12V / 71Ah x 2 | ||
| Wheels | Polyurethane | ||
| Wheels Diameter | ø 195 / 100mm | ||
* The Overall Width is based on the adjustable straddle gap choice.
Lead Time: 1 week.
Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
