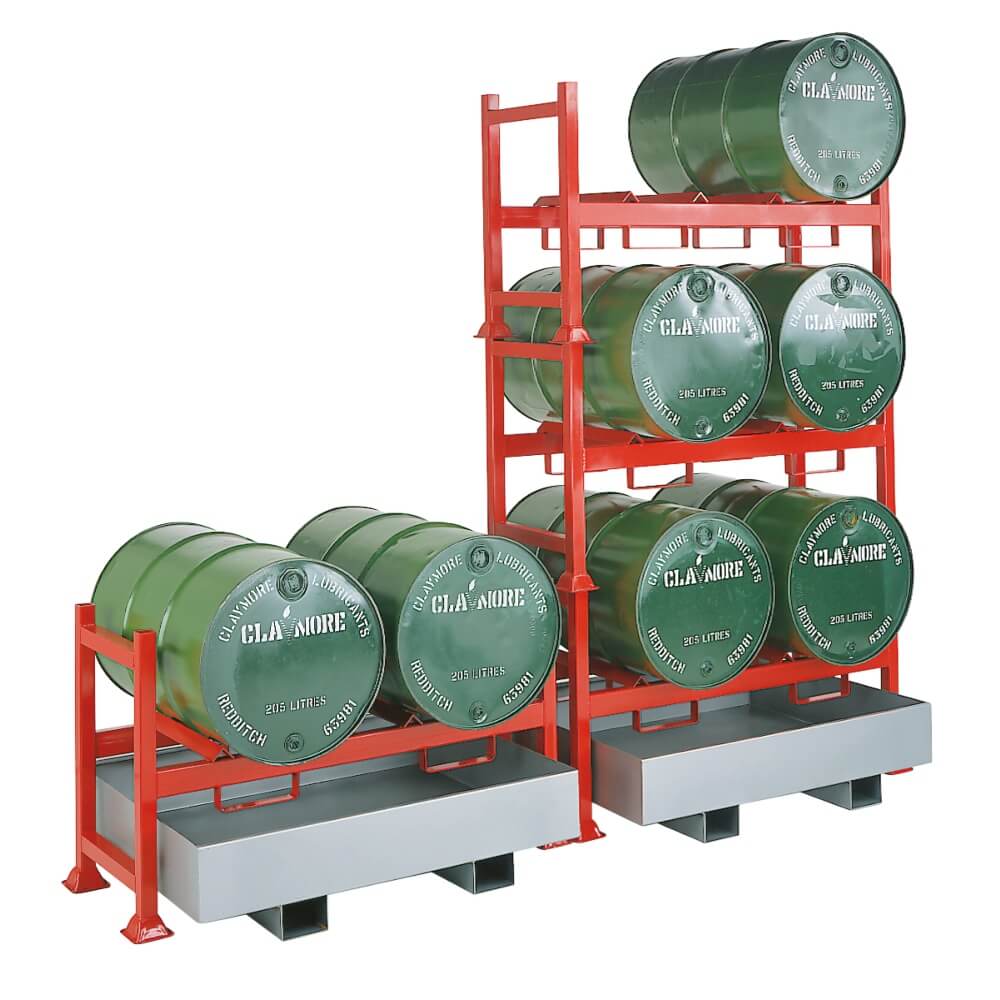

Drum Pallet Racking System

The Drum Pallet Racking System is a flexible and expandable storage solution designed for the safe handling and organised storage of 200/220 litre steel drums. Ideal for warehouses, industrial facilities, and hazardous liquid storage areas, the system combines robust construction with efficient drum management and integrated spill containment.

Supplied as a complete pack consisting of one Pallet Unit and one Sump Unit, the system provides a practical and space-saving storage arrangement for up to two steel drums per pallet level. Additional pallet units are available on request to expand storage capacity as required.

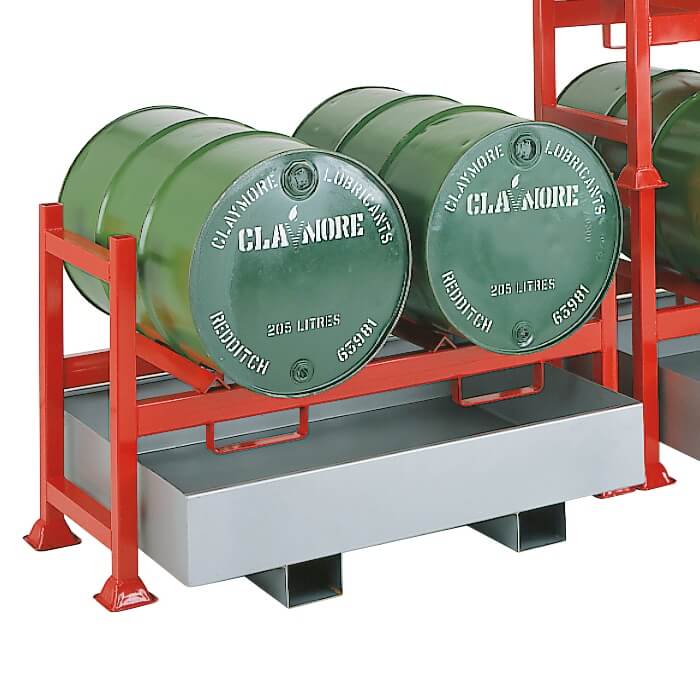

The Pallet Unit is manufactured from strong welded steel and designed for reliable long-term use in demanding industrial environments. Each unit is stackable up to three units high, maximising vertical storage space while maintaining stability and safety.

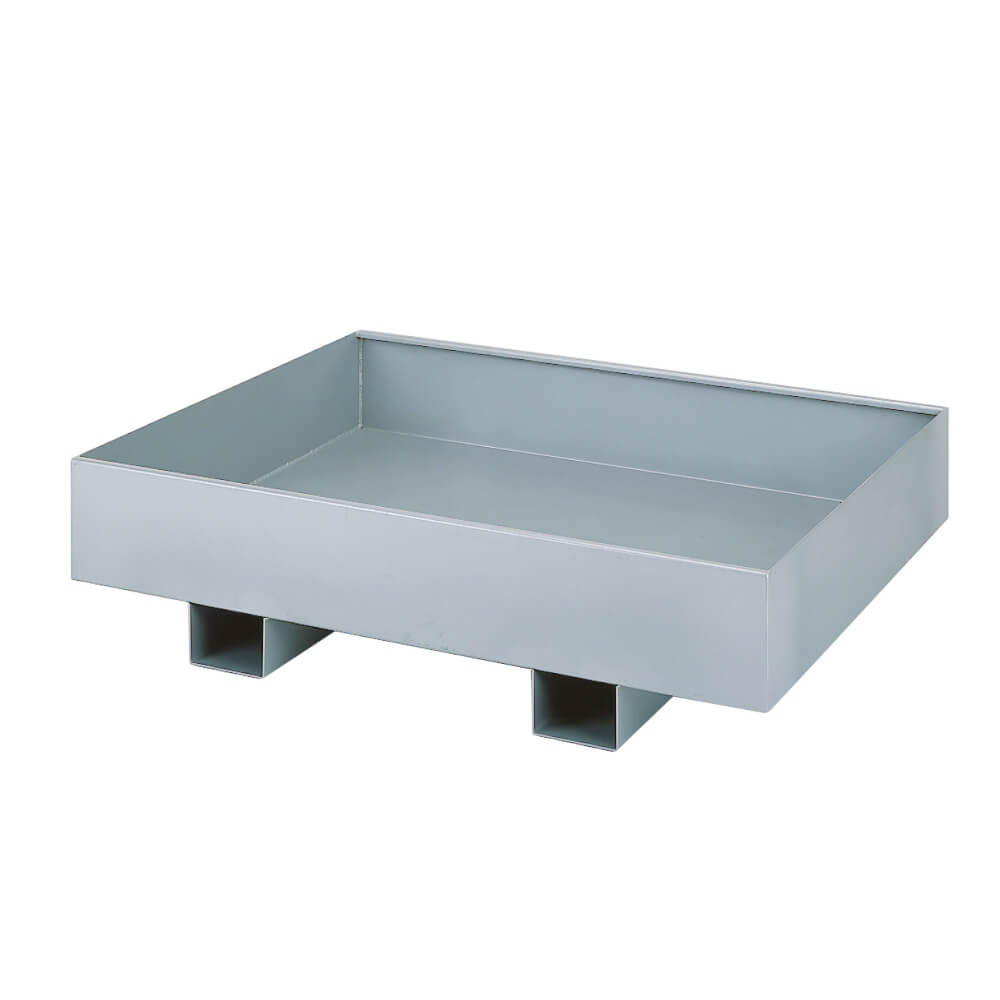

The Sump Unit is fabricated from 3mm sheet steel with fully welded seams and provides a generous 250-litre containment capacity to help manage spills and leaks safely. Integrated fork pockets allow easy transportation using forklifts or pallet trucks.

Pallet Unit Features:

• Suitable for storing 2 x 200/220 litre steel drums

• Strong welded steel construction

• Stackable design for efficient space utilisation

• Maximum stacking height: 3 units

• 127mm square pallet feet for stability

• Durable red epoxy finish

Sump Unit Features:

• 250-litre spill containment capacity

• Manufactured from 3mm sheet steel

• Fully welded seams for leak prevention

• 100mm ground clearance for easy handling

• Hard-wearing grey epoxy finish

• Fork pocket size: 240mm x 70mm (W x H)

• Maximum width over forks: 920mm

• Distance between fork pockets: 430mm

Benefits:

• Safe and organised storage for steel drums

• Expandable modular system to suit growing storage requirements

• Integrated spill containment improves environmental safety

• Heavy-duty steel construction ensures long service life

• Forklift-compatible design allows easy movement and positioning

• Ideal for warehouses, factories, and chemical storage applications

Please get in contact for additional pallet unit quotations.

Technical Specifications:

Lead Time: 6 weeks.

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
