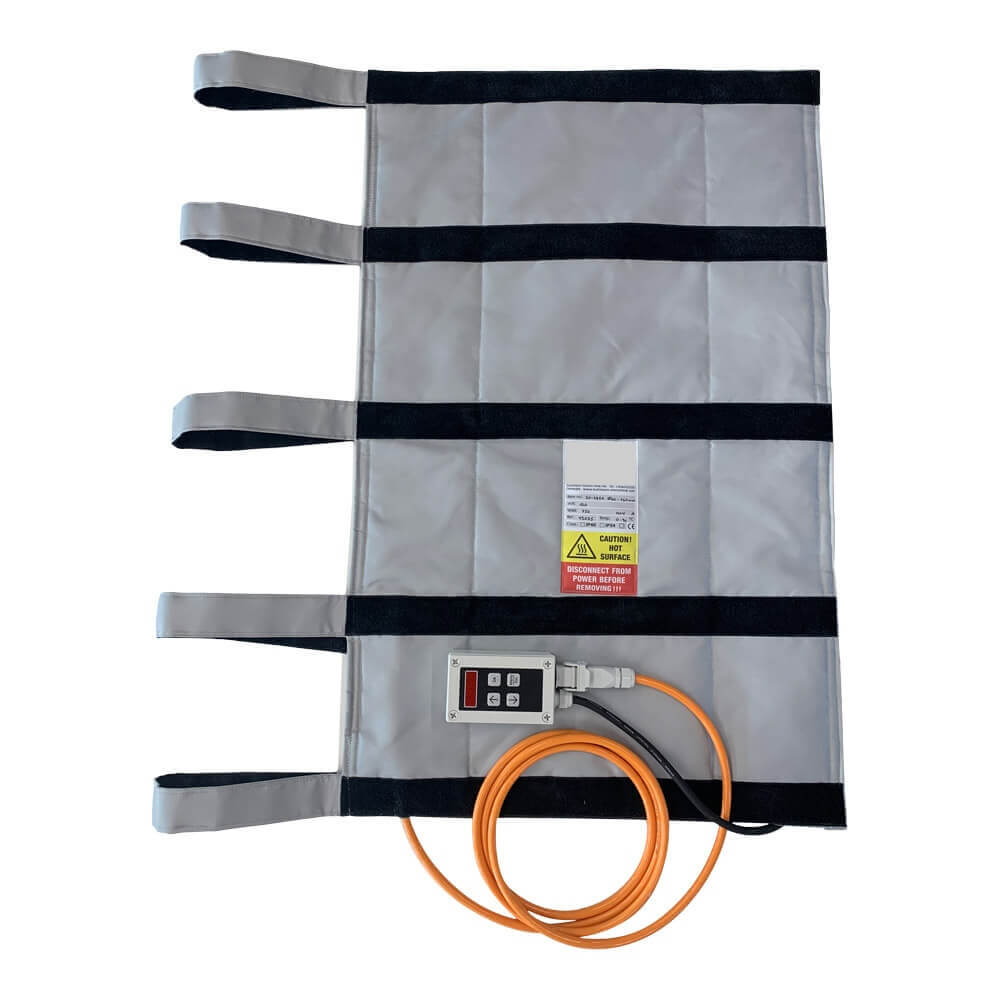

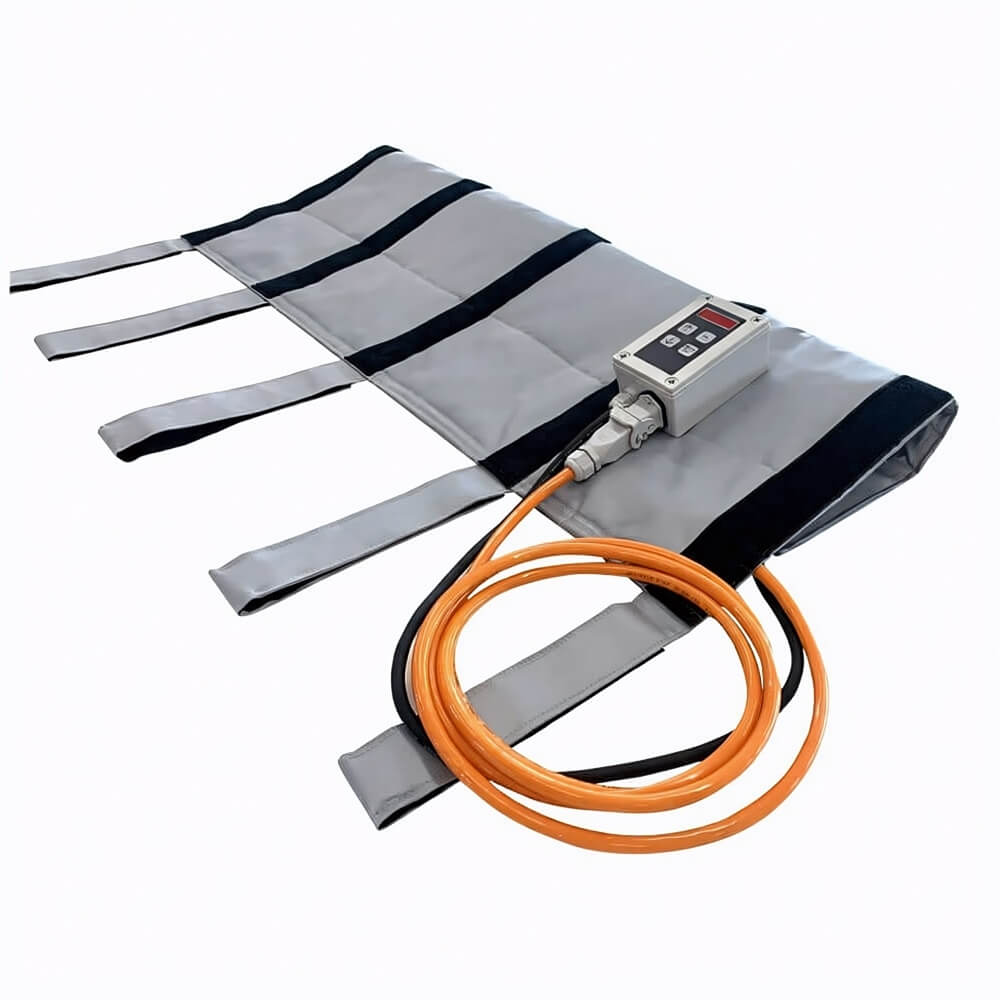

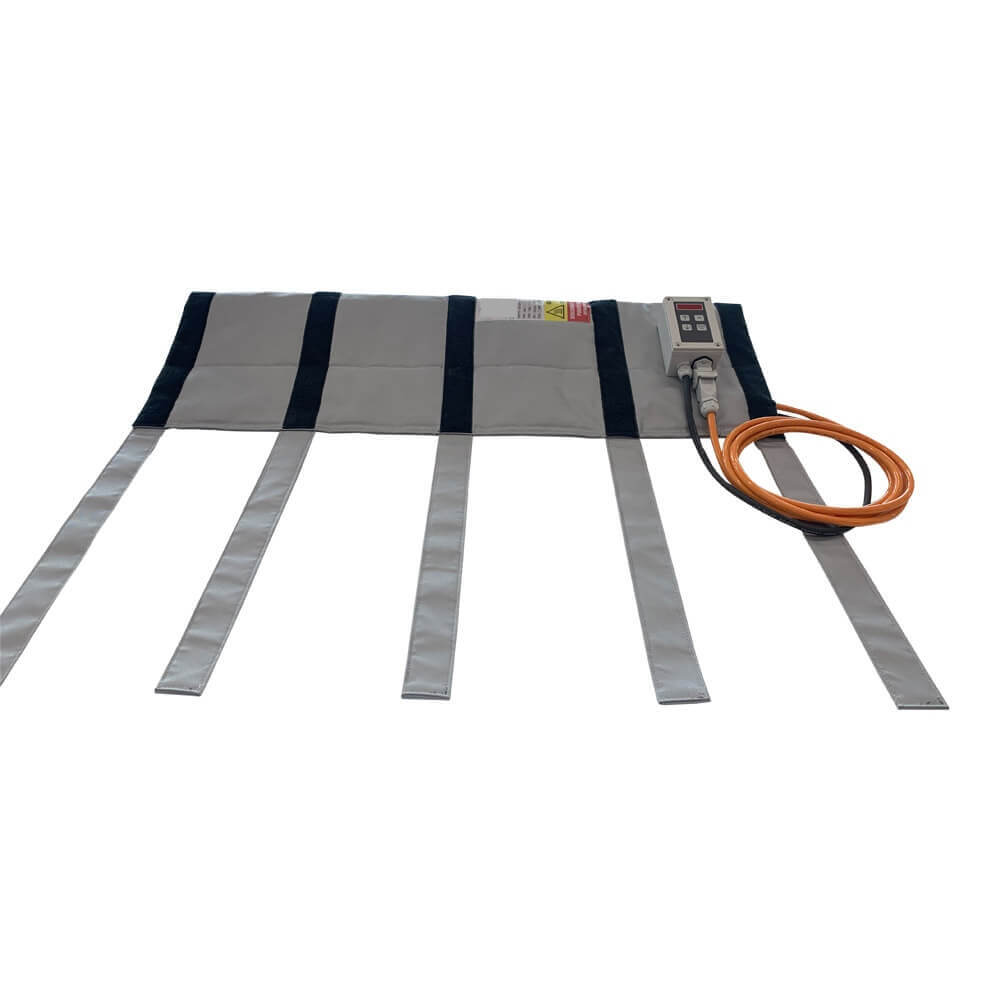

120V High Voltage Cable Heating Blankets 0-90ºC

Professional Heating Jackets for High Voltage Cable Straightening & Jointing

Our 120V High Voltage Cable Heating Blankets are specifically designed for the power transmission, utility and renewable energy industries, providing a safe, efficient and reliable solution for straightening, relaxing and conditioning high voltage cables before installation and jointing.

Suitable for both high voltage (HV) and extra high voltage (EHV) power cables, these specialist heating jackets deliver controlled, even heat to remove cable memory, increase flexibility and make cable handling significantly easier during installation. They are particularly effective when preparing cables for jointing, termination and the post-curing of epoxy joints.

Each heating blanket features an integrated PT100 temperature sensor, connected to a detachable digital temperature controller that provides precise temperature regulation and a clear digital temperature display. This ensures consistent heating performance whilst helping to protect valuable cables from excessive temperatures.

Manufactured from durable silicone-impregnated cloth with high-quality fibreglass insulation, these heating blankets are built to withstand demanding site conditions while delivering excellent thermal efficiency. A wide range of standard lengths is available, and multiple heating blankets can be combined to accommodate different cable diameters. Bespoke sizes can also be manufactured to suit specific project requirements.

Key Features

• Operates from a standard 120V power supply

• Temperature range up to 90°C

• Designed for high voltage and extra high voltage power cables

• Ideal for cable straightening, conditioning and relaxation

• Delivers uniform heat distribution for safe, controlled heating

• Durable silicone-impregnated outer material

• High-performance fibreglass insulation with 6mm insulation to minimise heat loss

• Resistance heating cable for dependable performance

• Integrated PT100 temperature sensor for accurate temperature monitoring

• Supplied with an adjustable digital temperature controller and digital temperature display

• Heating jacket lengths available up to 2 metres

• Adjustable securing straps for safe and secure installation

• Wide selection of standard sizes available from stock

• Bespoke sizes manufactured on request


Ideal Applications

The 120V High Voltage Cable Heating Blanket is ideal for a wide range of specialist cable installation and maintenance applications, including:

• High voltage cable straightening

• Extra high voltage cable straightening

• Cable relaxation and conditioning

• High voltage cable jointing

• Post-curing of epoxy joints

• Power transmission cable installation

• Renewable energy infrastructure projects

• Electrical utility maintenance

• Construction and civil engineering projects


Technical Specification

• Voltage: 120V

• Maximum Temperature: 90°C

• Outer Material: Silicone-impregnated cloth

• Insulation: Fibreglass

• Insulation Thickness: 6mm

• Heating Element: Resistance heating cable

• Temperature Monitoring: Integrated PT100 sensor

• Temperature Control: Adjustable digital controller with digital display

• Maximum Heating Jacket Length: Up to 2 metres

• Fixing Method: Adjustable securing straps

• Standard Sizes: Multiple sizes available from stock

• Custom Sizes: Available on request


Engineered for Reliable Cable Heating Performance

Our 120V High Voltage Cable Heating Blankets provide a professional solution for preparing high voltage cables before installation, jointing and maintenance.

Combining accurate temperature control, even heat distribution and robust construction, they help improve cable flexibility, simplify installation and ensure consistent, reliable results.

Trusted by contractors across the power distribution, utilities, renewable energy and construction sectors, these heating blankets are available in both standard and bespoke configurations to suit virtually any high voltage cable application.

Sizes:

PDFS:

  Heating Blanket - Installation & Operation PDF

  DigiTherm Digital Temperature Controller - Installation & Operation PDF

PLEASE NOTE:

The heating blanket will be delivered with a UK plug unless an alternative is otherwise requested.

Custom sizes also available please get in contact with further details.

Lead Time: 1-2 weeks.

Please get in contact if you're needing more than 2+ products for further discount and a more competitive quotation.
