SKU: ke_KW03

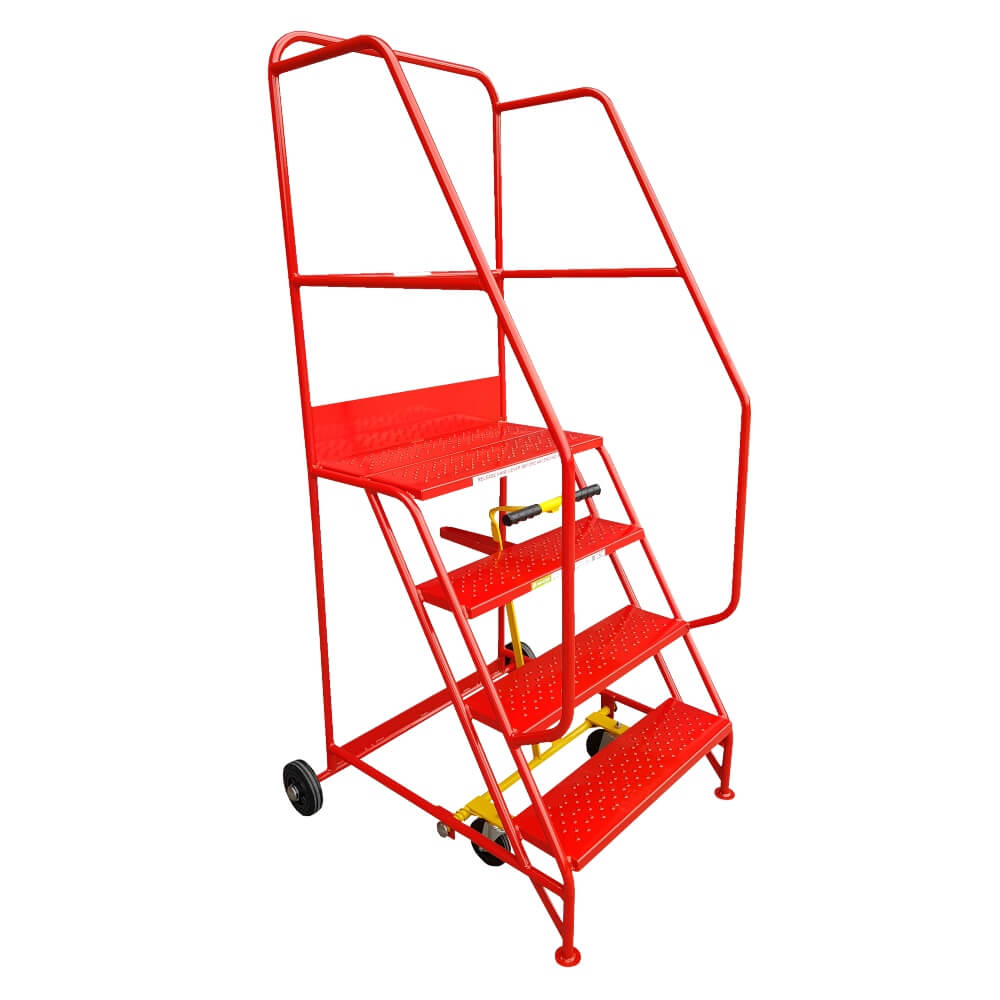

KW Extra Wide Mobile Safety Step

Treads

Product variants

Price On Request

All custom products need to be quoted for on a product by product basis. Please fill in the form below, or contact us on the below details.

Need Help? Our expert team are available to help with any presale or account questions.

Call: 0800 0418 650
Email: info@merlin-industrial.com
Monday-Thursday: 8am-5pm - Friday: 8am - 12pm

Delivery and Shipping

Please note our minimum order value is £50.00

Orders Under £300.00
£12.00 carriage charge on all orders

Orders Over £300.00
Carriage free of charge

We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.

We will confirm the lead time when we send your order confirmation via email.

Please call if you’re needing the items quickly.

Delivery to parts of Scotland, Northern Ireland and other Isles could incur an additional delivery charge. Please get in contact for further details.

Trade Account Options

We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.

Learn More About Trade Accounts

Description

The extra wide range has a large tread which is 700mm wide, giving not only heaps of room to walk up the stairs but gives an excellent feeling of stability on higher steps. Perfect for use on factory floors, in warehouses and for maintenance. It comes with many colours, tread types and exit options to choose from.

Platform height between 500 - 3750 mm
Tread size 700 (w) x 200 (D) mm
Platform size 700 (w) x 400 (D) mm
SWL 300kg

This range comes fully welded and ready to use.

Tread Type

Come as standard with a Punched Metal tread. However, both PVC Covered and Rubber Covered treads are also available at no additional cost. Just let us know when ordering.

Brake Type

KW03 = Side Brake
KW04-KW10 = Central Brake

Dimensions:

Code	Treads	Platform Height	Overall Dimensions (HxWxL)

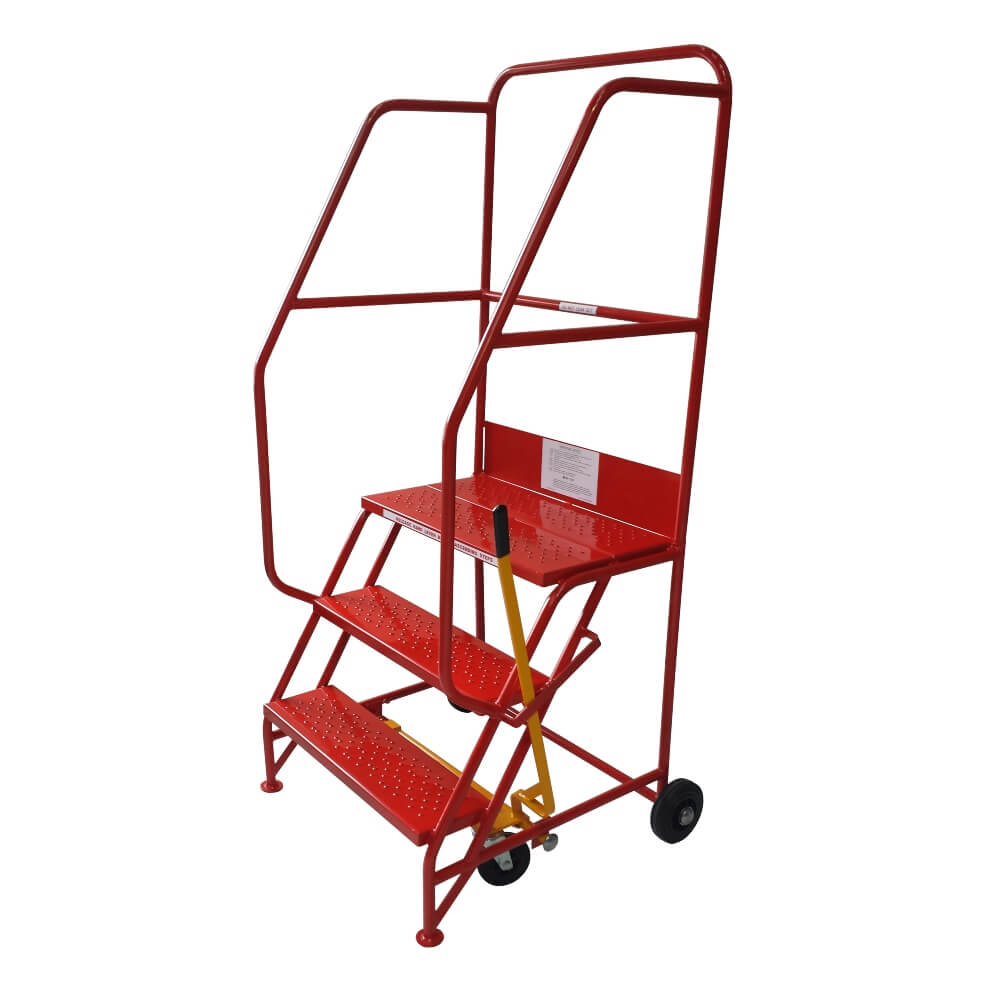

KW03	3	750mm	1750 x 995 x 820mm
KW04	4	1000mm	2000 x 995 x 1040mm

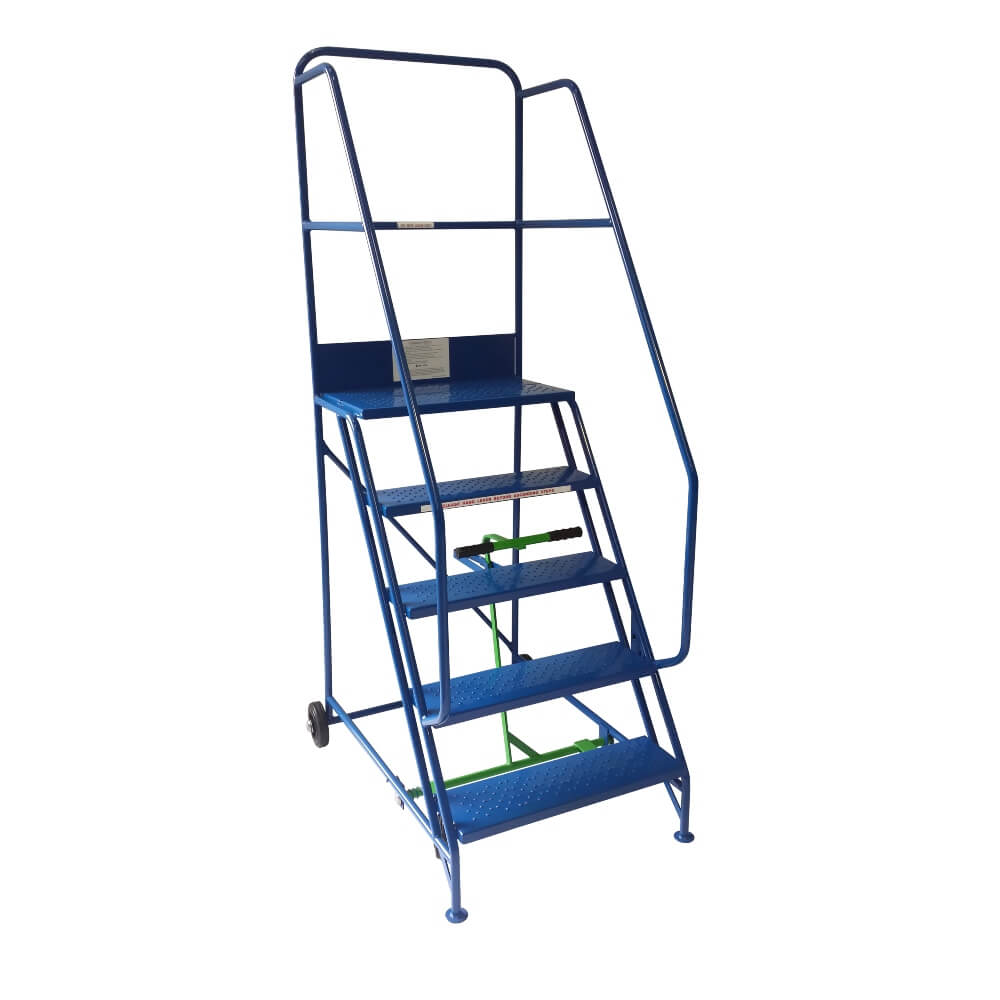

KW05	5	1250mm	2250 x 995 x 1270mm

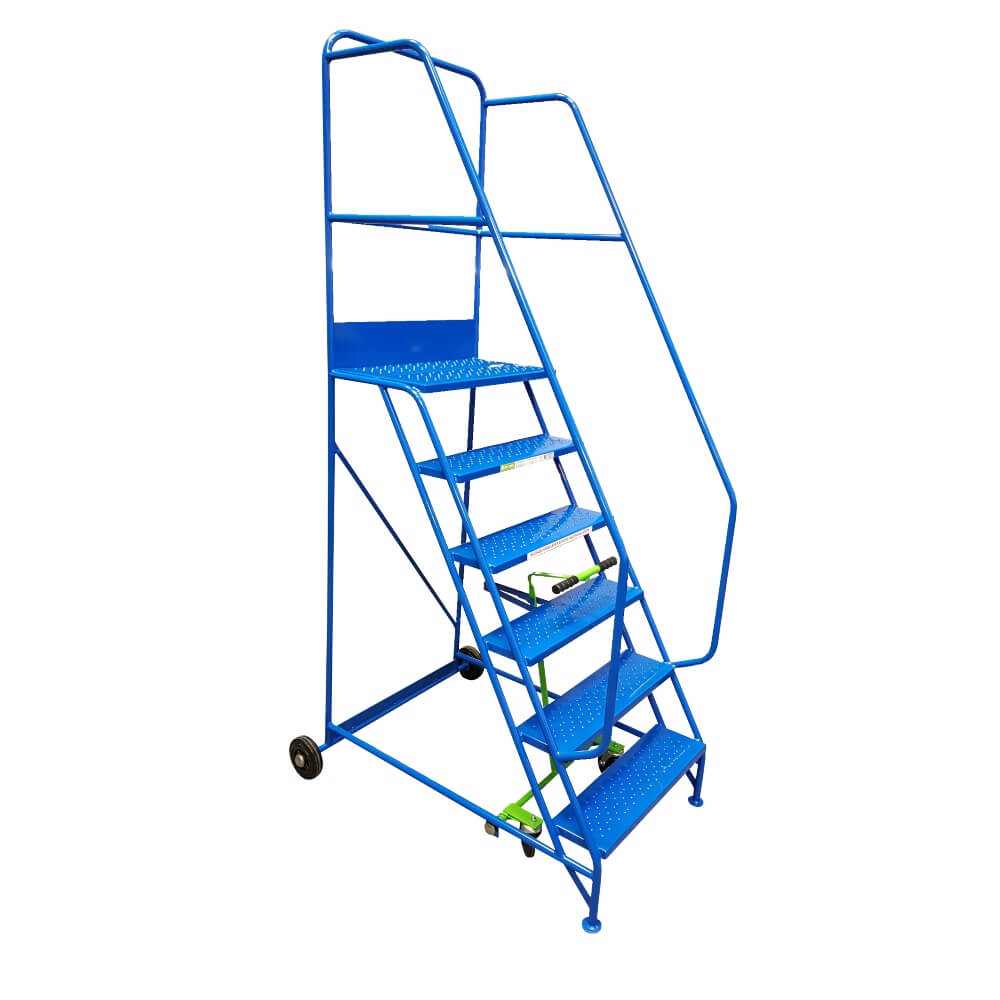

KW06	6	1500mm	2500 x 995 x 1360mm

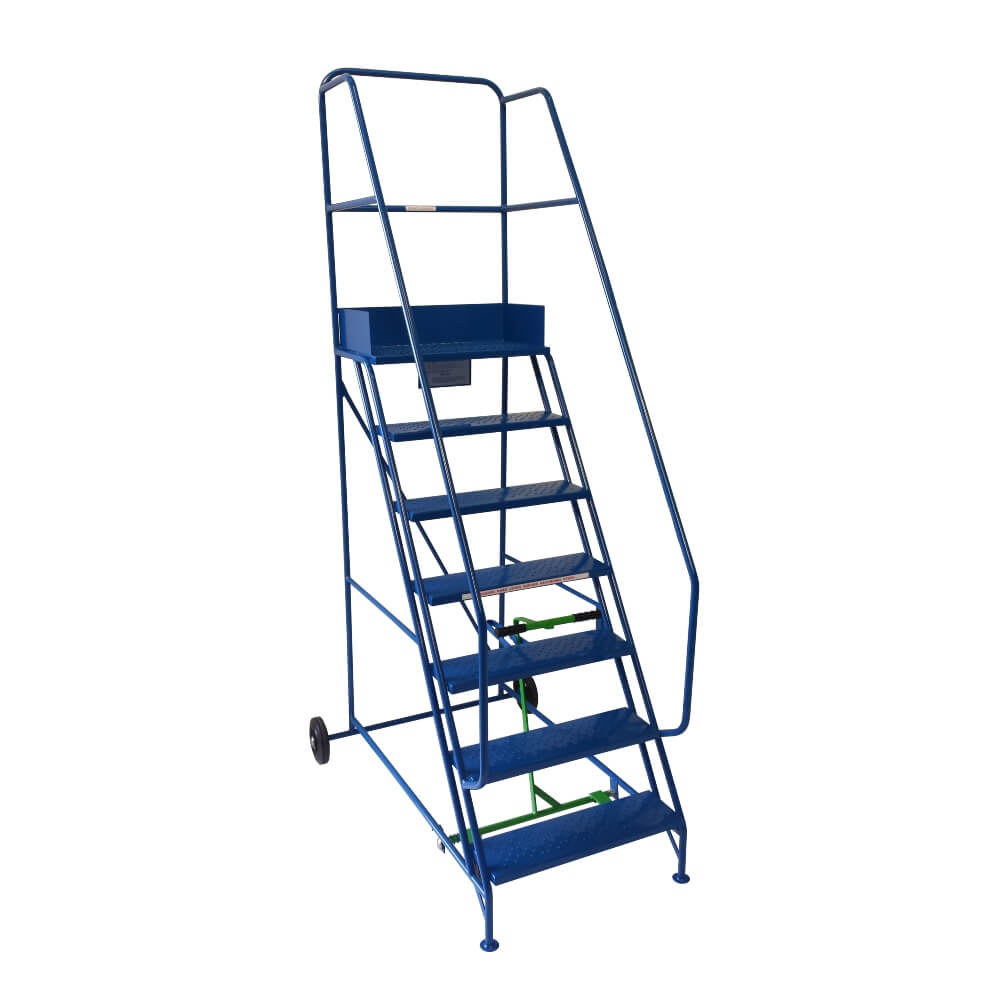

KW07	7	1750mm	2750 x 995 x 1450mm
KW08	8	2000mm	3000 x 995 x 1575mm
KW09	9	2250mm	3250 x 995 x 1730mm

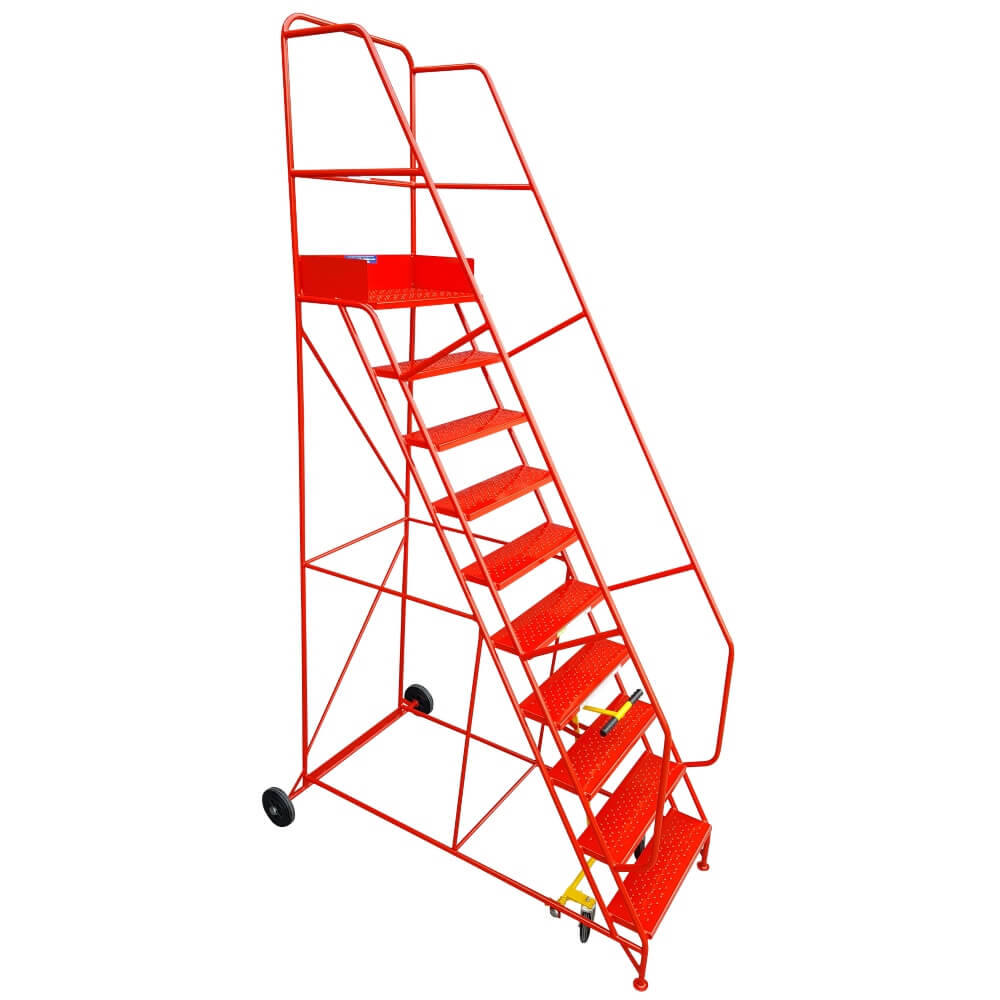

KW10	10	2500mm	3500 x 1150 x 1905mm

Prices include delivery to Zone 1 - England and Wales. If delivery is to outside this area, please email in with the delivery postcode and we can raise a quotation for you.

Additional Information

Working Height - This is shown as a general guide between waist height and just above the shoulders of the average person, approximately 750mm range.

Overall Width - The main framework of the step is 750mm wide; the overall width shown is taken at the widest point, the axle, at the rear of the step.

Platform Size - 700mm x 400mm deep - this can be extended.

Kick Plate - All sizes in this range have rear toe plate, with 7-15 treads having toe plate to all three sides of the platform.

Packing Information - When your step arrives with you, it will be fully assembled. It will have a small amount of foam protection on the top pulpit rail.

Lead Time: 10 weeks.

Please get in contact with the quantity needed, the product code and any additional extras that you require, along with the delivery postcode for a competitive quotation and lead time.
