SKU: ke_KTD05

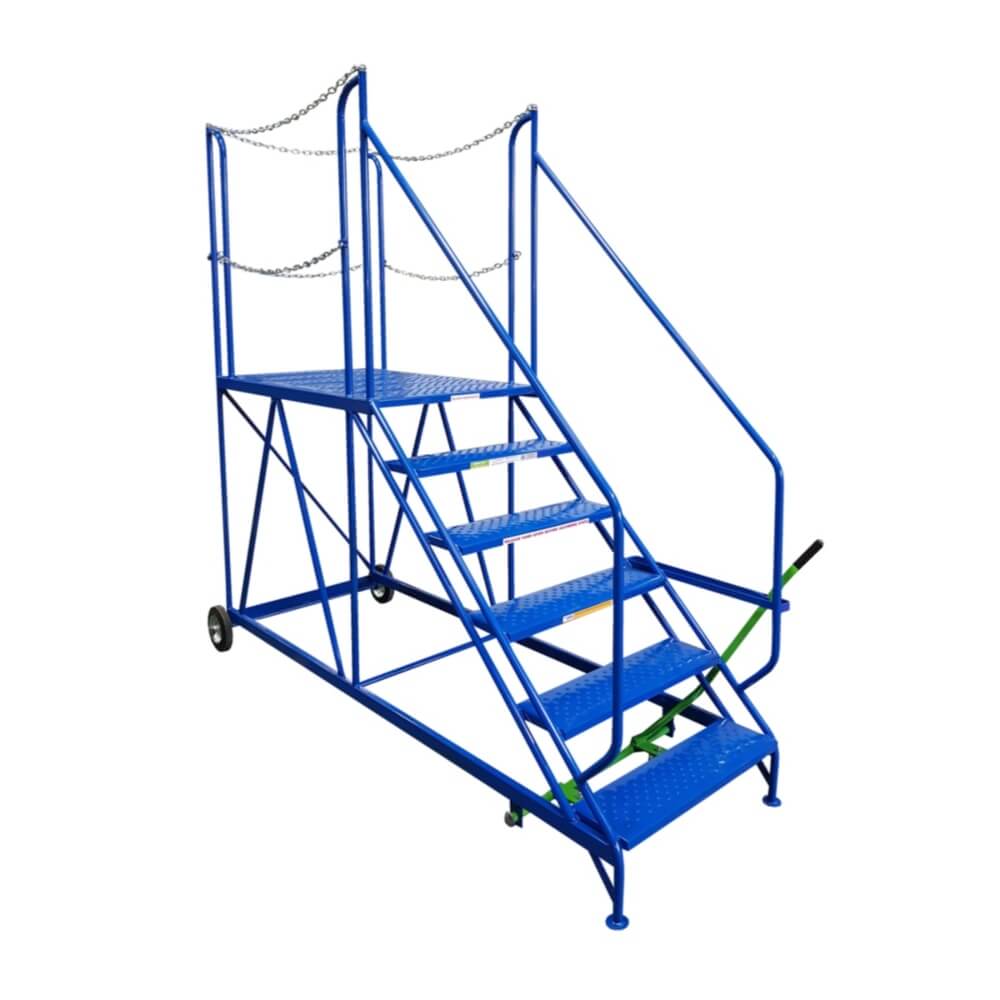

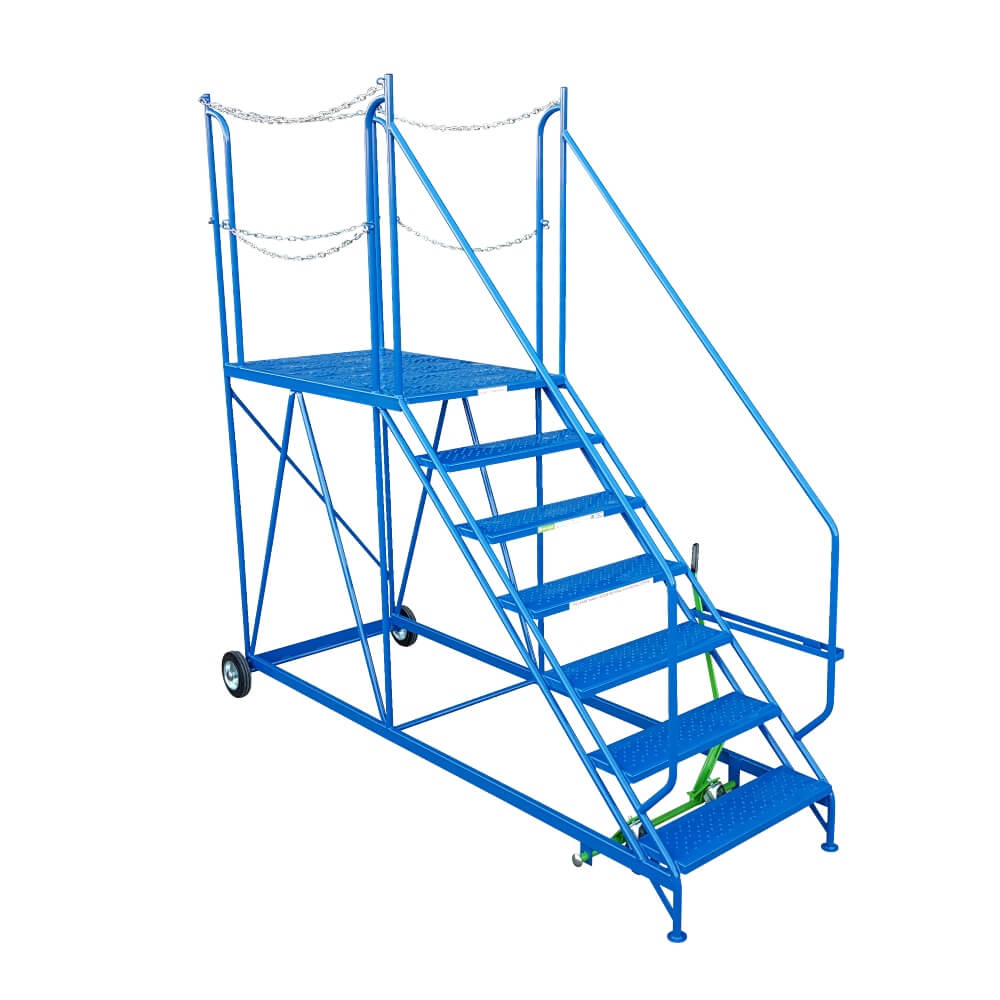

KTD Truck Dock Mobile Safety Step

Treads

Product variants

Price On Request

All custom products need to be quoted for on a product by product basis. Please fill in the form below, or contact us on the below details.

Need Help? Our expert team are available to help with any presale or account questions.

Call: 0800 0418 650
Email: info@merlin-industrial.com
Monday-Thursday: 8am-5pm - Friday: 8am - 12pm

Delivery and Shipping

Please note our minimum order value is £50.00

Orders Under £300.00
£12.00 carriage charge on all orders

Orders Over £300.00
Carriage free of charge

We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.

We will confirm the lead time when we send your order confirmation via email.

Please call if you’re needing the items quickly.

Delivery to parts of Scotland, Northern Ireland and other Isles could incur an additional delivery charge. Please get in contact for further details.

Trade Account Options

We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.

Learn More About Trade Accounts

Description

This Range is manufactured with a 45-degree angle of accent, this means that the user is able to descend the steps facing forwards safely. It comes with an extra-large platform and three side exit chains as standard. Very popular with customers loading / unloading vehicles. It comes with many colours, tread types and exit options to choose from.

Platform height between 1000 - 1800 mm
Tread size 700 (w) x 200 (D) mm
Platform size 700 (w) x 1200 (D) mm
SWL 500kg

This range comes fully welded and ready to use.

Tread Type

Come as standard with a Punched Metal tread, however both PVC Covered and Rubber Covered treads are also available at no additional cost. Just let us know when ordering.

Brake Type

KTD05-KTD09 = Side brake

Dimensions:

Code	Treads	Platform Height	Overall Dimensions
KTD05	5	1000mm	2000 x 995 x 2100mm (HxWxL)
KTD06	6	1200mm	2200 x 995 x 2300mm (HxWxL)
KTD07	7	1400mm	2400 x 995 x 2500mm (HxWxL)
KTD08	8	1600mm	2600 x 1080 x 2700mm (HxWxL)
KTD09	9	1800mm	2800 x 1080 x 2900mm (HxWxL)

Prices include delivery to Zone 1 - England and Wales. If delivery is to outside this area, please email in with the delivery postcode and we can raise a quotation for you.

Additional Information

Working Height - This is shown as a general guide between waist height and just above the shoulders of the average person, approximately 750mm range.

Overall Width - The main framework of this range is 750mm wide, the overall width shown is taken at the widest point.

Platform Size - 700mm x 1200mm deep - this can be extended.

Kick Plate - This range comes with NO toe plate to the working platform as standard.

Packing Information - This product will arrive fully assembled and ready to use. You should however remove the advice note and store safely, prior to use.

Lead Time: 10 weeks.

Please get in contact with the quantity needed, the product code and any additional extras that you require, along with the delivery postcode for a competitive quotation and lead time.
