Description

The narrow aisle pro range is a very popular option where you have very little space available to you. A great option for use in archives, warehouses between aisle racking and office environments. It comes with many colour, tread types and exit options to choose from.

  • Platform height between 500 - 2000 mm
  • Tread size 450 (w) x 200 (D) mm
  • Platform size 450 (w) x 400 (D) mm

This range comes fully welded and ready to use.

Tread Type

Come as standard with a Punched Metal tread. However both PVC Covered and Rubber Covered treads are also available at no additional cost. Just let us know when ordering.

Dimensions:

Code Treads Platform Height Working Height Overall Dimensions Weight SWL Brake Type
KNA02 2 500mm 1500-2250mm 1500 x 590 x 735mm (HxWxL) 11kg 300kg Plunger Castors

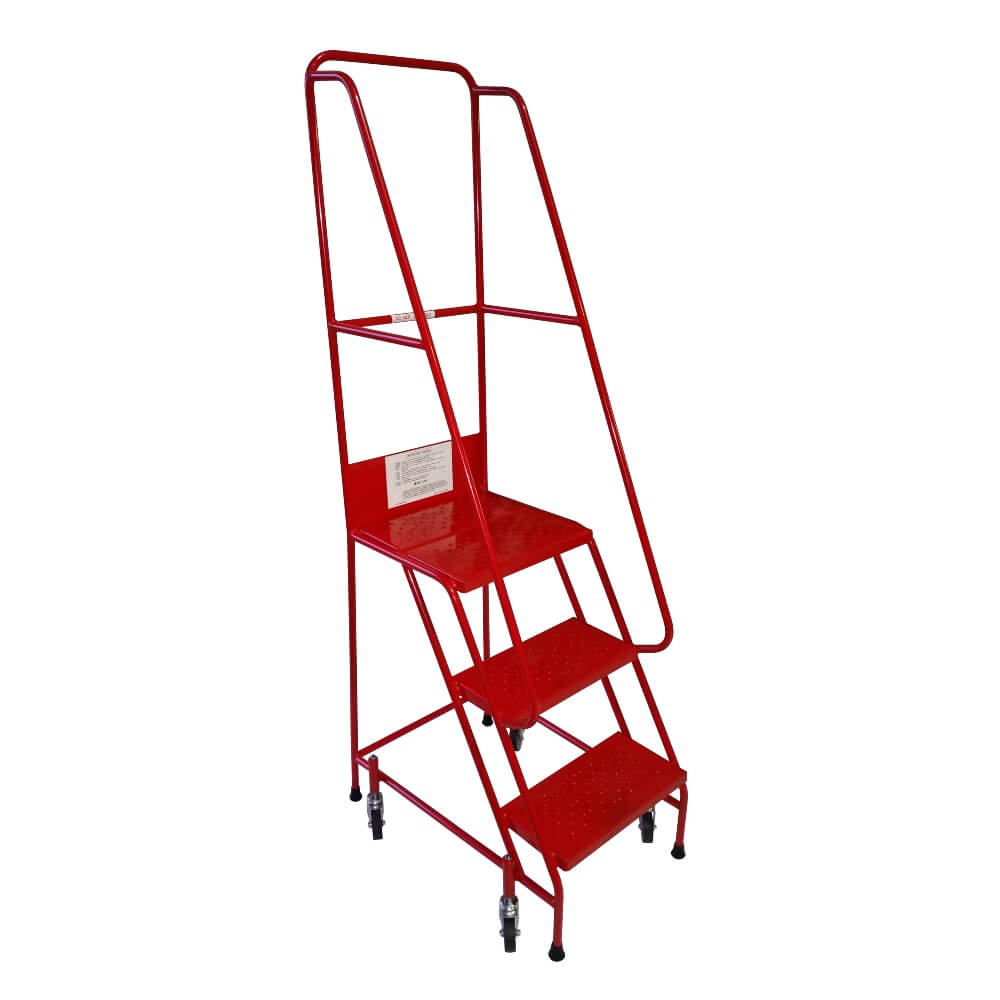

KNA03 3 750mm 1750-2500mm 1750 x 590 x 735mm (HxWxL) 19kg 300kg Plunger Castors

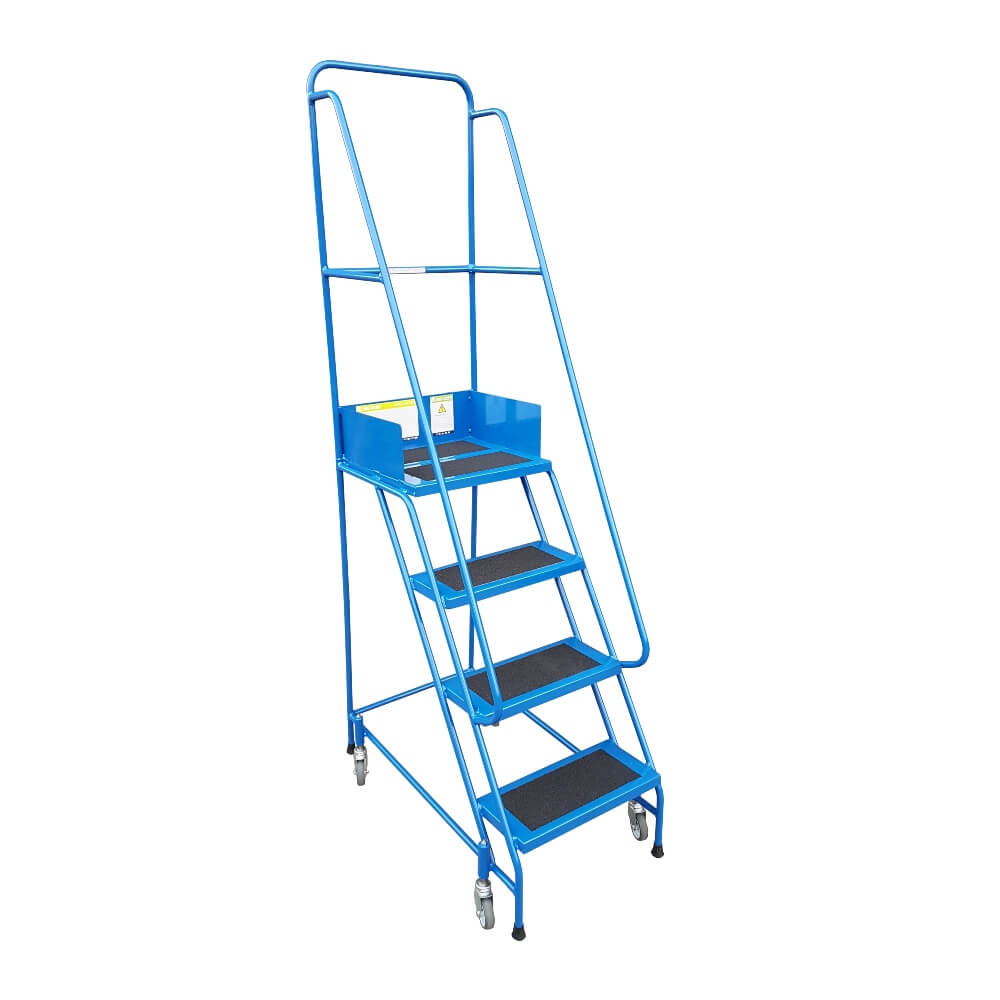

KNA04 4 1000mm 2000-2750mm 2000 x 590 x 920mm (HxWxL) 27kg 300kg Plunger Castors

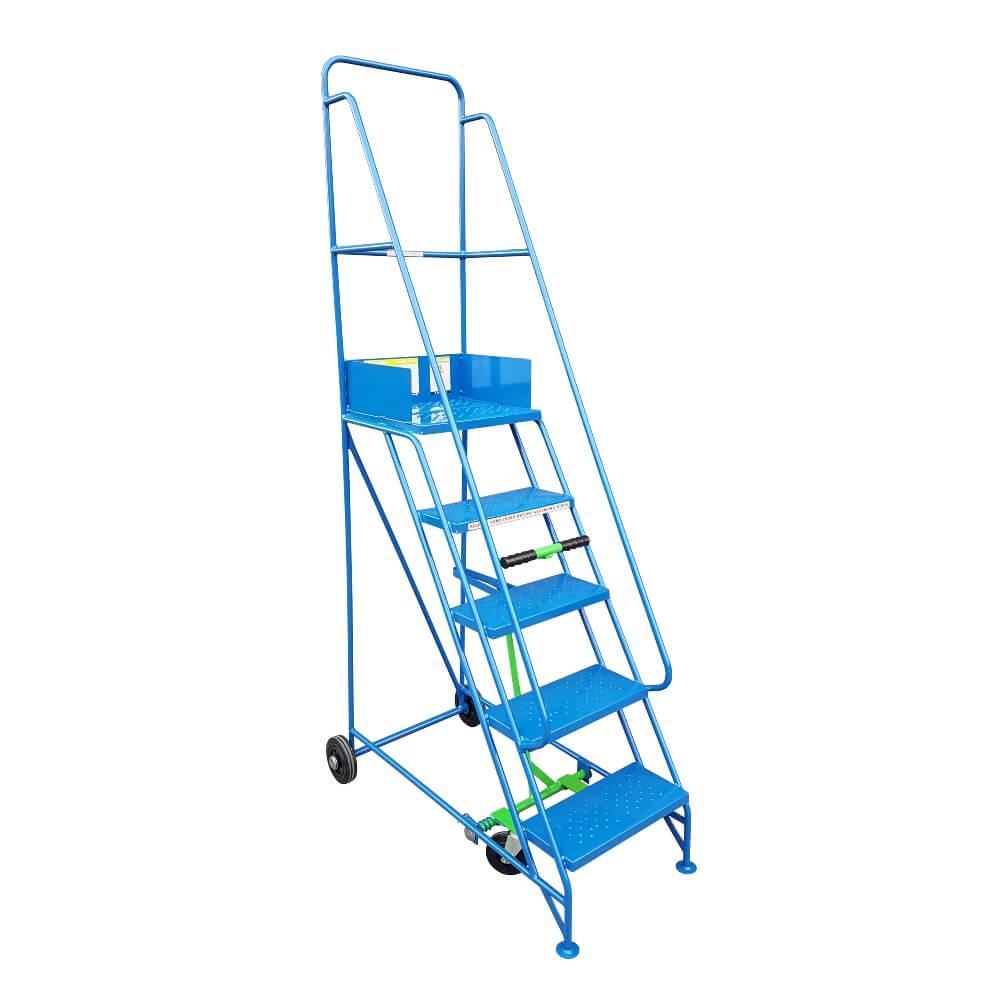

KNA05 5 1250mm 2250-3000mm 2250 x 630 x 1150mm (HxWxL) 36kg 300kg Central Brake

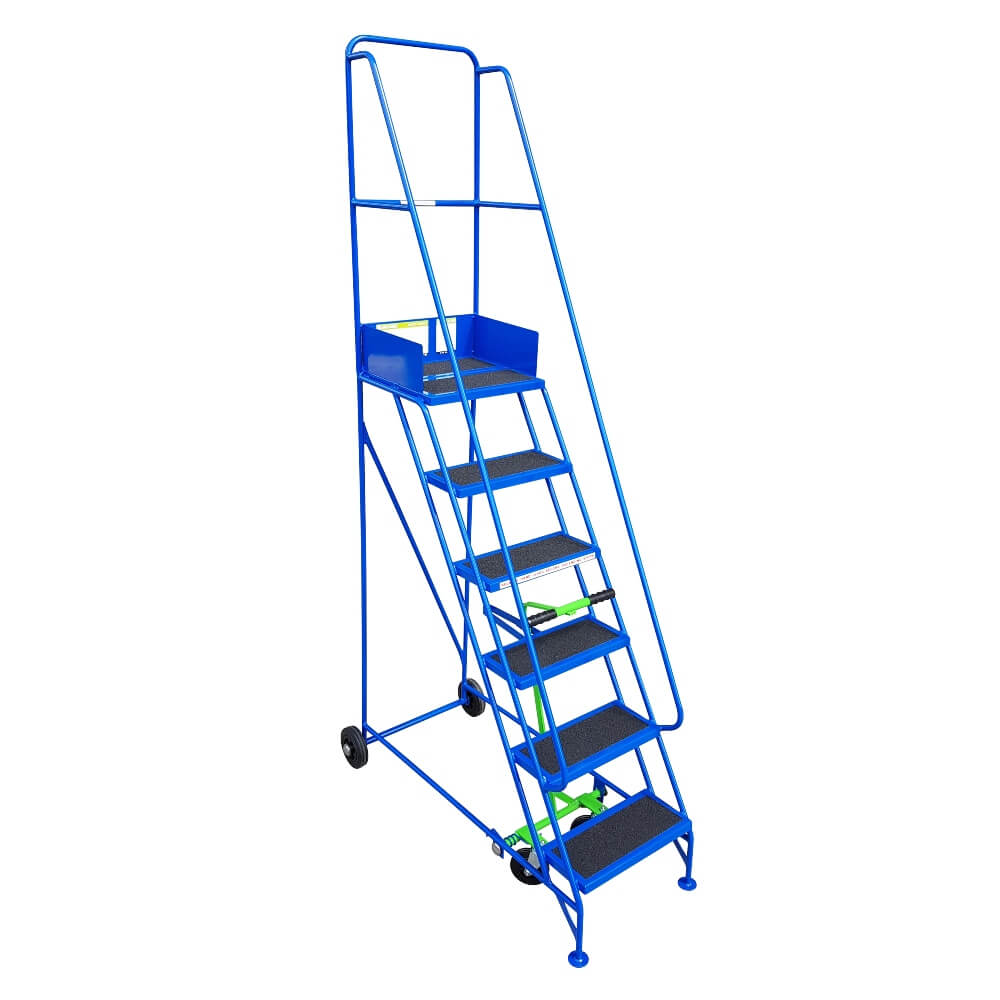

KNA06 6 1500mm 2500-3250mm 2500 x 630 x 1360mm (HxWxL) 50kg 300kg Central Brake

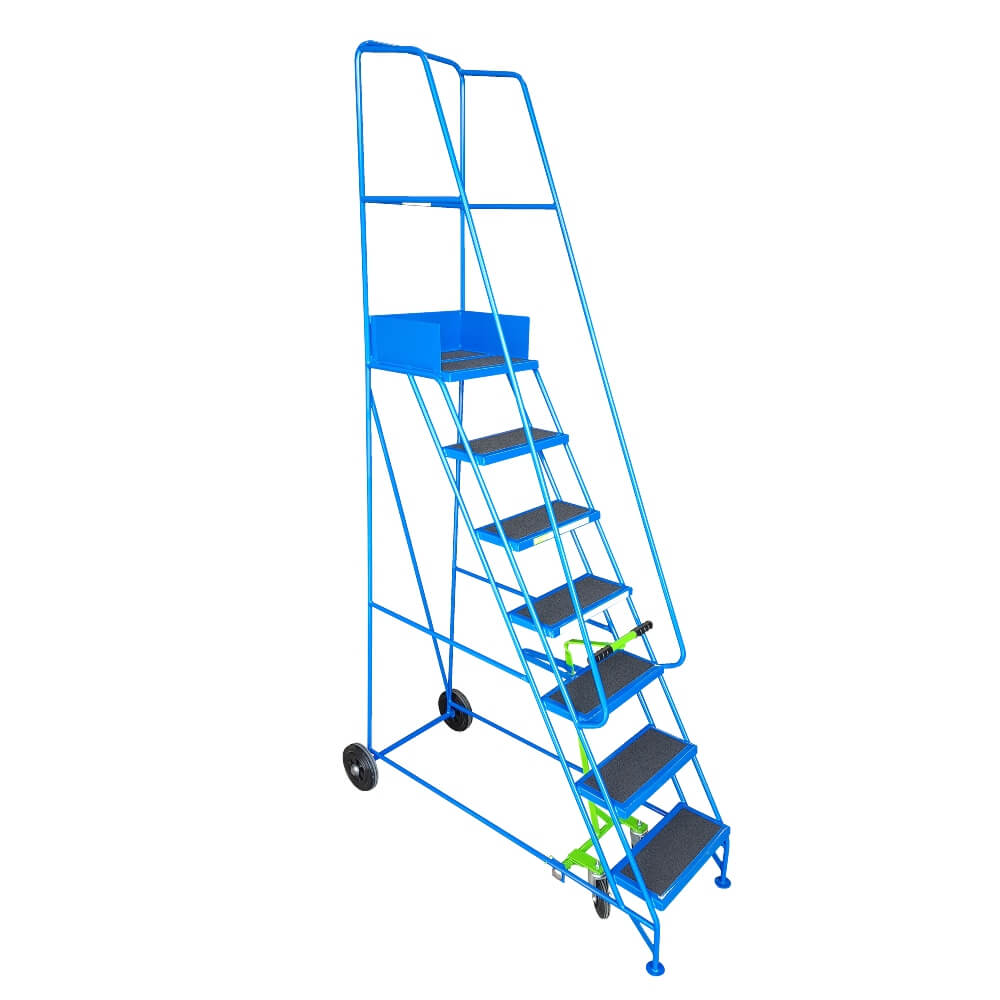

KNA07 7 1750mm 2750-3500mm 2750 x 630 x 1510mm (HxWxL) 51kg 300kg Central Brake

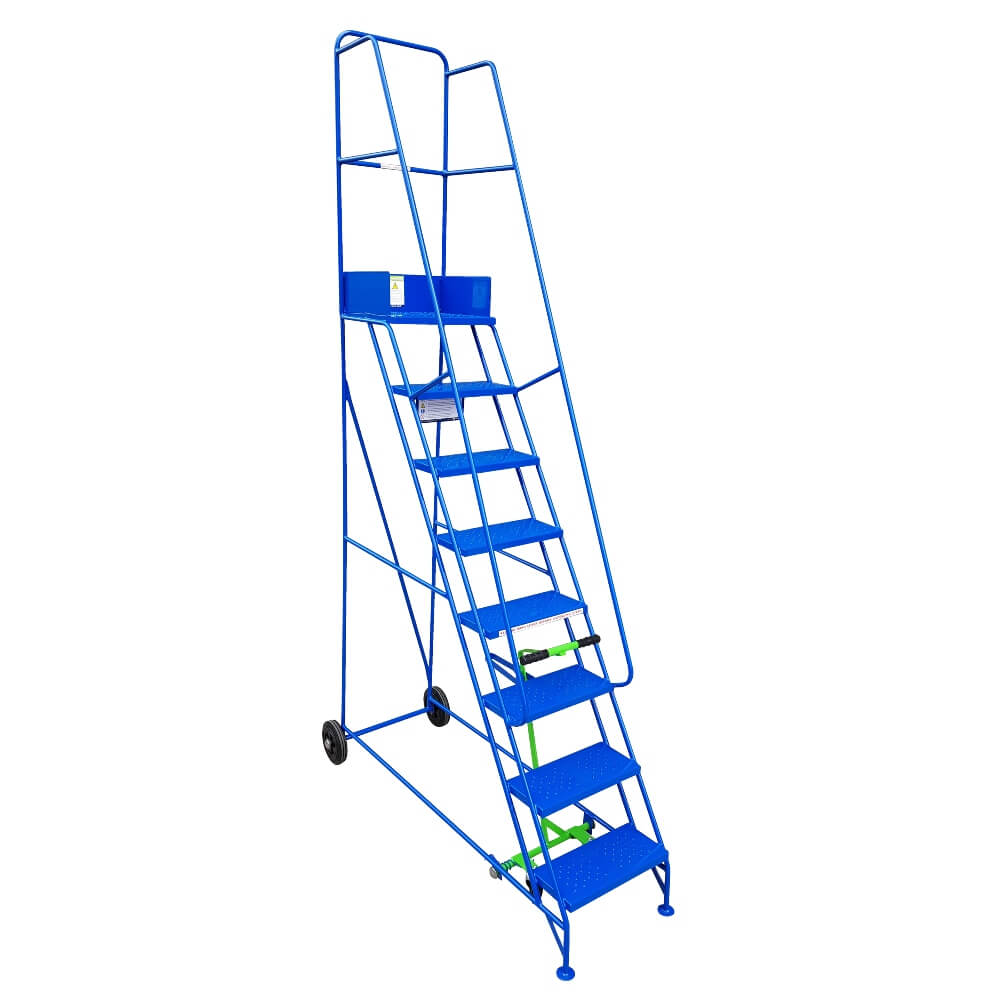

KNA08 8 2000mm 3000-3750mm 3000 x 630 x 1580mm (HxWxL) 54kg 300kg Central Brake

Prices include delivery to Zone 1 - England and Wales. If delivery is to outside this area please email in with the delivery postcode and we can raise a quotation for you.

Additional Information

Working Height - This is shown as a general guide between waist height and just above the shoulders of the average person, approximately 750mm range.

Overall Width – The main framework of the step is 500mm wide; the overall width shown is taken at the widest point, the axle, at the rear of the step.

Platform Size – 450mm x 400mm deep - this can be extended.

Kick Plate - All sizes in this range have rear toe plate, with 7-8 treads having toe plate to all three sides of the platform.

Packing Information – When your step arrives with you, it will be fully assembled. It will have a small amount of foam protection on the top pulpit rail.

Lead Time: 8 weeks.
