SKU: ke_KHD05

KHD Heavy Duty Industrial Mobile Safety Step

£487.88

All prices are excluding VAT
Total Minimum Order Value: £50

Need Help? Our expert team are available to help with any presale or account questions.

Call: 0800 0418 650
Email: info@merlin-industrial.com
Mon - Friday: 9am - 5pm

Delivery and Shipping

Please note our minimum order value is £50.00

Orders Under £300.00
£12.00 carriage charge on all orders

Orders Over £300.00
Carriage free of charge

We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.

We will confirm the lead time when we send your order confirmation via email.

Please call if you’re needing the items quickly.

Trade Account Options

We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.

Learn More About Trade Accounts

Description

When we say HEAVY DUTY, we mean HEAVY DUTY! Whilst most other Heavy Duty products on the market only hold between 120 - 150kg, we've gone all out to bring you a product which has a SWL of 500kg! This range is manufactured from heavy duty tube and box section, complete with heavy duty steel centred wheels. It has a larger platform than normal and wide treads giving you heaps of room to move around comfortably. Perfect for use on factory floors, in warehouses and for maintenance. It comes with many colour, tread types and exit options to choose from.

  • Platform height between 1250 - 3750 mm
  • Tread size 700 (w) x 200 (D) mm
  • Platform size 700 (w) x 600 (D) mm

This range comes fully welded and ready to use.

Tread Type

Come as standard with a Punched Metal tread. However both PVC Covered and Rubber Covered treads are also available at no additional cost. Just let us know when ordering.

Dimensions:

Code Treads Platform Height Working Height Overall Dimensions Weight SWL Brake Type

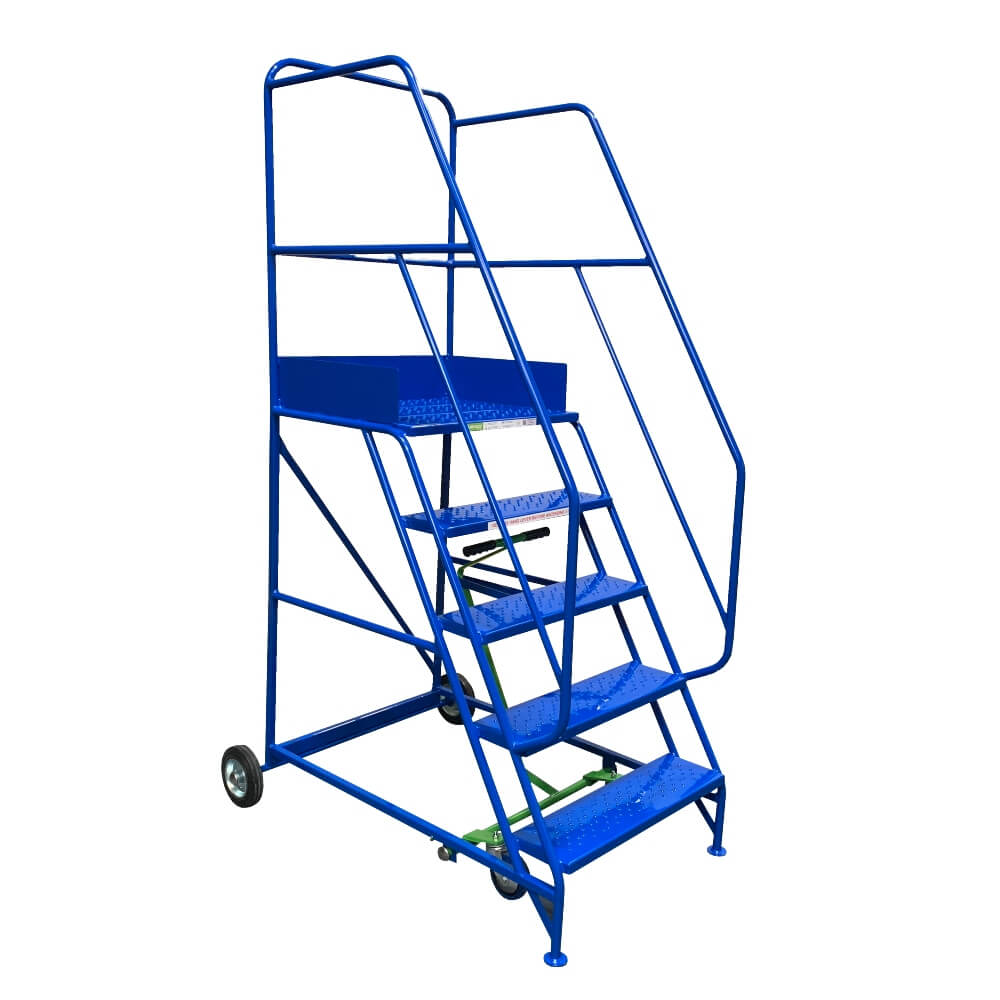

KHD05 5 1250mm 2250-3000mm 2250 x 995 x 1470mm (HxWxL) 90kg 500kg Central Brake
KHD06 6 1500mm 2500-3250mm 2500 x 995 x 1560mm (HxWxL) 98kg 500kg Central Brake
KHD07 7 1750mm 2750-3500mm 2750 x 995 x 1650mm (HxWxL) 112kg 500kg Central Brake

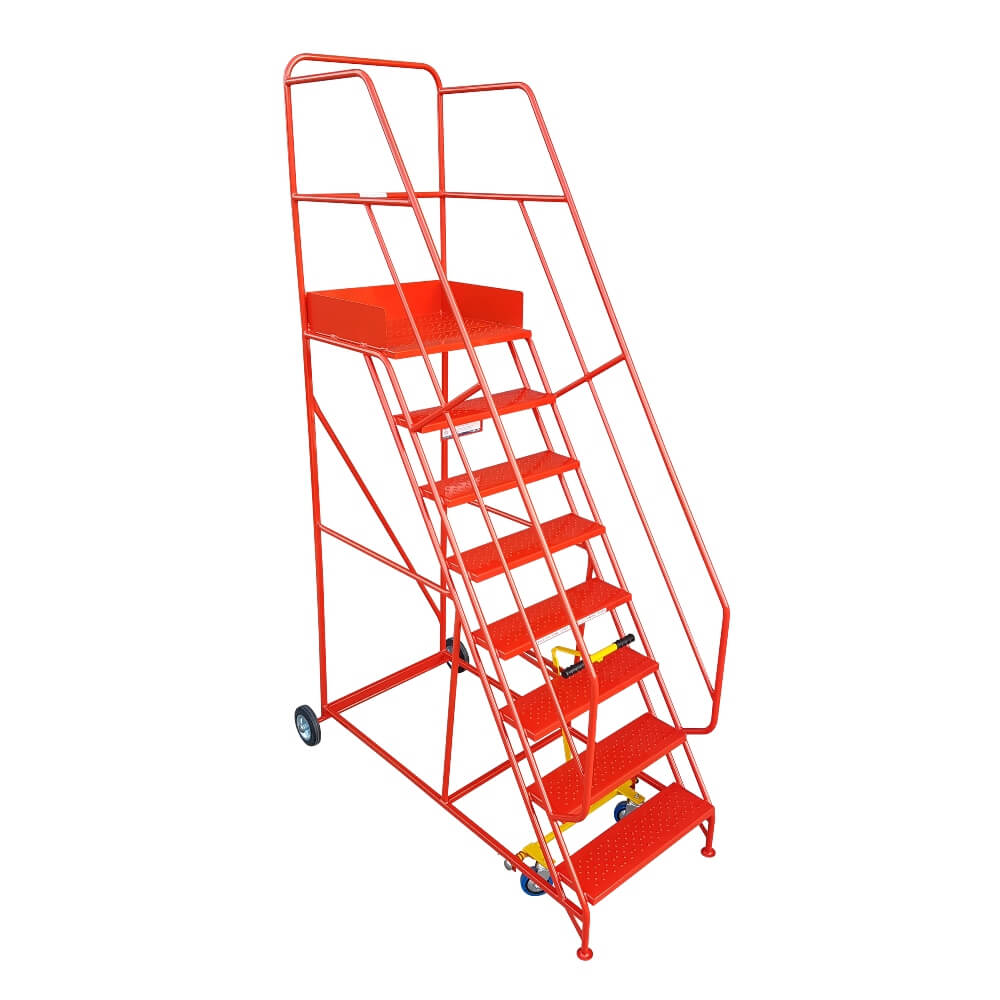

KHD08 8 2000mm 3000-3750mm 3000 x 995 x 1775mm (HxWxL) 118kg 500kg Central Brake

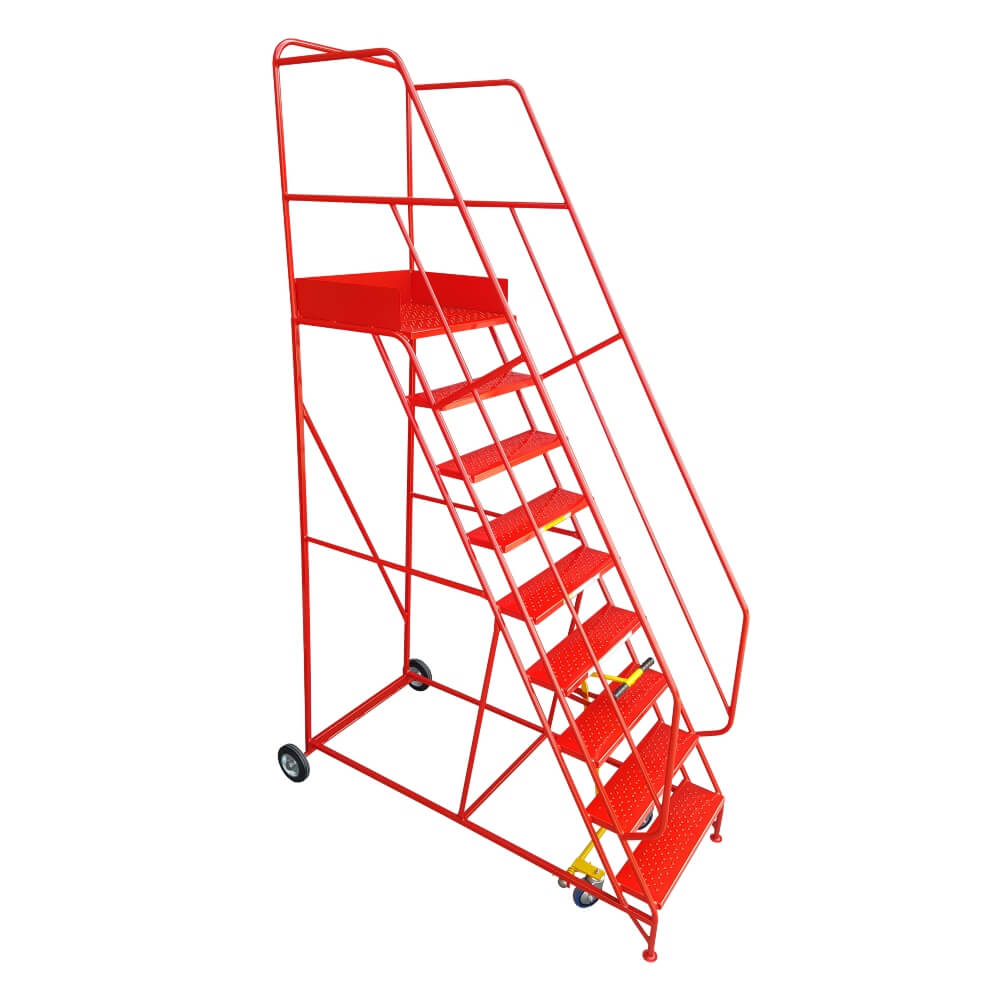

KHD09 9 2250mm 3250-4000mm 3250 x 995 x 1930mm (HxWxL) 127kg 500kg Central Brake

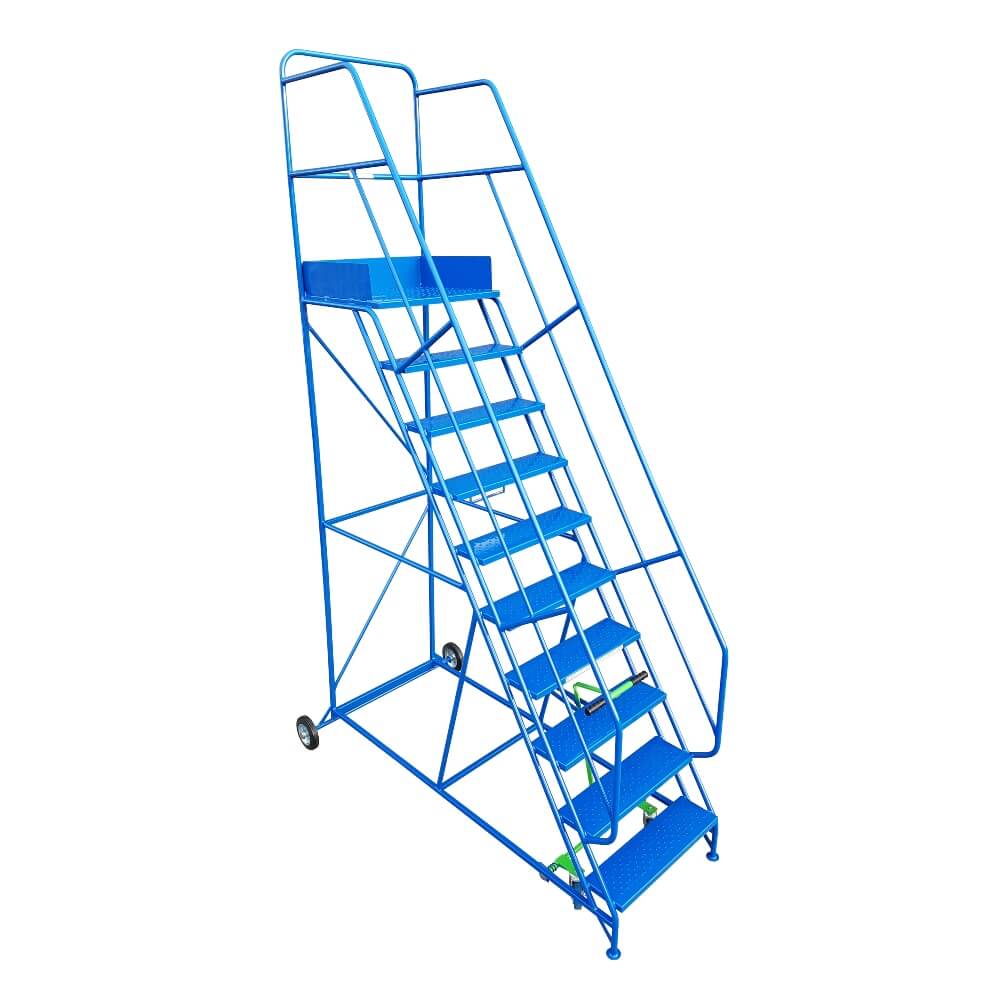

KHD10 10 2500mm 3500-4250mm 3500 x 1150 x 2105mm (HxWxL) 144kg 500kg Central Brake
KHD11 11 2750mm 3750-4500mm 3750 x 1150 x 2270mm (HxWxL) 150kg 500kg Central Brake

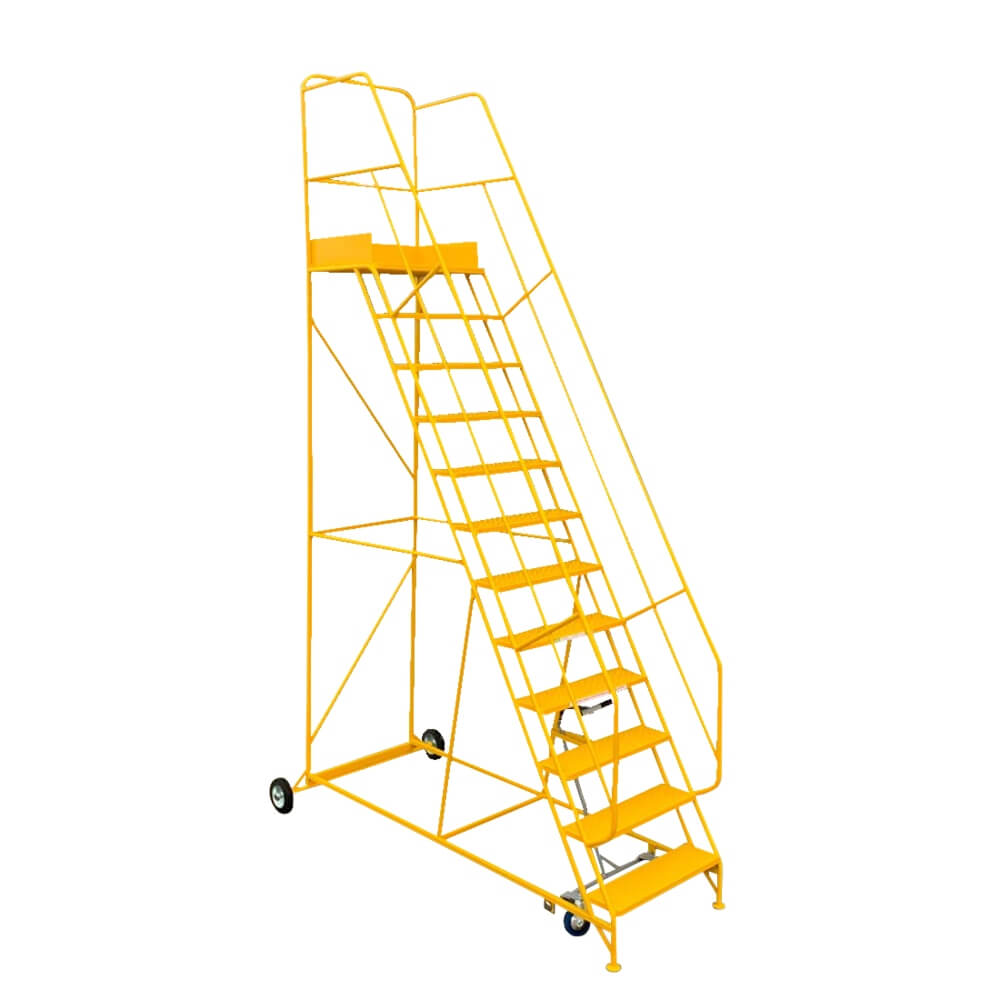

KHD12 12 3000mm 4000-4750mm 4000 x 1150 x 2430mm (HxWxL) 163kg 500kg Central Brake
KHD13 13 3250mm 4250-5000mm 4250 x 1380 x 2670mm (HxWxL) 174kg 500kg Central Brake
KHD14 14 3500mm 4500-5250mm 4500 x 1380 x 2830mm (HxWxL) 180kg 500kg Central Brake
KHD15 15 3750mm 4750-5500mm 4750 x 1470 x 2995mm (HxWxL) 190kg 500kg Central Brake

Prices include delivery to Zone 1 - England and Wales. If delivery is to outside this area, please email in with the delivery postcode and we can raise a quotation for you.

Additional Information

Working Height - This is shown as a general guide between waist height and just above the shoulders of the average person, approximately 750mm range.

Overall Width – The main framework of this range is approx. 750mm wide; the overall width shown is taken at the widest point, the axle, at the rear of the step.

Platform Size – 700mm x 600mm deep - this can be extended.

Kick Plate - All sizes in this range have rear toe plate to all three sides of the working platform.

Packing Information – When your step arrives with you, it will be fully assembled. It will have a small amount of foam protection on the top pulpit rail.

Lead Time: 8 weeks.

Reasons to shop with Merlin Industrial

  • Vast array of products with many customisable options

    Our products cover a range of industries including but not limited to Business, Manufacturing, Hospitals and Educational
    establishments.

  • Knowledgeable, friendly, excellent customer service

    Helpful, friendly and knowledgeable staff that can assist with all questions and queries. We are happy to assist with all enquiries, small and large.

  • We’re sure to find a suitable solution for you

    We offer turnkey solutions to ensure that all our products can be seamlessly integrated to help make sure your business continues to run smoothly.

Free Carriage Over £300

Excellent, highly rated and prompt delivery to anywhere in England, Scotland and Wales.We can also offer shipping for the majority of our products to anywhere in the world. Please get in contact for further details.

Contact Sales
Merlinindustrial

KHD Heavy Duty Industrial Mobile Safety Step

From £487.88

When we say HEAVY DUTY, we mean HEAVY DUTY! Whilst most other Heavy Duty products on the market only hold between 120 - 150kg, we've gone all out to bring you a product which has a SWL of 500kg! This range is manufactured from heavy duty tube and box section, complete with heavy duty steel centred wheels. It has a larger platform than normal and wide treads giving you heaps of room to move around comfortably. Perfect for use on factory floors, in warehouses and for maintenance. It comes with many colour, tread types and exit options to choose from.

This range comes fully welded and ready to use.

Tread Type

Come as standard with a Punched Metal tread. However both PVC Covered and Rubber Covered treads are also available at no additional cost. Just let us know when ordering.

Dimensions:

Code Treads Platform Height Working Height Overall Dimensions Weight SWL Brake Type
KHD05 5 1250mm 2250-3000mm 2250 x 995 x 1470mm (HxWxL) 90kg 500kg Central Brake
KHD06 6 1500mm 2500-3250mm 2500 x 995 x 1560mm (HxWxL) 98kg 500kg Central Brake
KHD07 7 1750mm 2750-3500mm 2750 x 995 x 1650mm (HxWxL) 112kg 500kg Central Brake
KHD08 8 2000mm 3000-3750mm 3000 x 995 x 1775mm (HxWxL) 118kg 500kg Central Brake
KHD09 9 2250mm 3250-4000mm 3250 x 995 x 1930mm (HxWxL) 127kg 500kg Central Brake
KHD10 10 2500mm 3500-4250mm 3500 x 1150 x 2105mm (HxWxL) 144kg 500kg Central Brake
KHD11 11 2750mm 3750-4500mm 3750 x 1150 x 2270mm (HxWxL) 150kg 500kg Central Brake
KHD12 12 3000mm 4000-4750mm 4000 x 1150 x 2430mm (HxWxL) 163kg 500kg Central Brake
KHD13 13 3250mm 4250-5000mm 4250 x 1380 x 2670mm (HxWxL) 174kg 500kg Central Brake
KHD14 14 3500mm 4500-5250mm 4500 x 1380 x 2830mm (HxWxL) 180kg 500kg Central Brake
KHD15 15 3750mm 4750-5500mm 4750 x 1470 x 2995mm (HxWxL) 190kg 500kg Central Brake

Prices include delivery to Zone 1 - England and Wales. If delivery is to outside this area, please email in with the delivery postcode and we can raise a quotation for you.

Additional Information

Working Height - This is shown as a general guide between waist height and just above the shoulders of the average person, approximately 750mm range.

Overall Width – The main framework of this range is approx. 750mm wide; the overall width shown is taken at the widest point, the axle, at the rear of the step.

Platform Size – 700mm x 600mm deep - this can be extended.

Kick Plate - All sizes in this range have rear toe plate to all three sides of the working platform.

Packing Information – When your step arrives with you, it will be fully assembled. It will have a small amount of foam protection on the top pulpit rail.

Lead Time: 8 weeks.
