Description

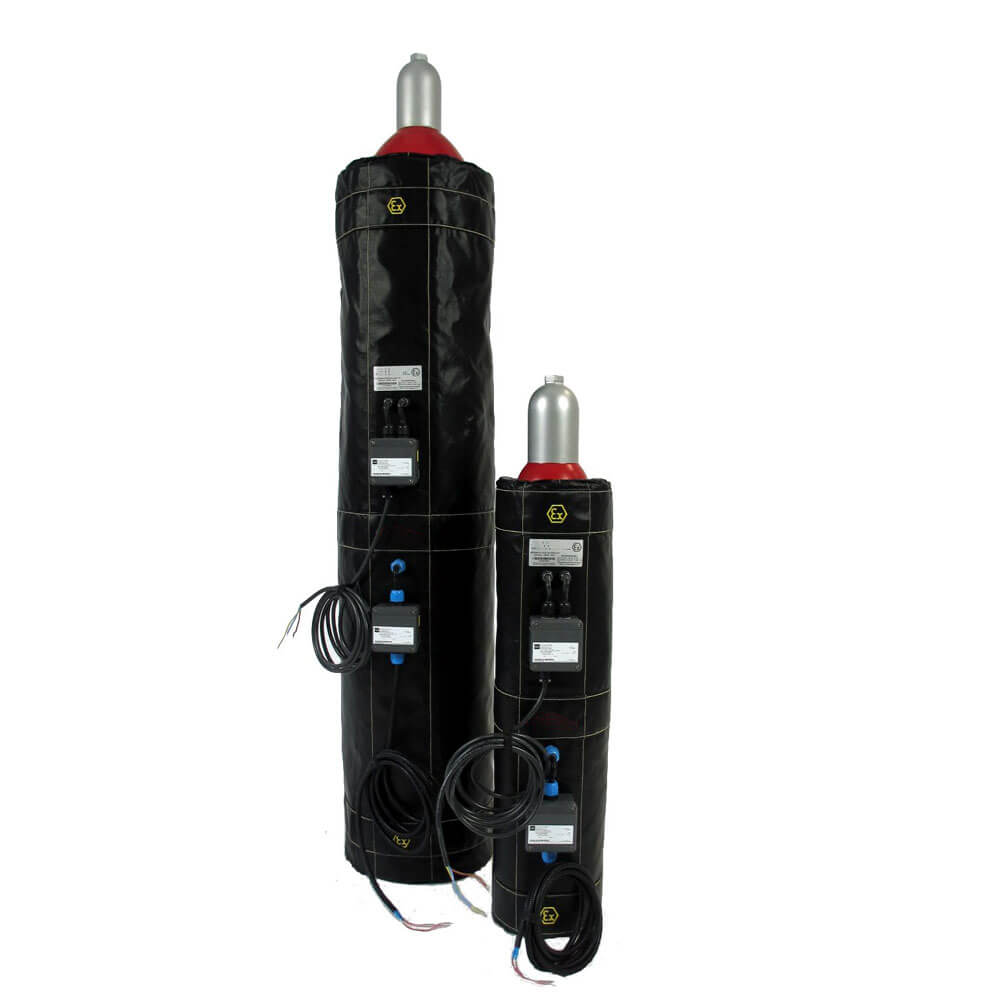

The ATEX Gas Bottle Heater series is a safe, efficient, and customizable heating solution for gas bottles located in hazardous areas.

Gas bottle heaters are used for protection against frost, temperature maintenance and process heating in a wide range of industries.

The ATEX Gas Bottle Heater series is available in different capacities, nominal powers, depending on the size of the gas bottle being heated. It can be used for temperature classes T6, T5, T4, and T3 depending on the temperature setting of the limiter.

The heater is designed to be robust, flexible, and dissipative, making it suitable for use both indoors and outdoors. The heater has a protection class of IP65/I, which means it is dust-tight and protected against water jets. The heater is system-approved with an EC-type examination certificate according to RL 2014/34/EU appendix III.

Additionally, the heater is delivered fully configured and ready to use without further acceptance procedures.

It is important to note that the ATEX Gas Bottle Heater series should be operated at maximum temperature of 50°C (cylinder temperature) in accordance with technical rules TRG 310 / TRBS 3145 / TRGS 745.

Technical Information:

Nominal voltage: 230 VAC*
Nominal power: 380W, 850W, 850W (10L, 50L, 79L) or application-specific
Max. operating temperature: +50/60°C (jacket max. 200°C)
Temperature class: T6, T5, T4, T3 (depending on temperature setting limiter)
Electrical connection terminal boxes for network (EX-e) / sensor (EX-i)
Protection class: IP65/I
Zones 1/2 (gas); 21/22 (dust)
Sensors: 2xPt100 (EX-i, EX-e)
Weight: 6kg, 9.5kg, 10kg (10L, 50L, 79L)
Comes with Digital ATEX Controller.

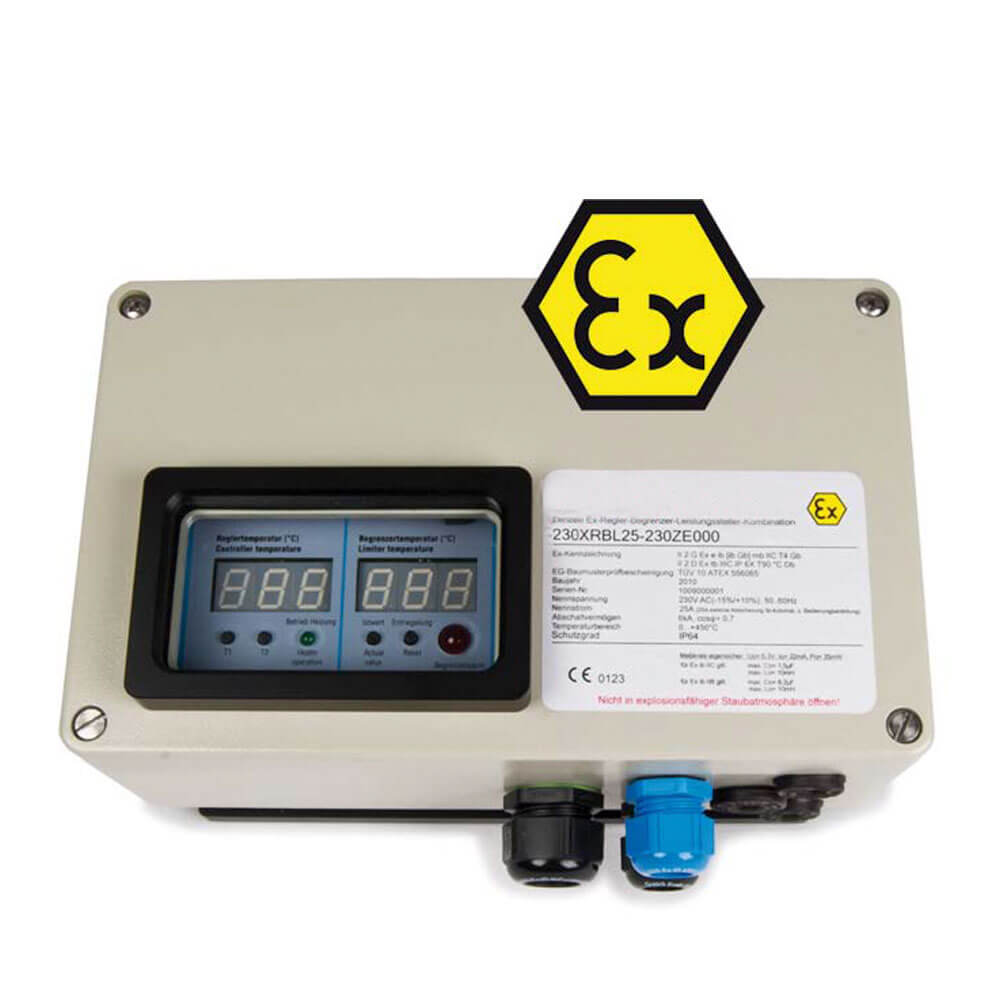

Digital ATEX Temperature Controller - 23-4258

Size: 260 x 160 x 136mm
IP64 Rated
230V
Weight: 6kg

Specifications:

Code	Size	Dimensions	Volts	Watts	Temperature range
23-4266	10L	140 x 800mm	230V	380W	0-60°C
23-4265	50L	230 x 1400mm	230V	850W	0-60°C
23-4264	79L	318 x 1000mm	230V	850W	0-60°C

Custom sizes also available please get in contact with further details.

Lead Time: 1-2 weeks.

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
