A1 BeamBox LED Light Box
Description
Description

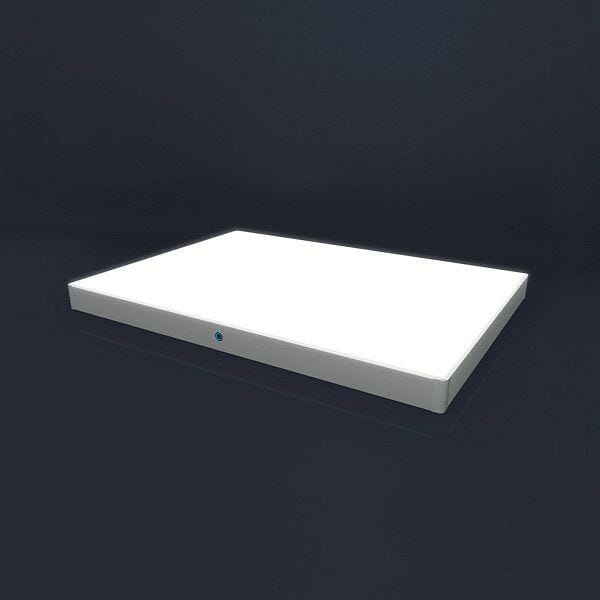

Introducing the modern and stylish A1 BeamBox LED Light Box, perfect for larger drawings or collaborative design work.
The A1 BeamBox is a backlit LED light box offering generous working area with an edge-to-edge illuminated screen.
With an integrated touch sensitive dimming switch, the light level can be set exactly right with step-less fine brightness control.
The pure white and colour corrected 5500K rear illuminated screen features a perfectly even light distribution with no hot-spots.
Ideal for inspection and quality control tasks in industrial settings.
The A1 BeamBox is also available with the option of a toughened glass screen for demanding work.
With a sealed construction and low power consumption it is also highly practical and designed to look the part.
Specifications:
- Working Area 860 x 620mm Edge-To-Edge Screen
- Paper Size A1
- Weight 7.8kg (14.5kg with glass)
- Switch Stainless touch sensitive & illuminated
- Dimming Stepless brightness control 10 - 100%
- Total Light Power 9,010 lumens
- Brightness @ Screen 17,000 LUX
- Screen Acrylic Screen
- Light Source Rear-lit LED
- Light Output 5500K Day-light white
- LED life-span 50,000 hour
- Power Supply 24V Mains power supply included
- Power Usage 3.6 Amp
- Ingress Protection IP67 switch rating
- Switch Illumination Blue switch ring
How bright is it?
Very. You can easily illuminate through 450gsm card. Thankfully the dimmer provides fine control over the light intensity making it comfortable to use for extended periods.
Does it come with a power supply?
Yes. An external 24V desktop power supply is provided and fitted with a UK plug as standard. We can supply different plugs if required; we will confirm with you if your delivery address is outside the UK.
Do I need a glass screen?
If you are likely to cut against the screen or use tools which could damage the standard acrylic, then we would recommend a glass screen.
Lead Time: 4-5 weeks.
