SKU: bo_bt-a1

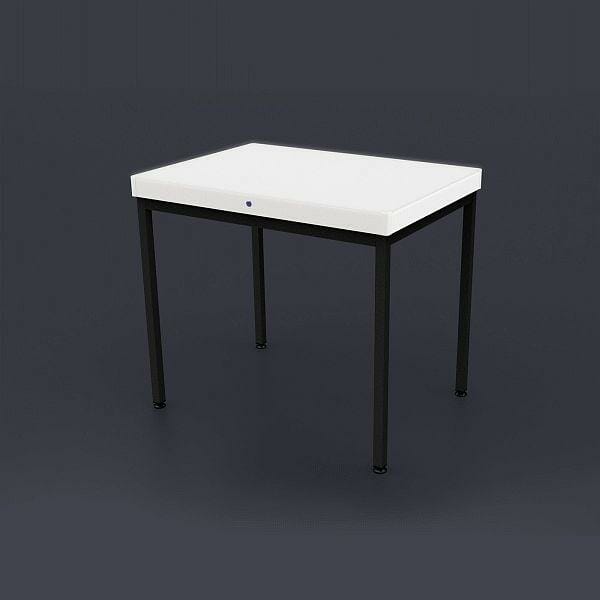

A1 Beam Light Table

£740.63

All prices are excluding VAT
Total Minimum Order Value: £50

Need Help? Our expert team are available to help with any presale or account questions.

Call: 0800 0418 650
Email: info@merlin-industrial.com
Mon - Friday: 9am - 5pm

Delivery and Shipping

Please note our minimum order value is £50.00

Orders Under £300.00
£12.00 carriage charge on all orders

Orders Over £300.00
Carriage free of charge

We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.

We will confirm the lead time when we send your order confirmation via email.

Please call if you’re needing the items quickly.

Trade Account Options

We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.

Learn More About Trade Accounts

Description

Designed for up to A1 size paper, the A1 Beam Light Table provides a professional illuminated space ideal for a range of design and inspection cases.

For architects and engineers it provides the perfect space to collaborate with clients over the design and review process.

Manufacturing sheet materials or quality control inspection for components is made easier when you can rely on spotting the details.

The toughened glass screen is illuminated from edge-to-edge and gives a solid and safe work surface which features perfect light distribution thanks to the rear-lit LED light system.

The desired brightness is easily set thanks to the touch sensitive stainless steel dimming switch.

Its fully welded steel table frame features adjustable feet for correcting any unevenness in the floor - perfect for quirky old stone floors.

We build these to order and custom versions are available.

Specifications:

  • Working Area 860 x 620mm Edge-To-Edge Screen
  • Paper Size A1
  • Weight 7.8kg (14.5kg with glass)
  • Switch Stainless touch sensitive & illuminated
  • Dimming Stepless brightness control 10 - 100%
  • Total Light Power 9,010 lumens
  • Brightness @ Screen 17,000 LUX
  • Screen Toughened Glass
  • Light Source Rear-lit LED
  • Light Output 5500K Day-light white
  • LED life-span 50,000 hour
  • Table Height 850mm
  • Weight 31Kg
  • Power Supply 24V Mains power supply included
  • Power Usage 3.6 Amp
  • Ingress Protection IP67 switch rating
  • Switch Illumination Blue switch ring

Can I have a different height table?

Yes. We make them to order and slight changes to the height (+ / - 300mm) will not change the price.

How bright is it?

Very. You can easily illuminate through 450gsm card. Thankfully the dimmer provides fine control over the light intensity making it comfortable to use for extended periods.

Does it come with a power supply?

Yes. An external 24V desktop power supply is provided and fitted with a UK plug as standard. We can supply different plugs if required; we will confirm with you if your delivery address is outside the UK.

Do I need a glass screen?

Large format light tables benefit from the strength that a toughened glass screen provides.

Lead Time: 4-5 weeks.
