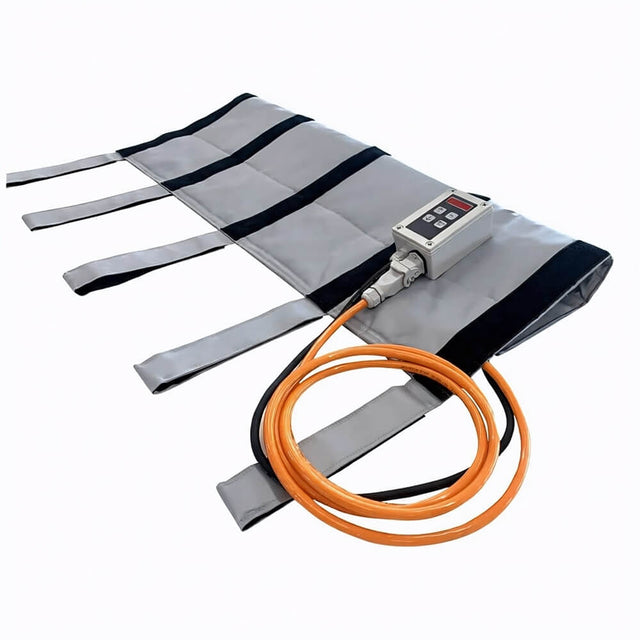

230V High Voltage Cable Heating Blankets 0-90ºC

Professional Heating Jackets for High Voltage Cable Straightening & Jointing

Our 230V High Voltage Cable Heating Blankets are specifically engineered for the power transmission, utilities and renewable energy sectors, providing a safe and effective solution for straightening, relaxing and conditioning high voltage power cables prior to installation and jointing.

Designed for use on high voltage (HV) and extra high voltage (EHV) cables, these specialist heating jackets deliver controlled, uniform heat to help remove cable memory, improve flexibility and simplify cable handling during installation. They are particularly effective when preparing cables for jointing, termination and post-curing of epoxy joints.

Each heating blanket incorporates an integrated PT100 temperature sensor, which works alongside a detachable digital temperature controller to provide accurate temperature regulation and continuous digital temperature monitoring. This ensures consistent heating performance whilst protecting valuable cable assets from overheating.

Manufactured from robust silicone-impregnated cloth with fibreglass insulation, these heating blankets are designed to withstand demanding site conditions while delivering excellent thermal efficiency. Available in a variety of standard lengths, they can also be combined to accommodate different cable diameters or manufactured to bespoke dimensions for specialist applications.

Key Features

• Operates from a standard 230V mains power supply

• Temperature range up to 90°C

• Designed for high voltage and extra high voltage power cables

• Ideal for cable straightening, conditioning and relaxation

• Uniform heat distribution for safe, controlled heating

• Durable silicone-impregnated outer material

• High-quality fibreglass insulation with 6mm insulation to minimise heat loss

• Resistance heating cable for reliable performance

• Integrated PT100 temperature sensor for precise temperature monitoring

• Supplied with an adjustable digital temperature controller and digital display

• Heating jacket lengths available up to 2 metres

• Adjustable securing straps for safe and secure installation

• Wide range of standard sizes available from stock

• Bespoke sizes manufactured to order


Ideal Applications

The 230V High Voltage Cable Heating Blanket is ideal for a variety of specialist cable installation and maintenance applications, including:

• High voltage cable straightening

• Extra high voltage cable straightening

• Cable relaxation and conditioning

• High voltage cable jointing

• Post-curing of epoxy joints

• Power transmission cable installation

• Renewable energy infrastructure projects

• Electrical utility maintenance

• Construction and civil engineering projects

• Technical Specification

• Voltage: 230V

• Maximum Temperature: 90°C

• Outer Material: Silicone-impregnated cloth

• Insulation: Fibreglass

• Insulation Thickness: 6mm

• Heating Element: Resistance heating cable

• Temperature Monitoring: Integrated PT100 sensor

• Temperature Control: Adjustable digital controller with digital display

• Maximum Heating Jacket Length: Up to 2 metres

• Fixing Method: Adjustable securing straps

• Standard Sizes: Multiple sizes available from stock

• Custom Sizes: Available on request


Designed for the Power & Renewable Energy Industries

Our 230V High Voltage Cable Heating Blankets provide a dependable and efficient solution for preparing high voltage cables before installation, jointing and maintenance.

Combining precise temperature control, uniform heat distribution and rugged construction, they help improve cable handling while reducing installation time and ensuring consistent results.

Trusted by contractors working across the power distribution, utilities, renewable energy and construction sectors, these heating blankets are available in both standard and bespoke configurations to suit virtually any high voltage cable application.

Sizes:

PDFS:

  Heating Blanket - Installation & Operation PDF

  DigiTherm Digital Temperature Controller - Installation & Operation PDF

PLEASE NOTE:

The heating blanket will be delivered with a UK plug unless an alternative is otherwise requested.

Custom sizes also available please get in contact with further details.

Lead Time: 1-2 weeks.

Please get in contact if you're needing more than 2+ products for further discount and a more competitive quotation.
