230V High Temperature Heating Blanket 0-120ºC

High Performance Industrial Heating Blankets for Professional Curing Applications

Our 230V High Temperature Heating Blankets are engineered to provide safe, reliable and energy-efficient heating for industrial applications requiring temperatures of up to 120°C. Designed for demanding manufacturing, maintenance and repair environments, these premium heating blankets deliver consistent and uniform heat distribution, making them ideal for curing composite materials, carbon fibre, epoxy prepreg and other temperature-sensitive components.

Manufactured from durable silicone-impregnated cloth with high-quality fibreglass insulation, these heating blankets offer exceptional flexibility whilst maintaining outstanding thermal performance. Their lightweight construction allows them to conform to flat, curved and irregular surfaces, while the insulated design reduces heat loss and provides dependable operation in both indoor and outdoor environments.

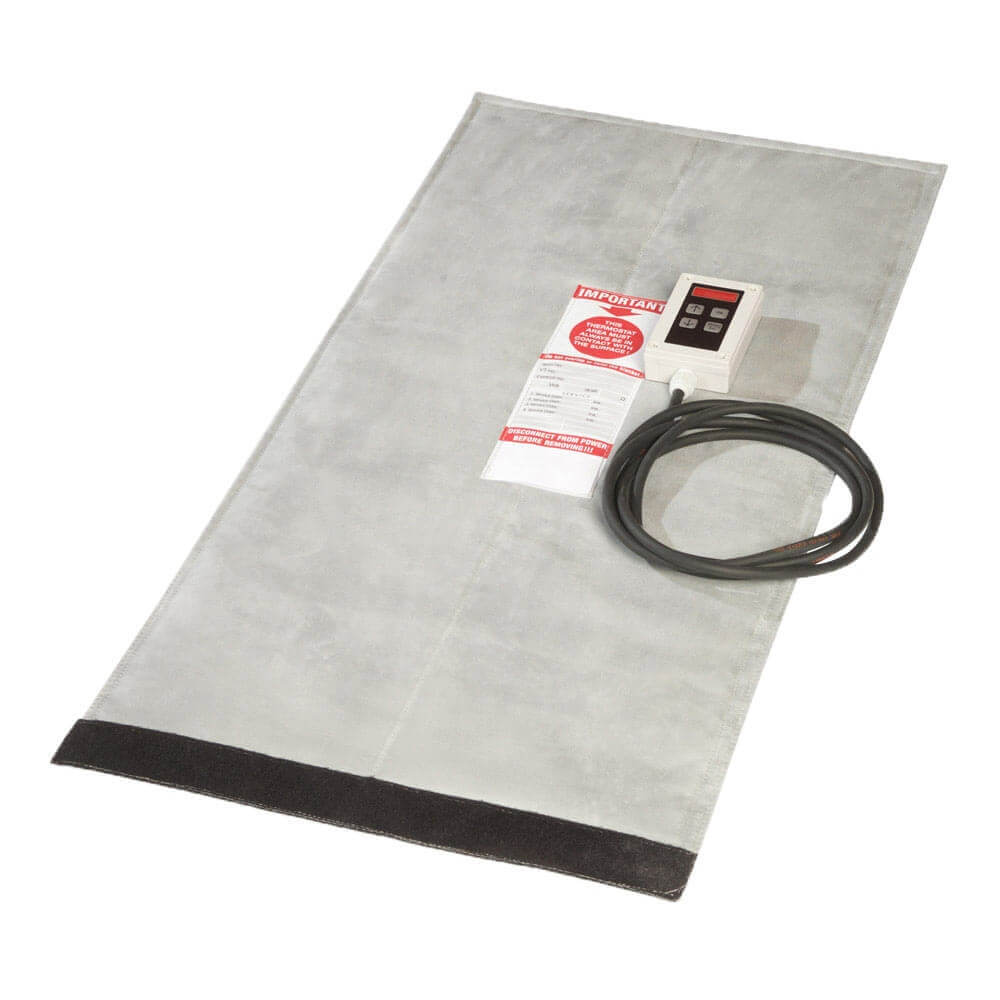

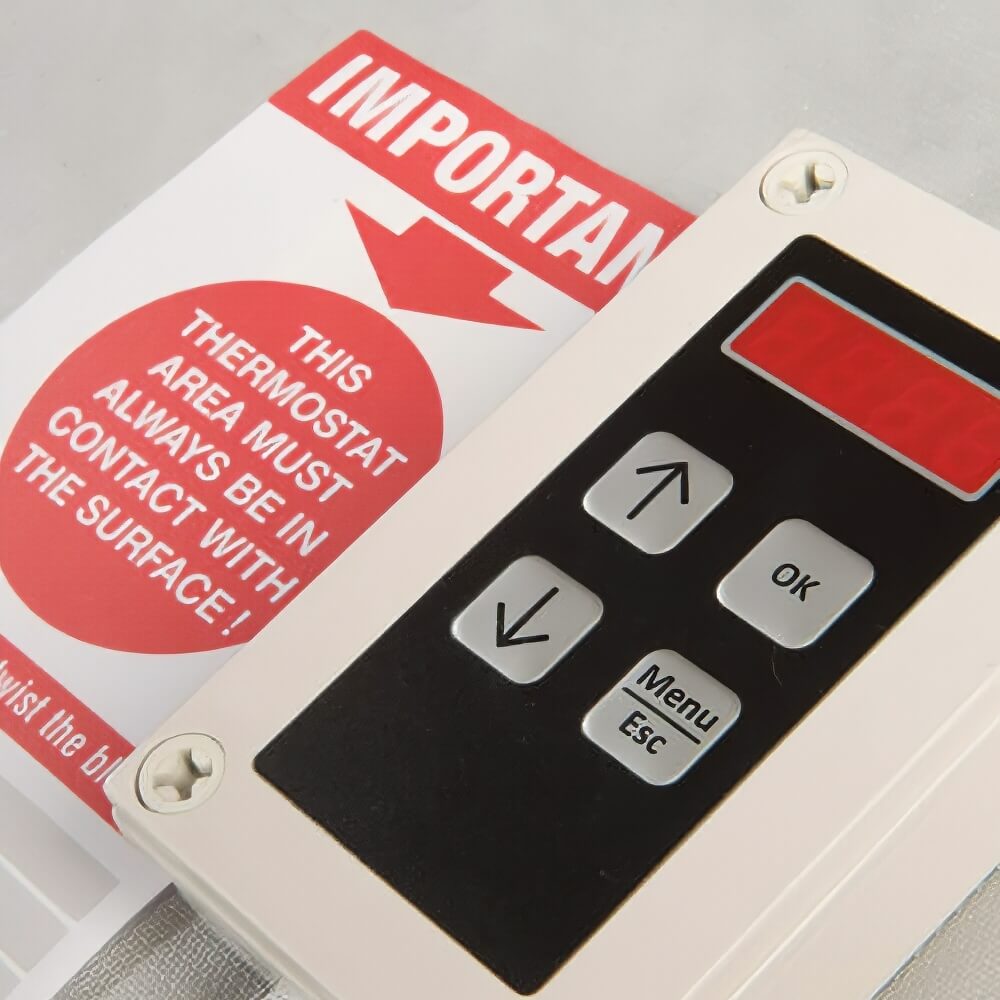

Each blanket is supplied with an adjustable digital temperature controller, allowing precise temperature regulation for accurate curing and controlled heating processes. Multiple blankets can also be positioned together to cover larger work areas whilst maintaining a consistent surface temperature across the entire application.

Available in a wide selection of standard sizes and power outputs, bespoke dimensions and custom specifications can also be manufactured to suit your exact requirements.

Key Features

• Operates from a standard 230V mains power supply

• Maximum operating temperature of 120°C

• Designed for professional industrial heating and curing applications

• Delivers uniform heat distribution across the entire blanket surface

• Durable silicone-impregnated outer material

• Lightweight, highly flexible construction for easy positioning

• 6mm fibreglass insulation minimises heat loss and maximises efficiency

• Premium Teflon heating wire

• Grounded heating system for enhanced electrical safety

• Integrated safety thermostat

• Supplied with an adjustable digital temperature controller

• 3 metre power cable included

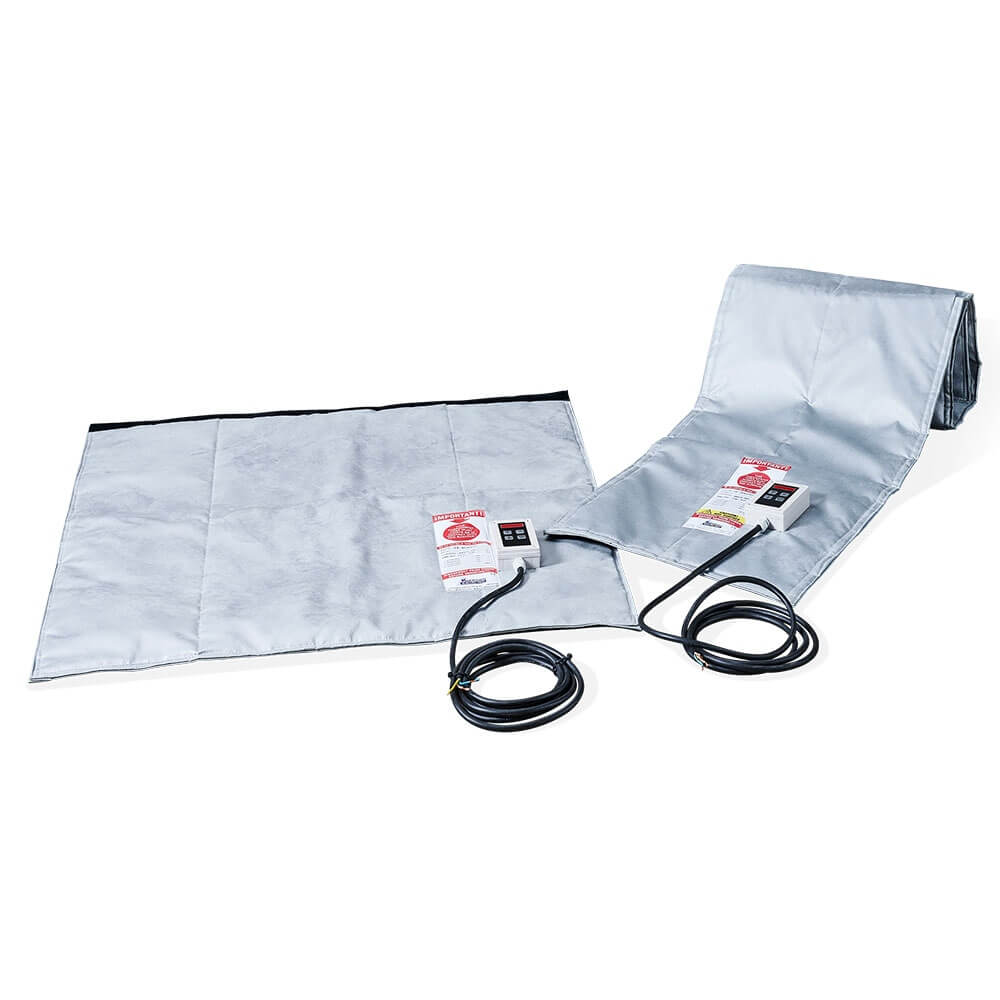

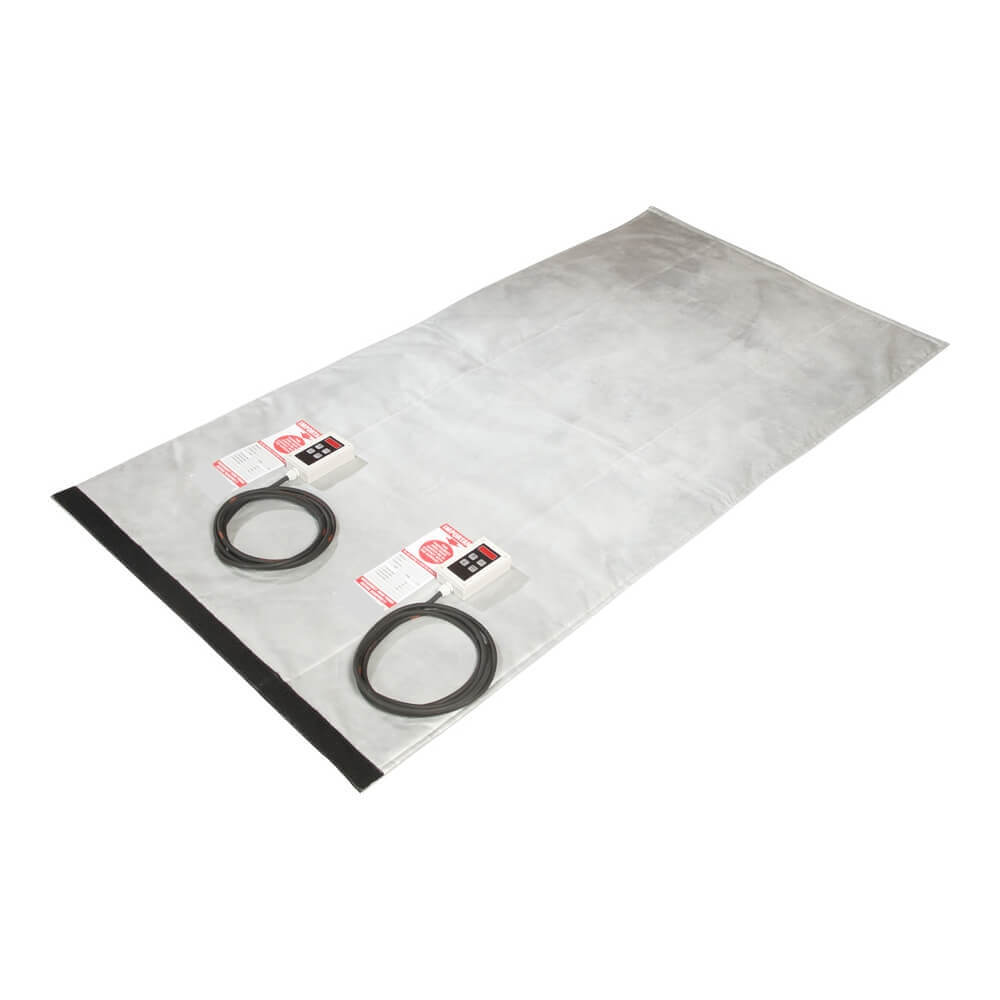

• Multiple blankets can be combined to heat larger surface areas

• Optional fixing straps available for secure installation

• Extensive range of standard sizes available from stock

• Bespoke sizes and power outputs manufactured on request


Ideal Applications

These high temperature heating blankets are widely used throughout a variety of industries for controlled heating and curing applications, including:

• Composite material curing

• Carbon fibre curing

• Epoxy prepreg curing

• Aerospace component manufacture and repair

• Marine composite production and maintenance

• Wind turbine blade repair

• Wind turbine blade manufacturing

• Industrial bonding and curing processes

• Controlled heating of components up to 120°C

• Technical Specification

• Voltage: 230V

• Maximum Temperature: 120°C

• Outer Material: Silicone-impregnated cloth

• Insulation: Fibreglass

• Insulation Thickness: 6mm

• Heating Element: Teflon heating wire

• Heating System: Grounded

• Safety Protection: Integrated safety thermostat

• Temperature Control: Adjustable digital temperature controller

• Power Cable: 3 metres

• Standard Sizes: Multiple sizes available from stock

• Custom Sizes: Available on request


Professional Heating Solutions for Demanding Industrial Environments

Our 230V High Temperature Heating Blankets are designed to deliver accurate, dependable heating performance wherever controlled temperatures up to 120°C are required.

Combining robust construction, excellent flexibility and precise temperature control, they are trusted across the aerospace, marine, renewable energy and composite manufacturing industries.

Whether you require a standard stock model or a bespoke heating blanket tailored to your application, these blankets provide outstanding heat distribution, energy efficiency and long-term durability for even the most demanding industrial tasks.

Sizes:

PDFS:

  Heating Blanket - Installation & Operation PDF

  DigiTherm Digital Temperature Controller - Installation & Operation PDF

PLEASE NOTE:

The heating blanket will be delivered with a UK plug unless an alternative is otherwise requested.

Custom sizes also available please get in contact with further details.

Lead Time: 1-2 weeks.

Please get in contact if you're needing more than 2+ products for further discount and a more competitive quotation.
