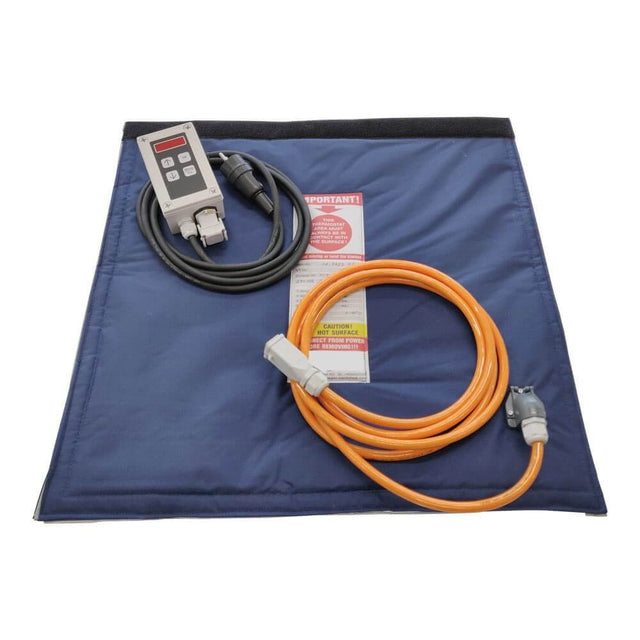

230V Heating Blanket 0-90ºC

Professional Heating Blankets for Composite Curing & Industrial Applications

Our 230V Industrial Heating Blankets are designed to provide safe, efficient and consistent heating for a wide range of industrial applications requiring temperatures up to 90°C. Engineered for professional use, these high-quality heating blankets deliver even heat distribution across the entire surface, making them ideal for curing composite materials, carbon fibre, epoxy prepreg and other temperature-sensitive manufacturing and repair processes.

Constructed from durable yet lightweight materials, each blanket combines flexibility with excellent thermal performance. The insulated design helps minimise heat loss while allowing the blanket to conform to flat, curved or irregular surfaces, making it suitable for demanding industrial environments. Whether used in aerospace production, marine repairs or wind turbine maintenance, these heating blankets provide dependable, uniform heating every time.

Available with either an adjustable digital temperature controller, temperature sensor, or fixed bi-metal thermostat, they offer precise temperature control to suit a variety of applications. Multiple blankets can also be connected side-by-side to heat larger surface areas while maintaining an even curing temperature.

A wide selection of standard sizes is available from stock, with bespoke dimensions and power outputs manufactured to your exact specification.

Key Features

• Operates from a standard 230V mains power supply

• Maximum operating temperature of 90°C

• Designed for composite curing and industrial heating applications

• Delivers uniform heat distribution across the blanket surface

• Durable nylon outer material with polyester insulation

• Flexible, lightweight construction for easy handling and positioning

• 8mm insulated design reduces heat loss and improves efficiency

• Premium Teflon heating wire

• Grounded heating system for enhanced safety

• Integrated safety thermostat

• Available with:

• Adjustable digital temperature controller

• Temperature sensor

• Fixed bi-metal temperature limiter

• Supplied with a 3-metre power cable

• Multiple blankets can be combined to heat larger areas

• Optional fixing straps available for secure installation

• Extensive range of standard sizes held in stock

• Custom sizes and power outputs available on request


Ideal Applications

Our 230V heating blankets are widely used across numerous industries for controlled heating and curing applications, including:

• Composite material curing

• Carbon fibre curing

• Epoxy prepreg curing

• Aerospace manufacturing and repair

• Marine composite production and maintenance

• Wind turbine blade repairs

• Wind turbine rotor blade manufacturing

• Industrial bonding and curing processes

• Controlled heating of components requiring consistent temperatures


Technical Specification

• Voltage: 230V

• Maximum Temperature: 90°C

• Outer Material: Nylon

• Insulation: Polyester

• Insulation Thickness: 8mm

• Heating Element: Teflon heating wire

• Heating System: Grounded

• Safety Protection: Integrated safety thermostat

• Temperature Control Options: Adjustable digital controller, temperature sensor or fixed bi-metal thermostat

• Power Cable: 3 metres

• Standard Sizes: Multiple sizes available from stock

• Custom Sizes: Available on request


Reliable Heating for Professional Industrial Applications

The 230V Industrial Heating Blanket is a dependable solution for businesses requiring accurate, controlled heating during manufacturing, maintenance and repair operations.

Delivering consistent heat, excellent energy efficiency and robust construction, these blankets are trusted across the aerospace, marine, renewable energy and composites industries.

Whether you need a standard off-the-shelf model or a bespoke heating blanket tailored to your application, our 230V heating blankets offer outstanding performance, durability and reliability.

Sizes:

PDFS:

  Heating Blanket - Installation & Operation PDF

  DigiTherm Digital Temperature Controller - Installation & Operation PDF

PLEASE NOTE:

The heating blanket will be delivered with a UK plug unless an alternative is otherwise requested.

Custom sizes also available please get in contact with further details.

Lead Time: 1-2 weeks.

Please get in contact if you're needing more than 2+ products for further discount and a more competitive quotation.
