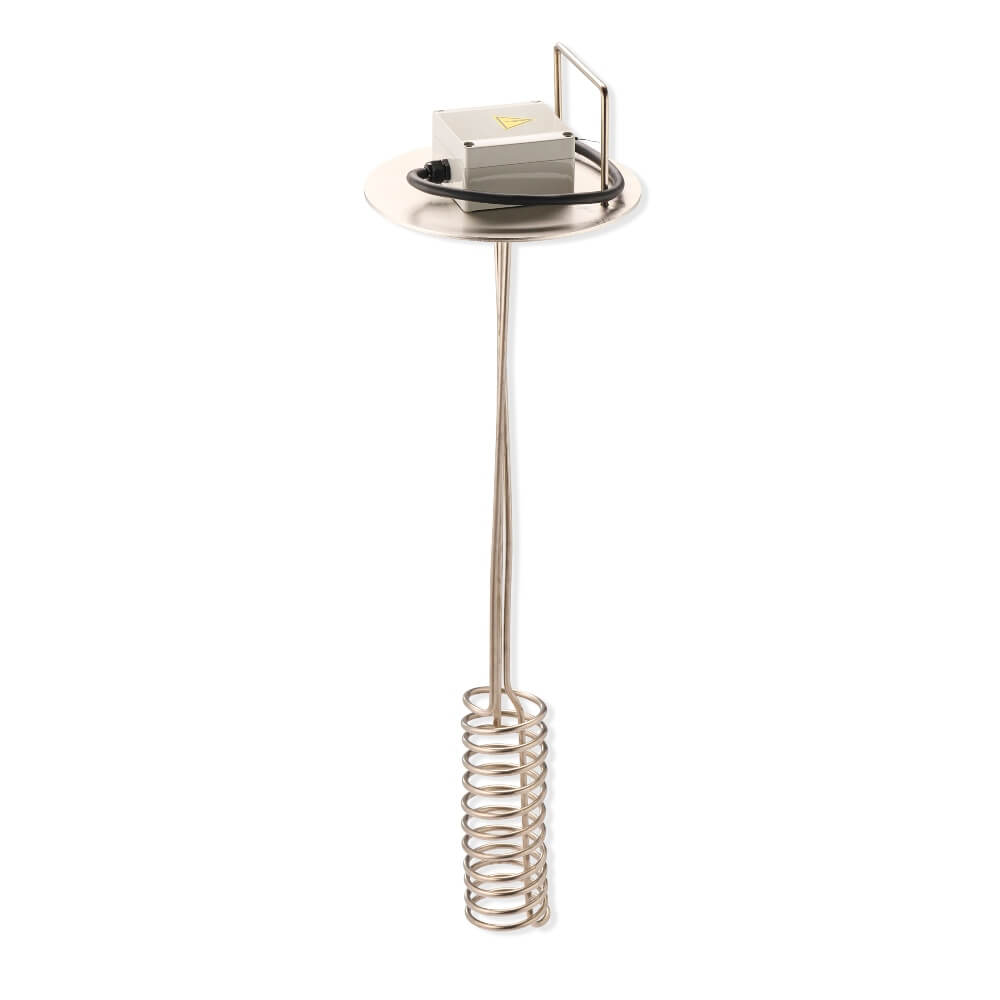

IBC Immersion Heater

The IBC Immersion Heater provides an efficient and reliable solution for heating liquids directly inside Intermediate Bulk Containers (IBCs). Designed to help overcome viscosity and solidification issues, the heater provides controlled, uniform heating to make liquids easier to handle, pour and pump.

Ideal for a wide range of industrial applications, the immersion heater can be used with water, oil-based products, mild acids and alkaline mixtures. By heating the liquid directly from within the IBC, it helps maintain the required temperature and viscosity, supporting efficient handling and reducing problems caused by materials becoming thicker at room temperature.

With a 2000W heating element and digitally controlled temperature adjustment from 0–90°C, the heater provides accurate and convenient temperature management. The integrated PT100 temperature sensor monitors the liquid temperature, allowing the heating process to be controlled according to the selected set point.

Durable Stainless Steel Construction

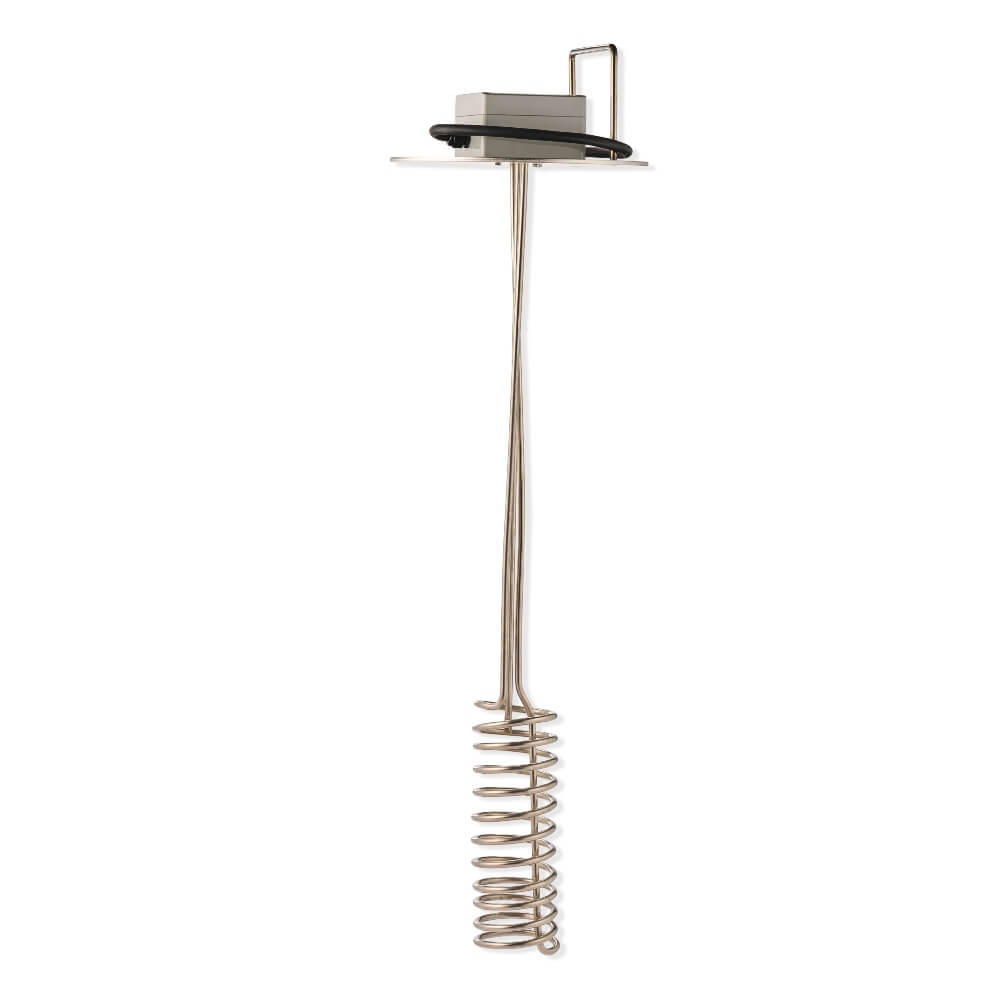

The heater features a robust AISI 316L (1.4404) stainless steel tube element, providing excellent durability and corrosion resistance for demanding industrial environments. The IP65-rated construction also makes the heater suitable for use in environments where protection against dust and water jets is required.

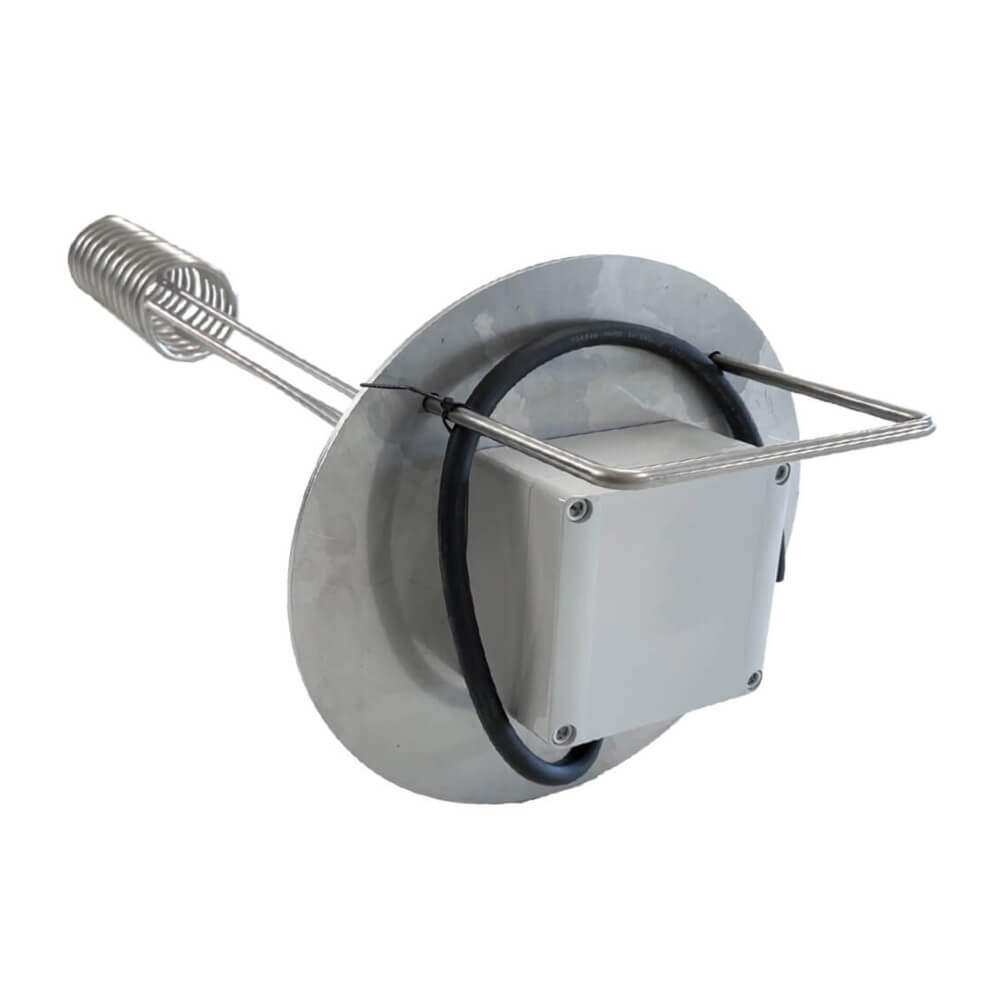

The immersion heater is designed to be placed directly into the IBC, providing efficient heat transfer to the contents without requiring an external heating jacket or heating cabinet. This makes it a practical solution for applications where direct liquid heating is preferred.

Wide Range of Industrial Applications

The IBC Immersion Heater is suitable for a variety of industries and processes, including:

• Chemical processing – helping maintain the required temperature and viscosity of industrial liquids.

• Pharmaceuticals – providing controlled heating during processing and formulation.

• Food and beverage – helping maintain the consistency and flow characteristics of suitable products.

• Oil and gas – preventing fluids from becoming excessively thick during storage and transportation.

• General manufacturing – heating water, oils and other compatible industrial liquids.


Easy Temperature Control

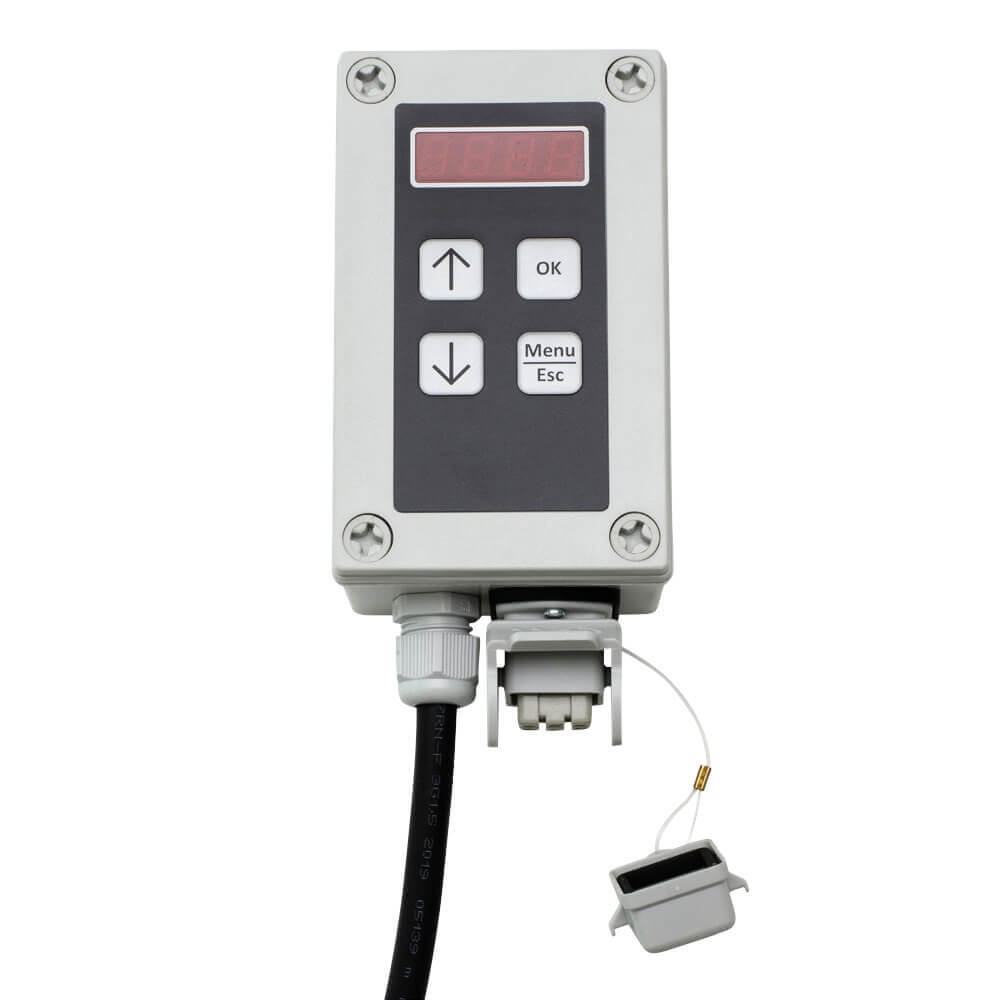

The integrated digital controller allows the desired temperature to be set between 0–90°C, providing straightforward and precise control of the heating process.

The heater is designed to heat the liquid to the selected set temperature. Always check the maximum recommended heating temperature and compatibility of the substance before use. Different liquids and materials have different safe operating temperatures, and the heater can become very hot during operation.

For safe operation, the heater must remain sufficiently immersed in the liquid during use. The minimum recommended liquid level is 500mm (approximately half-full).

Technical Specifications

• Power: 2000W

• Supply: 230V, single phase

• Temperature control: Digital controller

• Temperature range: 0–90°C

• Heating element: AISI 316L (1.4404) stainless steel

• Surface load: 2.2W/cm²

• Element length: 950mm

• Element diameter: Ø100mm

• Heated zone: 300mm

• Temperature sensor: Integrated PT100

• Minimum liquid level: 500mm / approximately half full

• Cable length between heater and control unit: Approx. 2800mm

• Protection rating: IP65


Suitable for a Variety of Liquids

The IBC Immersion Heater offers a practical method of maintaining the temperature and viscosity of compatible liquids stored in IBCs. Its 2000W output, stainless steel construction and digital 0–90°C temperature control make it a versatile heating solution for industrial environments where reliable and consistent liquid heating is required.

Specifications:

PLEASE NOTE:

For the IBC Immersion Heater to work to it's full potential we would recommend also purchasing an IBC Insulated Lid.

Lead Time: 1-2 weeks.

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
