SKU: keh_07-8778CDT

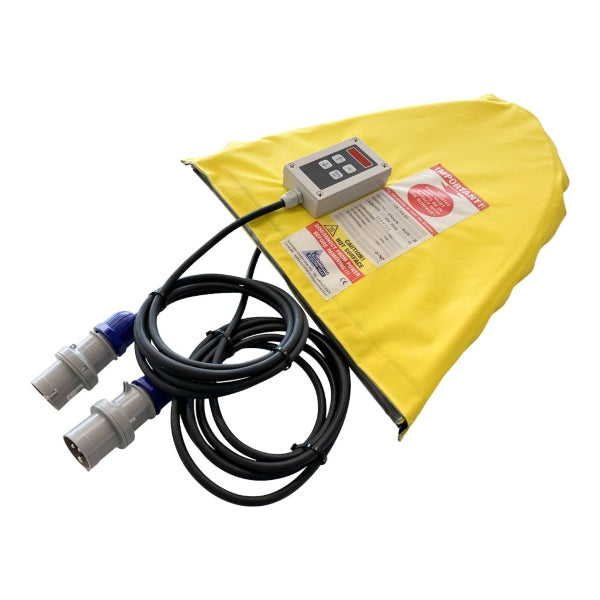

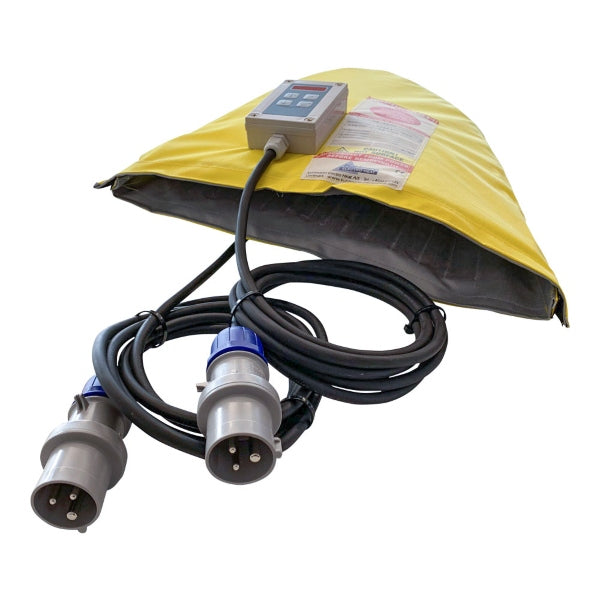

Blade Tip Heater for Vestas Wind Turbine Blades

Option

Product variants

Price On Request

All custom products need to be quoted for on a product by product basis. Please fill in the form below, or contact us on the below details.

Need Help? Our expert team are available to help with any presale or account questions.

Call: 0800 0418 650
Email: info@merlin-industrial.com
Monday-Thursday: 8am-5pm - Friday: 8am - 12pm

Delivery and Shipping

Please note our minimum order value is £50.00

Orders Under £300.00
£12.00 carriage charge on all orders

Orders Over £300.00
Carriage free of charge

We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.

We will confirm the lead time when we send your order confirmation via email.

Please call if you’re needing the items quickly.

Delivery to parts of Scotland, Northern Ireland and other Isles could incur an additional delivery charge. Please get in contact for further details.

Trade Account Options

We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.

Learn More About Trade Accounts

Description

A specialized solution designed to meet the unique needs of wind turbine blade tip curing. This heating blanket is engineered to provide a stable operating temperature of approximately 60ºC or 80º C, ensuring optimal curing conditions for your blade tips.

Once the blade tips have been cured, ground, and polished, you can carry out any required procedures without the risk of grinding non-cured material. This not only ensures the safety of your operations but also helps protect the environment by preventing the release of hazardous substances.

Our heating blankets are delivered with a mounted controller, ensuring precise temperature adjustment and optimal curing conditions right out of the box. The heating blankets can be customized in different sizes and power configurations to meet your specific requirements.

Whether you're involved in wind turbine rotor blade production or blade repair, the Heating Blanket for Blade Tips offers a reliable, efficient, and environmentally friendly solution for your curing needs.

Technical Information:

Material: Nylon
Insulation: Polyester, 8mm for minimal heat loss
Heating Wire: Teflon
Grounded Heating system
Safety Thermostat
Available with adjustable Digital temperature controllers, Temp Sensor, or bi-metal limiter
3M power Cable (no plug)
Optimal for curing composite materials, carbon, and epoxy pre preg
Can be put together to cover a larger surface
Straps for fixed installation (optional)

Specifications:

Code	Blade	Dimensions	Effect	Wattage
19-2620	B44	570 x 490mm (Tip Height x Tip Width)	2 x 230V	2 x 55W
07-8778CDT	B44	570 x 490mm (Tip Height x Tip Width)	2 x 110V	2 x 55W
11-9722ADT	B55	830 x 630mm (Tip Height x Tip Width)	2 x 110V	2 x 75W
11-9722DT	B55	830 x 630mm (Tip Height x Tip Width)	2 x 208V	2 x 75W

Custom sizes also available please get in contact with further details.

Lead Time: 1-2 weeks.

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.

Phone: 01752 690622

Email: info@merlin-industrial.co.uk
