Scissor Lift Tables 500kg
Description
Description
The 500kg Scissor Lift Table is a strong and dependable material handling solution, designed for demanding industrial, warehouse, and workshop applications. Built with a heavy-duty construction, it delivers excellent stability, smooth manoeuvrability, and reliable long-term performance with minimal maintenance requirements.
The single scissor lift table is highly manoeuvrable and simple to operate, featuring a manual hydraulic lifting system with a foot pump for effortless raising of the platform and a hand lever for smooth, controlled lowering. The platform can be safely used at any working height, providing flexibility for a wide range of lifting and positioning tasks.
For maximum safety during loading and unloading, both swivel castors are fitted with total stop brakes to prevent unwanted movement. An integrated overload valve offers additional protection and helps ensure safe operation under demanding conditions.
The table is fitted with hard-wearing, non-marking polyurethane tyres to help protect floor surfaces, while thread guards on the swivel wheels reduce debris build-up and maintenance. A durable epoxy powder coated finish provides excellent resistance to wear and corrosion, making the unit suitable for intensive daily use.
Key Features:
- 500kg load capacity
- Heavy-duty and stable design
- Large platform options available
- Excellent manoeuvrability
- Manual hydraulic operation
- Foot pump lift and hand lever lowering
- Smooth, fully controllable lowering speed
- Safe operation at any platform height
- Two total stop brakes fitted as standard
- Overload protection valve included
- Non-marking polyurethane tyres
- Swivel wheels fitted with thread guards
- Durable epoxy powder coated finish
- Test certificate available on request in accordance with EU Standard EN 1570
Technical Specifications:
| Product Code | TXL500 | BSL50 | TXL500L | BSL50LB |
| Capacity | 500kg | |||

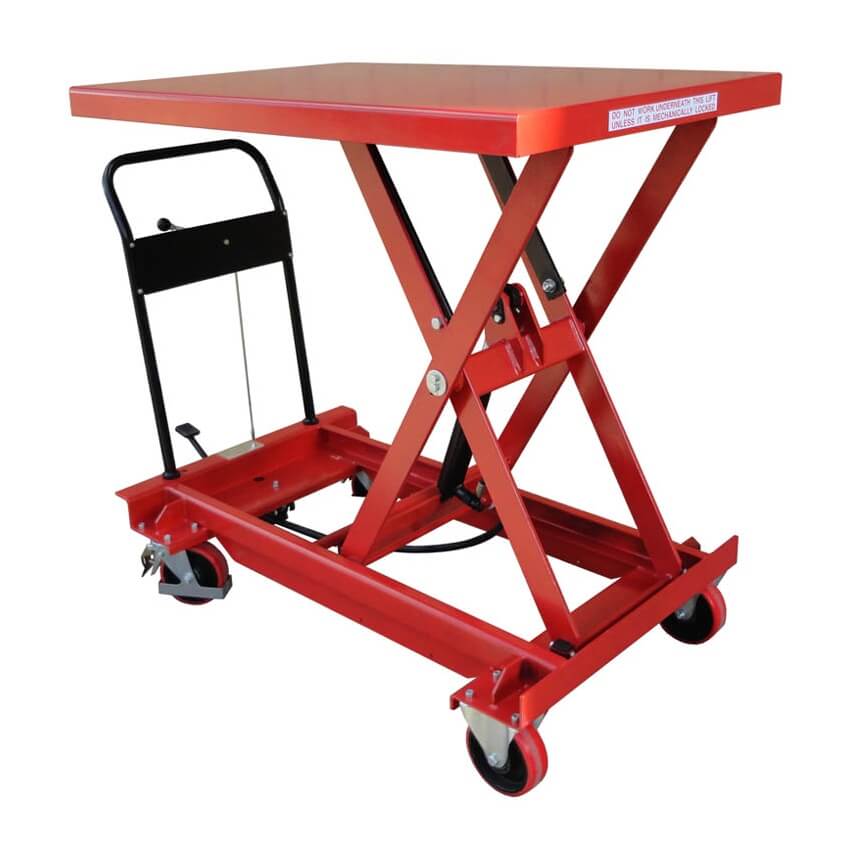

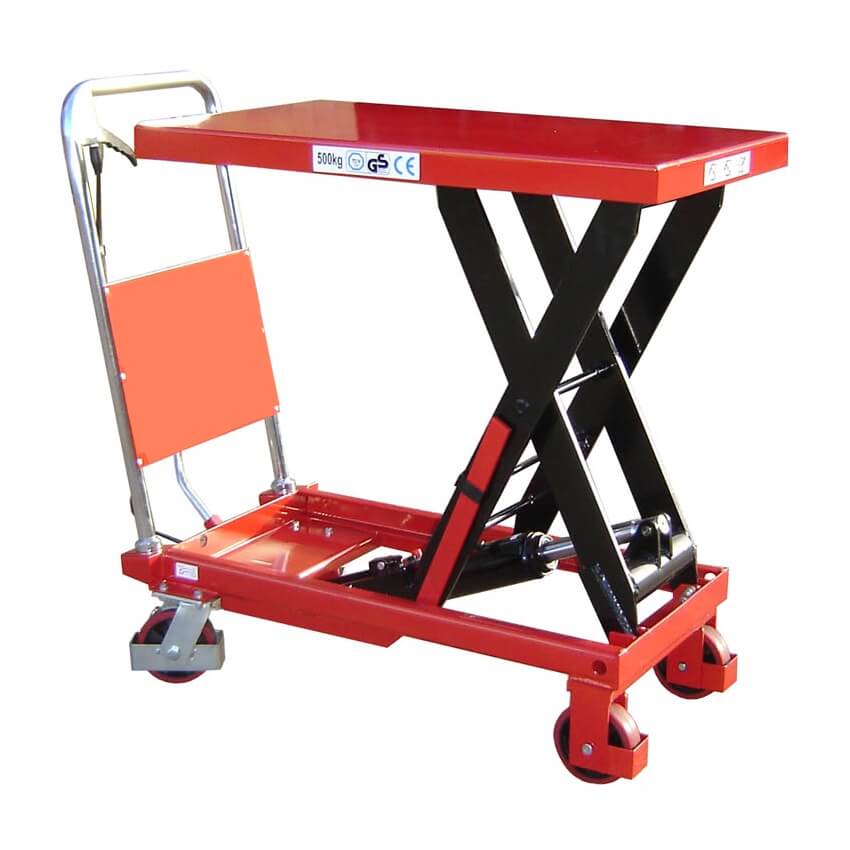

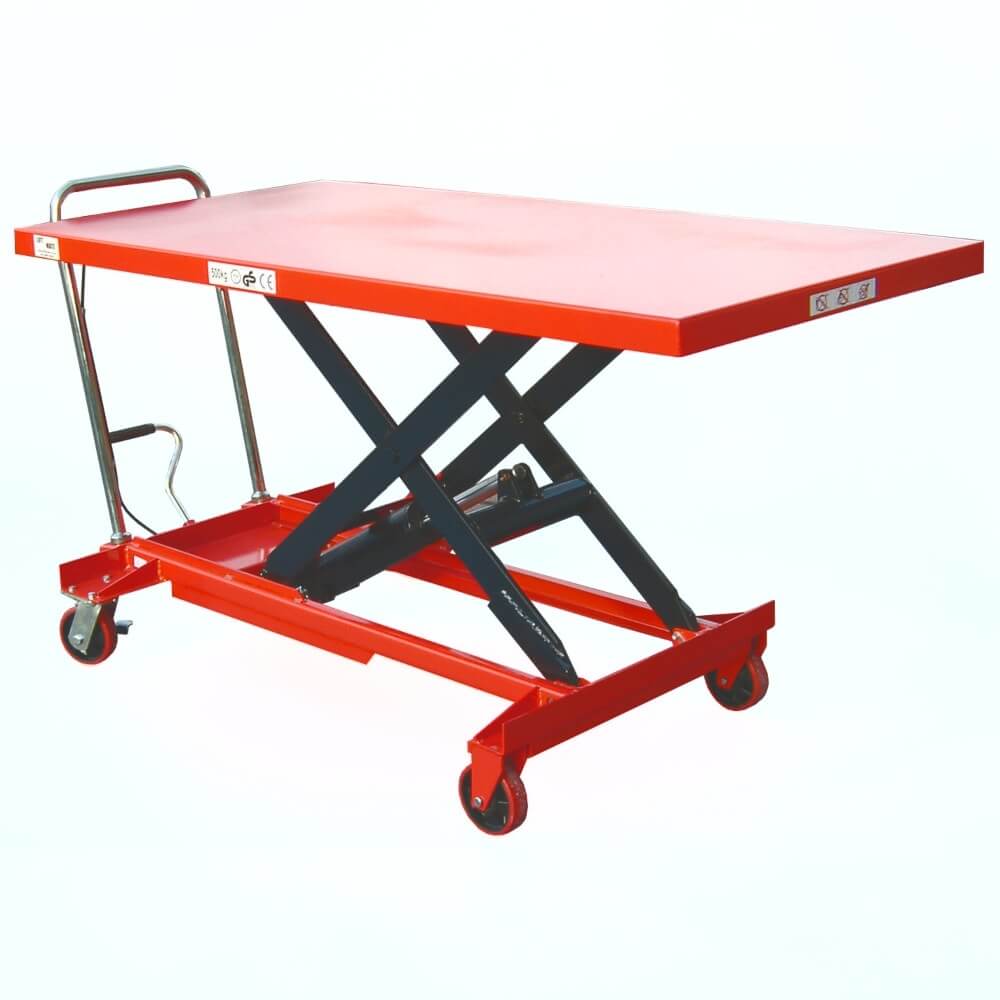

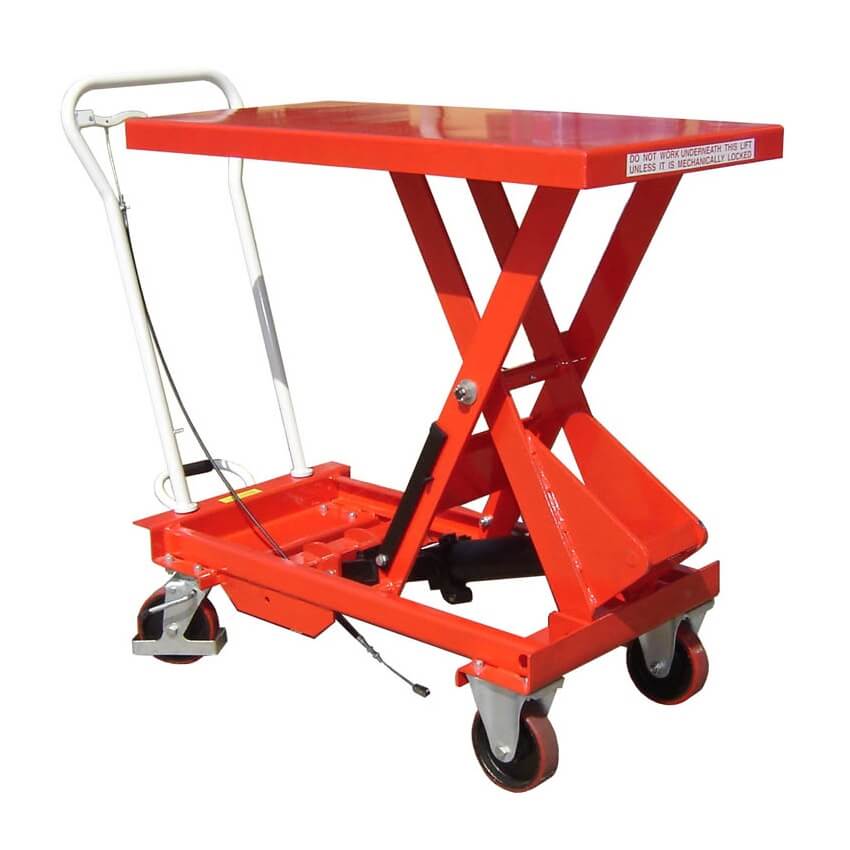

| Platform Size (LxW) | 855 x 500mm | 1010 x 520mm | 1600 x 800mm | 1200 x 800mm |
| Closed Height | 340mm | 435mm | 310mm | 355mm |
| Raised Height | 910mm | 1000mm | 910mm | 1220mm |
| Handle Height | 970mm | 1100mm | 970mm | 1100mm |
| Wheels Diameter | ø 125mm | ø 150mm | ø 125mm | ø 150mm |
| Approx. Weight | 79kg | 118kg | 134kg | 160kg |
Please see optional Scissor Lift Table attachments below and further details in PDF above.
These attachments are designed to make scissor lift table loading and unloading operations easier.
PLEASE NOTE: They can be fitted to BSL50, BSL75, BSL30D, BSL50D, ESL30D and ESL50D scissor lift tables only.

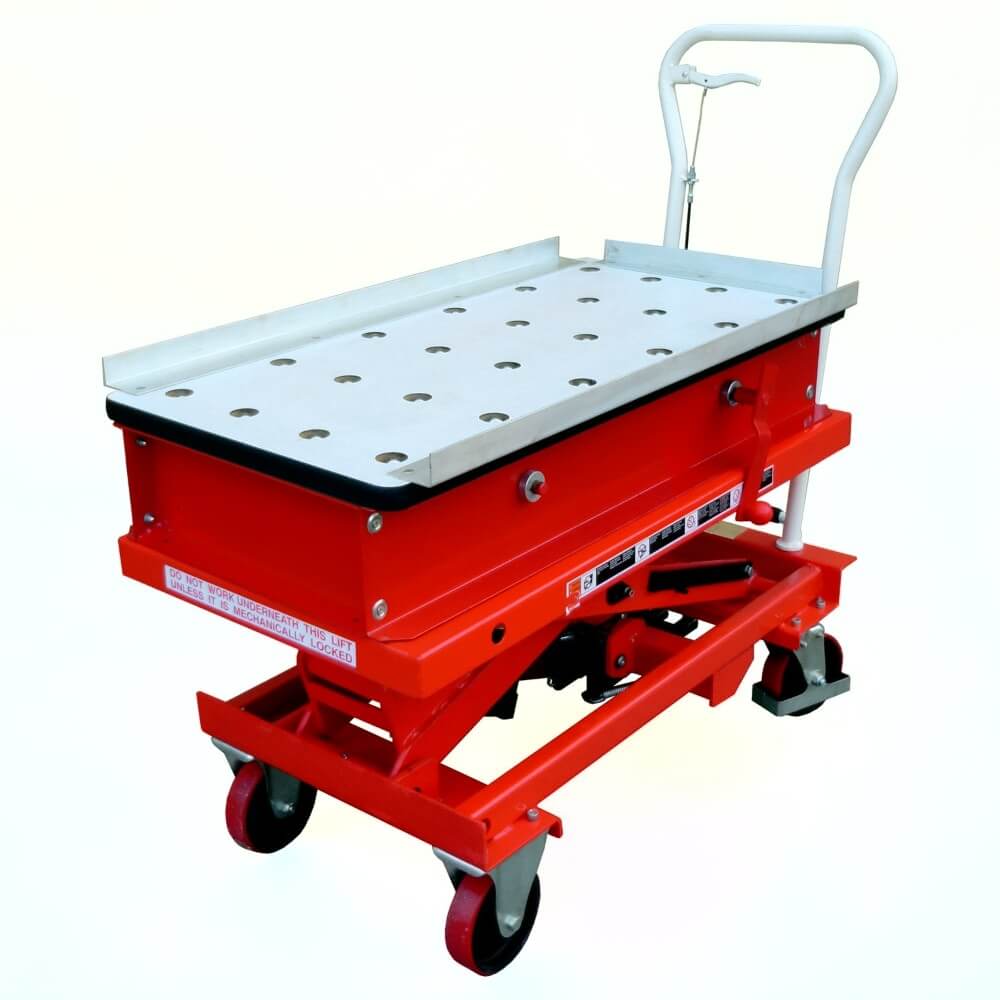

- Ball Transfer Top - BSL/BTT

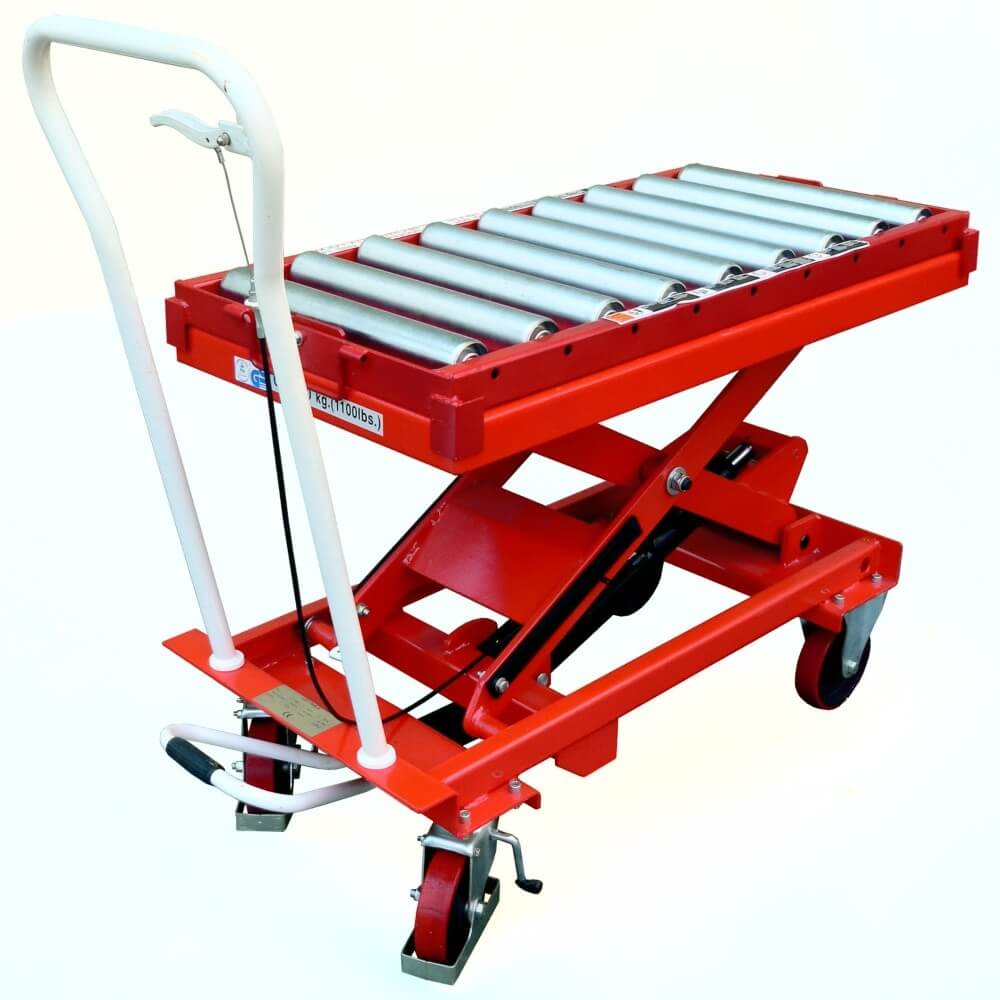

- Straight Roller Track - BSL/SRT

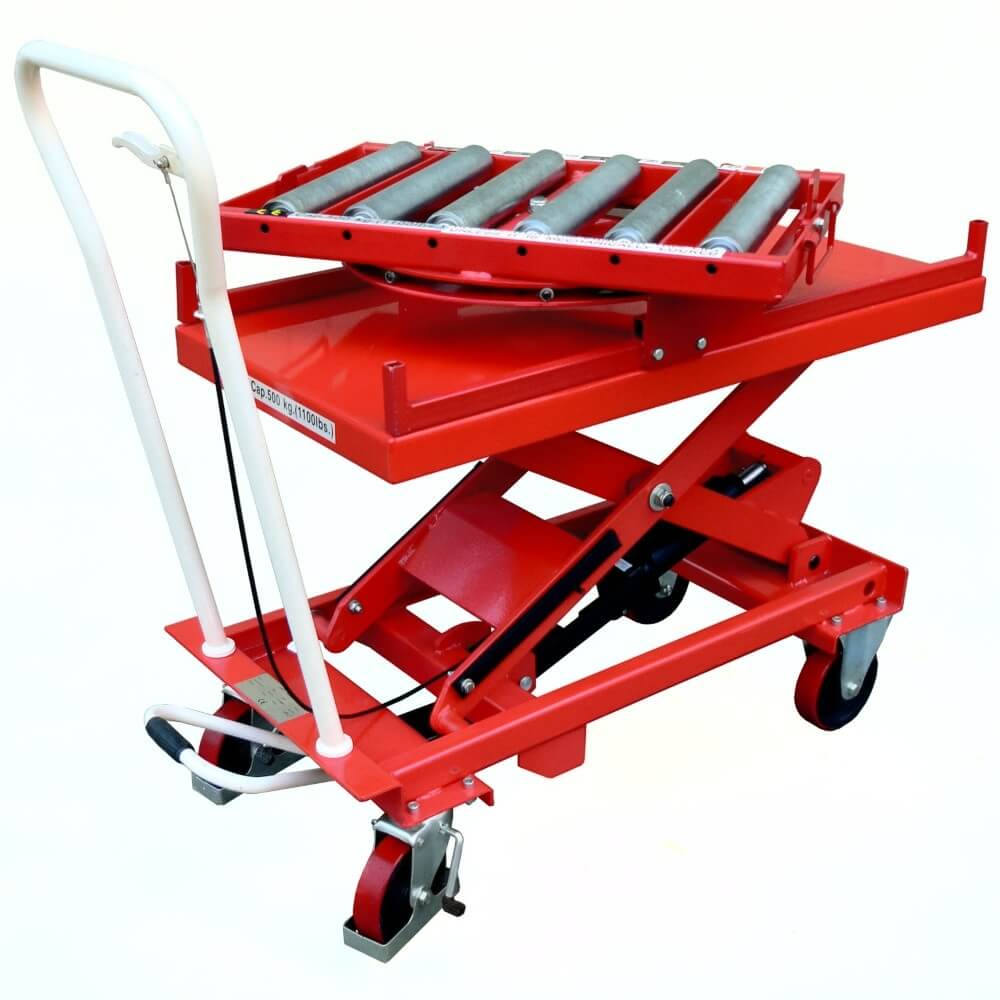

- Turntable Roller Track - BSL/TRT
Lead Time: 1-2 weeks.
