SKU: lm_TNV500T-750

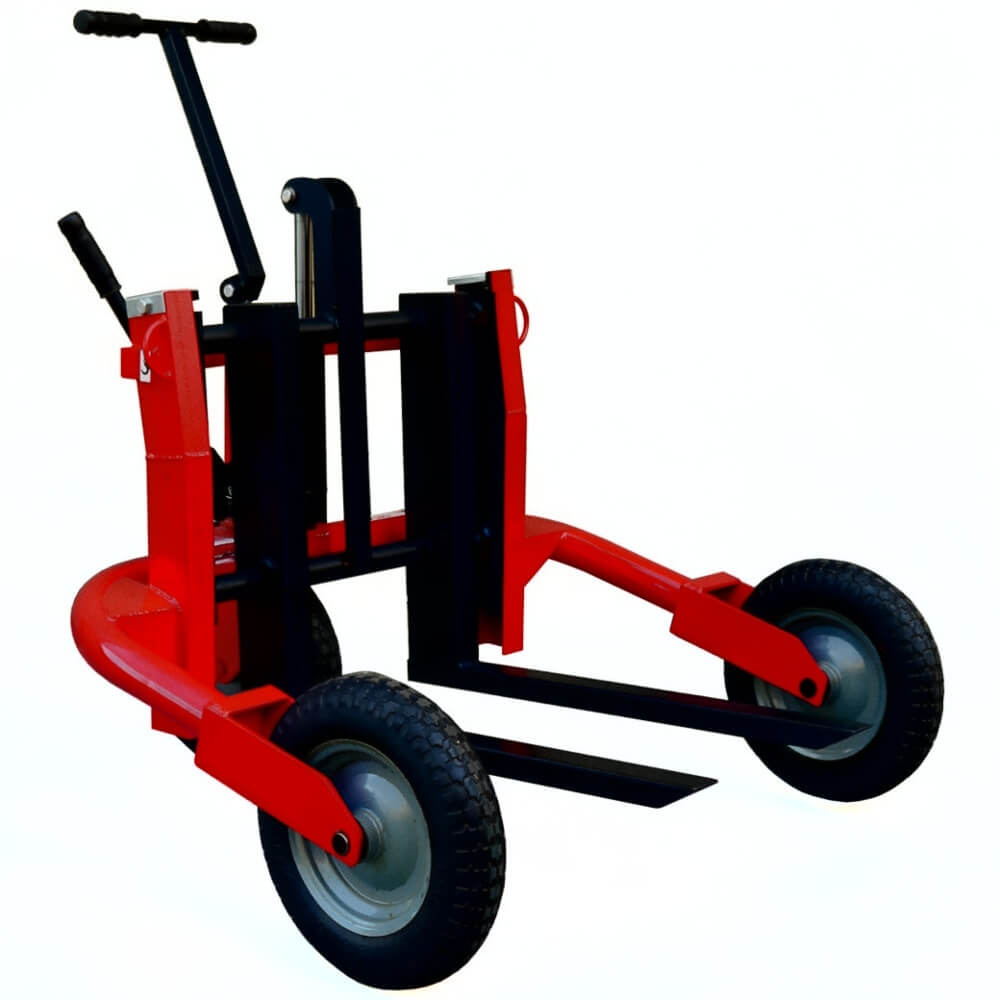

Mini Rough Terrain Tilt Pallet Trucks 500kg

£1,282.05

Max. Pallet Size

Product variants

All prices are excluding VAT
Total Minimum Order Value: £50

Need Help? Our expert team are available to answer any questions that you may have.

Call: 01752 690622
Email: info@merlin-industrial.co.uk
Monday-Thursday: 8am-5pm - Friday: 8am-12pm

Delivery and Shipping

Please note our minimum order value is £50.00

Orders Under £300.00
£12.00 carriage charge on all orders

Orders Over £300.00
Carriage free of charge

We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.

We will confirm the lead time when we send your order confirmation via email.

Please call if you’re needing the items quickly.

Delivery to parts of Scotland, Northern Ireland and other Isles could incur an additional delivery charge. Please get in contact for further details.

Trade Account Options

We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.

Learn More About Trade Accounts

Description

This mini rough terrain tilt pallet truck is designed to provide enhanced load security and performance on uneven outdoor surfaces. Featuring a mechanical tilting fork system, the forks angle upward when raised, helping to prevent loads from slipping during transport—ideal when handling goods on rough or sloped ground.

The tilting action is achieved through an angled top section of the mast, allowing the fork tips to rise automatically as the load is lifted.

Lightweight and compact, this model is perfect for handling small pallets, crates, and containers in environments such as gardens, garden centres, parks, farms, and festivals.

With its three large pneumatic wheels, the truck offers excellent manoeuvrability and can easily navigate tight or confined spaces.

This model is available in two width options to suit different pallet sizes:

750mm straddle gap – suitable for approximately 700mm wide pallets
850mm straddle gap – suitable for approximately 800mm wide pallets

Please note: the narrower version may not accommodate some pallet types, while the wider version may not pass through certain doorways. Be sure to select the most suitable option for your application.

Rough Terrain Pallet Trucks - PDF

500kg load capacity
Mechanical tilting forks for improved load stability
Designed for rough and uneven terrain
Lightweight and compact design
Excellent manoeuvrability with 3-wheel configuration
Large pneumatic terrain wheels
Adjustable fork width
Wheels fitted with sealed bearings for low maintenance

Technical Specifications:

Product Code	TNV500T-750	TNV500T-850
Capacity	500kg	500kg
Load Centre	400mm	400mm
Length of Forks	620mm	620mm
Adjustable Width Over Forks	170-570mm	170-570mm
Max. Pallet Size	700 x 800mm	800 x 800mm
Straddle Gap	750mm	850mm
Lowered Fork Height	35mm	35mm
Raised Fork Height	200mm	200mm
Overall Length	1150mm	1150mm
Wheels	ø 380 Pneumatic	ø 380 Pneumatic
Approx. Weight	75kg	75kg

Lead Time: 2-3 weeks.

Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.

Phone: 01752 690622

Email: info@merlin-industrial.co.uk
