Manual Winch Lifter 200kg
Manual Winch Lifter 200kg is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
All prices are excluding VAT
Total Minimum Order Value: £50
Delivery and Shipping
Delivery and Shipping
Please note our minimum order value is £50.00
Orders Under £300.00
£12.00 carriage charge on all orders
Orders Over £300.00
Carriage free of charge
We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.
We will confirm the lead time when we send your order confirmation via email.
Please call if you’re needing the items quickly.
Delivery to parts of Scotland, Northern Ireland and other Isles could incur an additional delivery charge. Please get in contact for further details.
Trade Account Options
Trade Account Options
We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.
Manual Winch Lifter 200kg
Description
Description

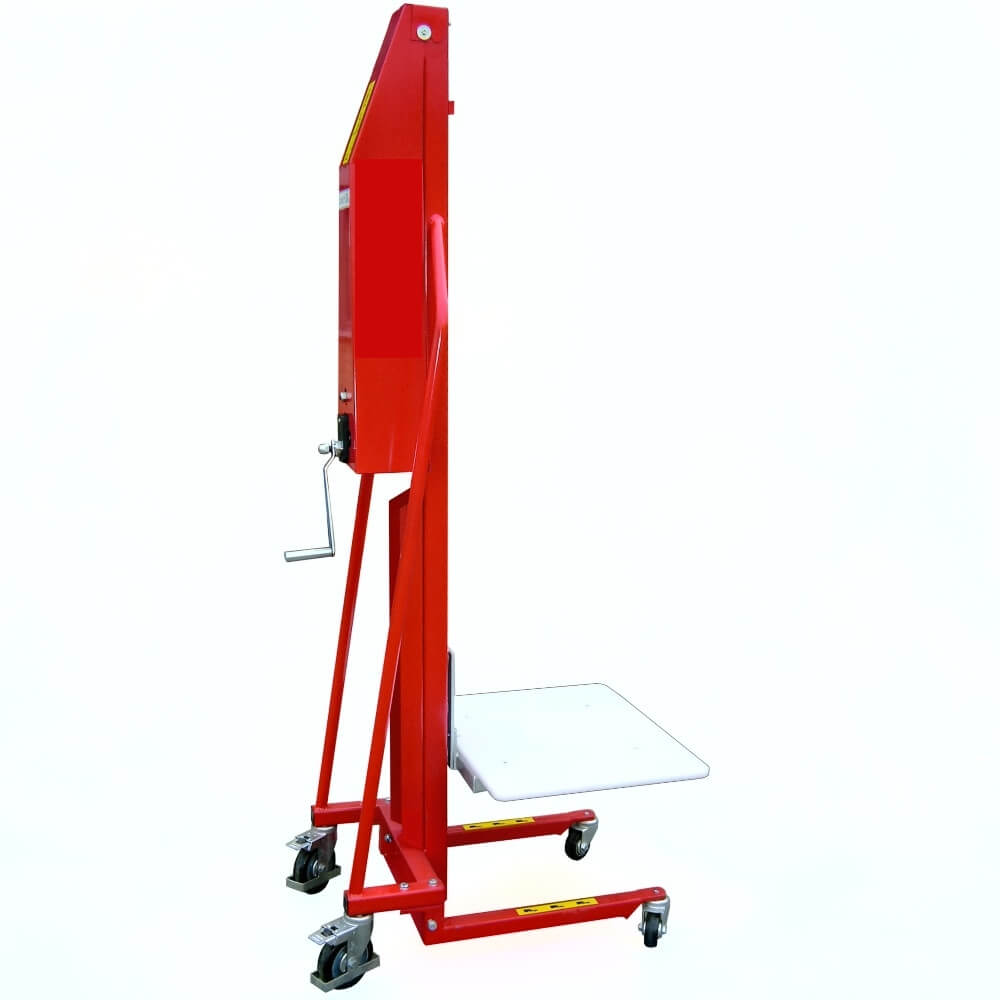

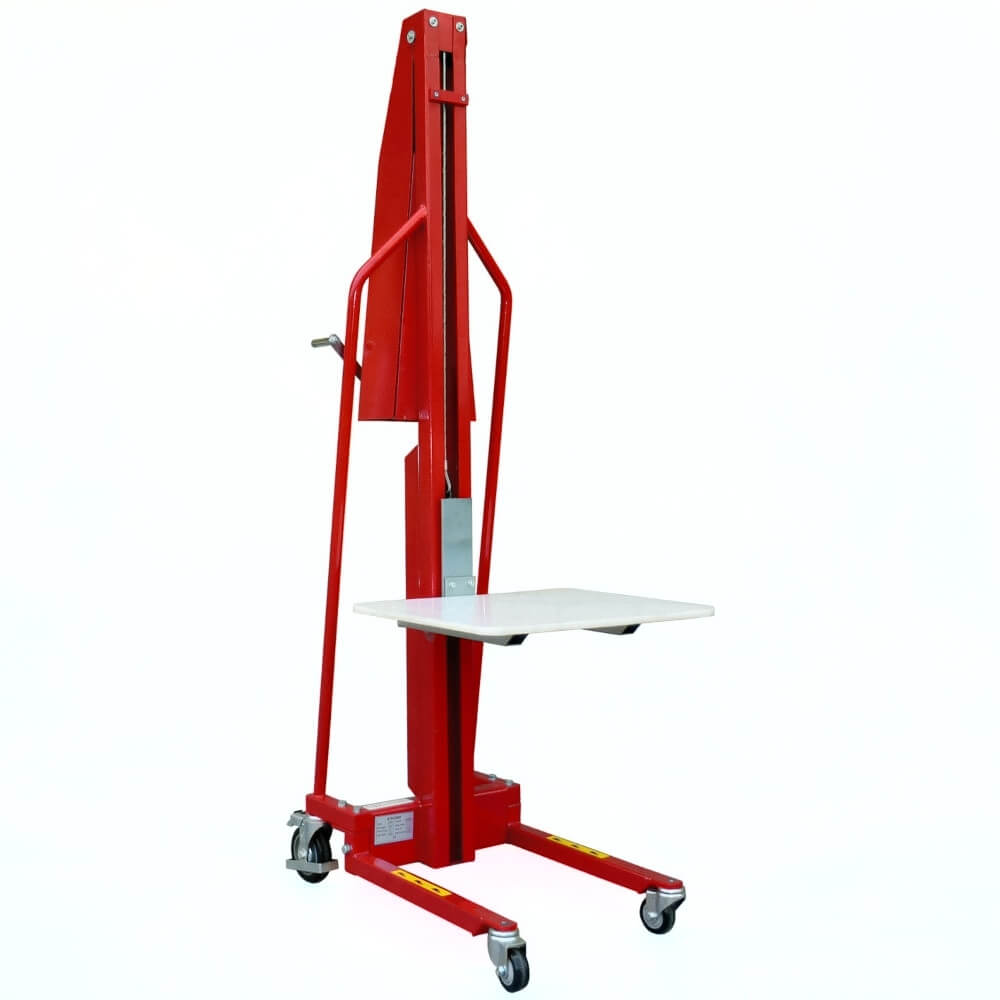

This lightweight and compact manual winch lifter is designed to provide safe, efficient lifting while reducing manual handling strain. With a reliable winch mechanism, it can lift loads from floor level up to 1.5 metres, making it ideal for a wide range of workplace applications.
Its compact footprint and excellent manoeuvrability make it particularly well-suited for use in narrow aisles and confined spaces, such as warehouses, workshops, offices, and retail environments.
Supplied with both forks and a platform as standard, this versatile lifter can handle a variety of load types. It is fitted with non-marking swivel castor wheels for smooth movement, with two wheels equipped with foot brakes for added safety and stability during operation.
A range of optional attachments is available to further enhance functionality, including a single boom, double spindle, and V-block platform. Additional accessories such as ball transfer units and raised frames can also be supplied. Please note that some attachments require the standard platform to be fitted.
For specialised applications, alternative versions are available, including an electric lift model and a server lifter configuration complete with anti-static wheels and securing straps for handling sensitive equipment.
- 200kg load capacity
- Lift height up to 1.5 metres
- Lightweight, compact, and easy to manoeuvre
- Reduces manual handling strain
- Suitable for narrow aisles and confined spaces
- Supplied with forks and platform as standard
- Non-marking swivel castor wheels
- Two foot-operated brakes for safety
- Wide range of optional attachments available
- Electric and specialist versions available on request
Optional Extras - Please see PDF above for more details and images:
- EP01 - Ball Transfer Unit - 610 x 480mm
- EP02 - Roller Platform - 500 x 420mm
- EP03 - V Block
- EP05 - Single Boom Spindle - 50 x 600mm
- EP06 - Double Spindle - 50 x 500mm
- EP07 - Jib and Hook - 500mm long
Technical Specifications:
| Model | M200 |
| Capacity | 200kg |
| Max. Lift Height | 1500mm |
| Lowered Fork Height | 130mm |
| Lift | Manual Winch |
| Load Centre | 235mm |
| Platform Size | 470 x 600mm (LxW) |
| Overall Length | 840mm |
| Overall Width | 600mm |
| Overall Height | 1920mm |
| Wheels Diameter | ø 125 / 75mm |
| Weight | 60kg |
Lead Time: 3 weeks.
Please get in contact if you're needing more than 2+ products for further discount and a more competitive quotation.
