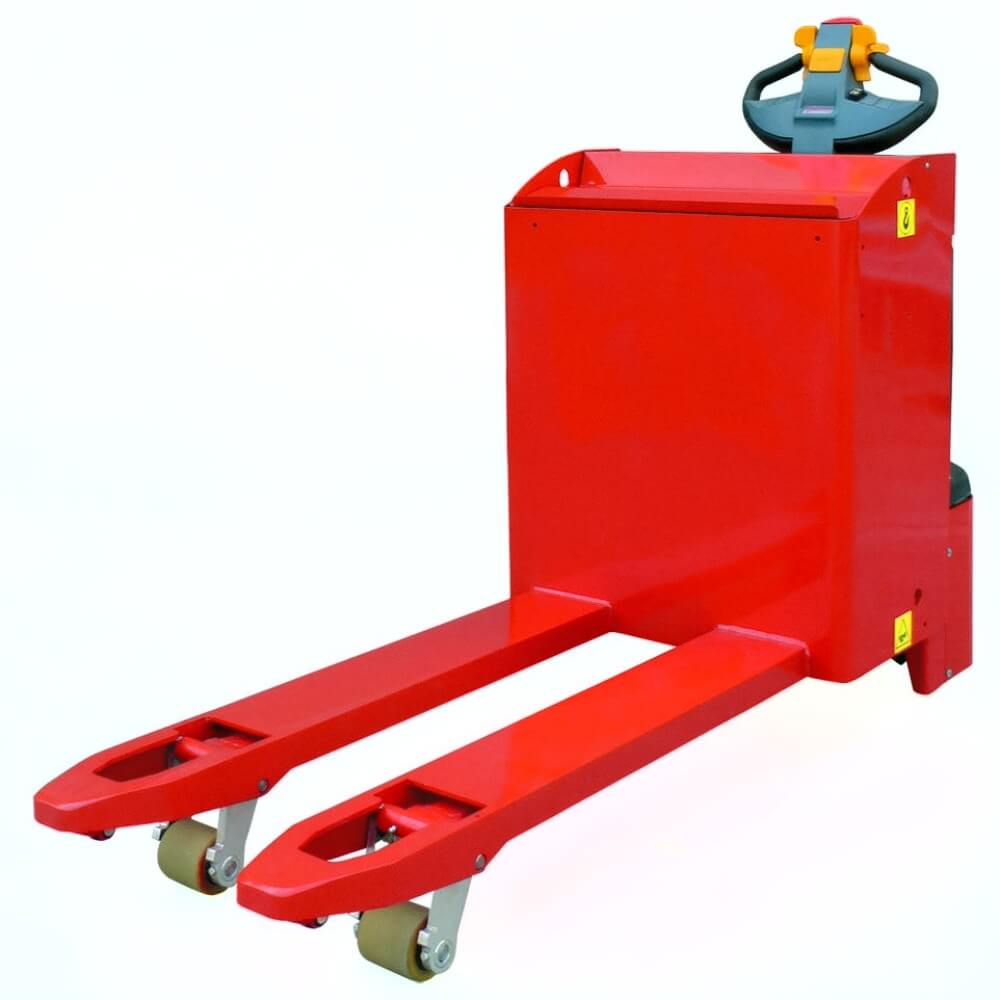

Heavy Duty Fully Powered Pallet Truck 3000kg
Heavy Duty Fully Powered Pallet Truck 3000kg is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
All prices are excluding VAT
Total Minimum Order Value: £50
Delivery and Shipping
Delivery and Shipping
Please note our minimum order value is £50.00
Orders Under £300.00
£12.00 carriage charge on all orders
Orders Over £300.00
Carriage free of charge
We will aim to have your order dispatched as quickly as possible. Please bear in mind with custom orders and made to order products the lead times are longer.
We will confirm the lead time when we send your order confirmation via email.
Please call if you’re needing the items quickly.
Delivery to parts of Scotland, Northern Ireland and other Isles could incur an additional delivery charge. Please get in contact for further details.
Trade Account Options
Trade Account Options
We require your first 3 orders to be paid for via proforma within a 12-month period with a total minimum spend of £1000. After which, on completion of your Credit Application Form we can then accept your 4th order on account.
Heavy Duty Fully Powered Pallet Truck 3000kg
Description
Description
The Heavy Duty Fully Powered Pallet Truck is designed for demanding, high-capacity applications where strength, durability, and consistent performance are essential. With a 3000kg load capacity, it is ideal for transporting heavy loads on a regular basis in industrial and warehouse environments.
This pedestrian-controlled unit features a central tiller for precise handling and ease of operation. Both drive and lift functions are fully electric, delivering smooth, efficient performance with minimal operator effort.
Powered by a robust AC drive system, the truck is equipped with a 24V / 1200W motor and an electromagnetic brake for enhanced control and safety. The hydraulic unit (24V / 800W) includes an electric descending valve for controlled and precise load lowering. An advanced AC electronic controller (up to 24V / 250A) ensures reliable and responsive operation.
For added convenience, the pallet truck includes a clear battery discharge indicator with an LCD hour counter, along with a safety feature that prevents fork operation when the battery is critically low. A speed selector allows operation with the tiller in the upright position, improving manoeuvrability in confined spaces.
With a fork width of 565mm and fork size of 560 x 1150mm, along with a lifting height of 120mm, this unit is well suited for handling standard pallets and heavy-duty loads.
Key Features:
- 3000kg heavy-duty load capacity
- Fully powered: electric drive and electric lift
- Pedestrian-controlled with central tiller
- AC electronic controller (up to 24V / 250A)
- AC drive motor (24V / 1200W) with electromagnetic brake
- Hydraulic unit (24V / 800W) with electric descending valve
- Battery discharge indicator with LCD hour counter
- Fork lockout protection at low battery levels
- Speed selector for upright tiller operation
- Fork width: 565mm
- Fork size: 560 x 1150mm
- Lifting height: 120mm
- Designed for frequent heavy-duty use
Technical Specifications:
| Model | LiTP30/560x1150 |
| Capacity | 3000kg |
| Load Centre | 600mm |
| Overall Fork Width | 565mm |
| Fork Length | 1150mm |
| Overall Length | 1795mm |
| Lowered Fork Height | 85mm |
| Max. Height of Forks | 120mm |
| Overall Height (with Tiller) | 1026mm |
| Rear Body Width | 710mm |
| Minimum Turning Radius | 1606mm |
| Maximum Travel Speed (Laden) | 4.8km/h |
| Maximum Travel Speed (Unladen) | 5.5km/h |
| Gradeability (Laden) | 7% |
| Gradeability (Unladen) | 17% |
| Drive Motor | 1200W DC |
| Lift Motor | 800W DC |
| Battery Voltage | 24V |
| Drive Control | 24V 250A |
| Battery Type | Lithium |
| Brake | Electromagnetic |
| Tyres | Polyurethane |
| Tyre Size - Front | 80 x 90mm |
| Tyre Size - Rear | 250 x 79mm |
Lead Time: 1-2 weeks.
Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
