Electric Rough Terrain Pallet Truck 1200kg
Description
Description

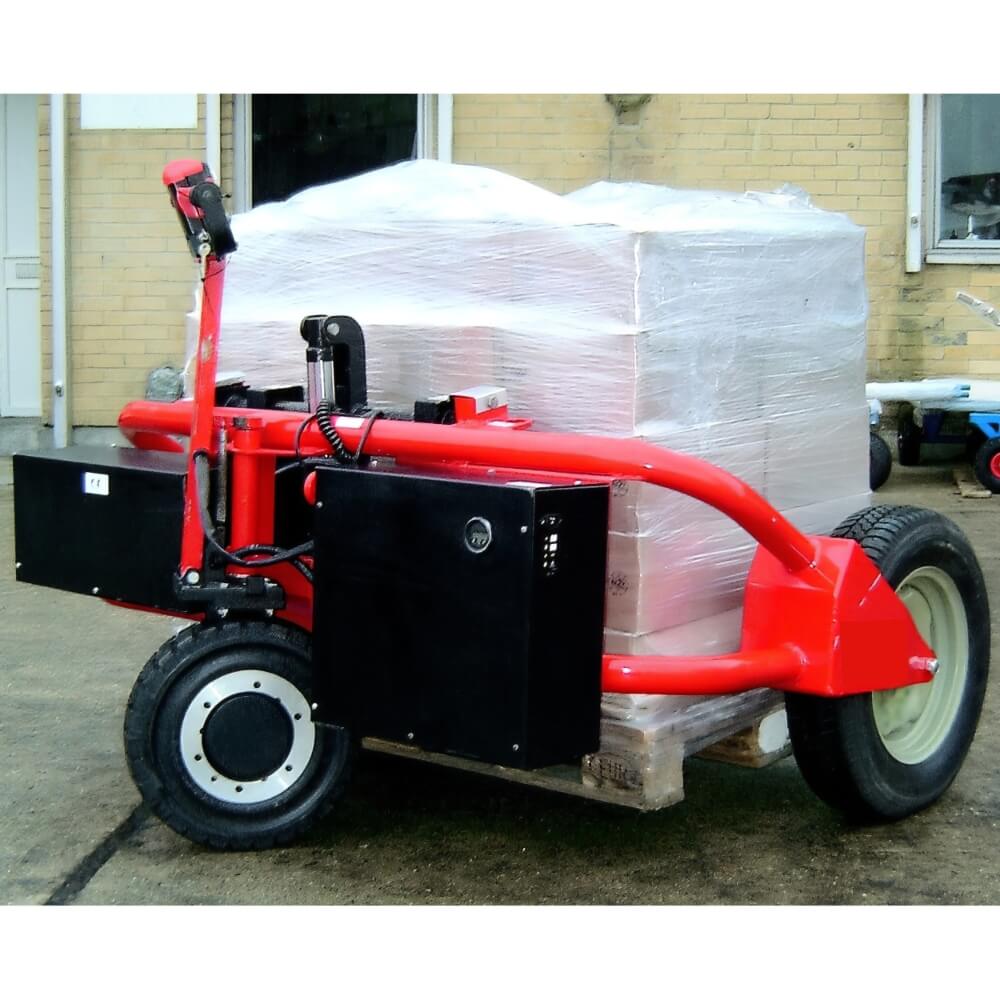

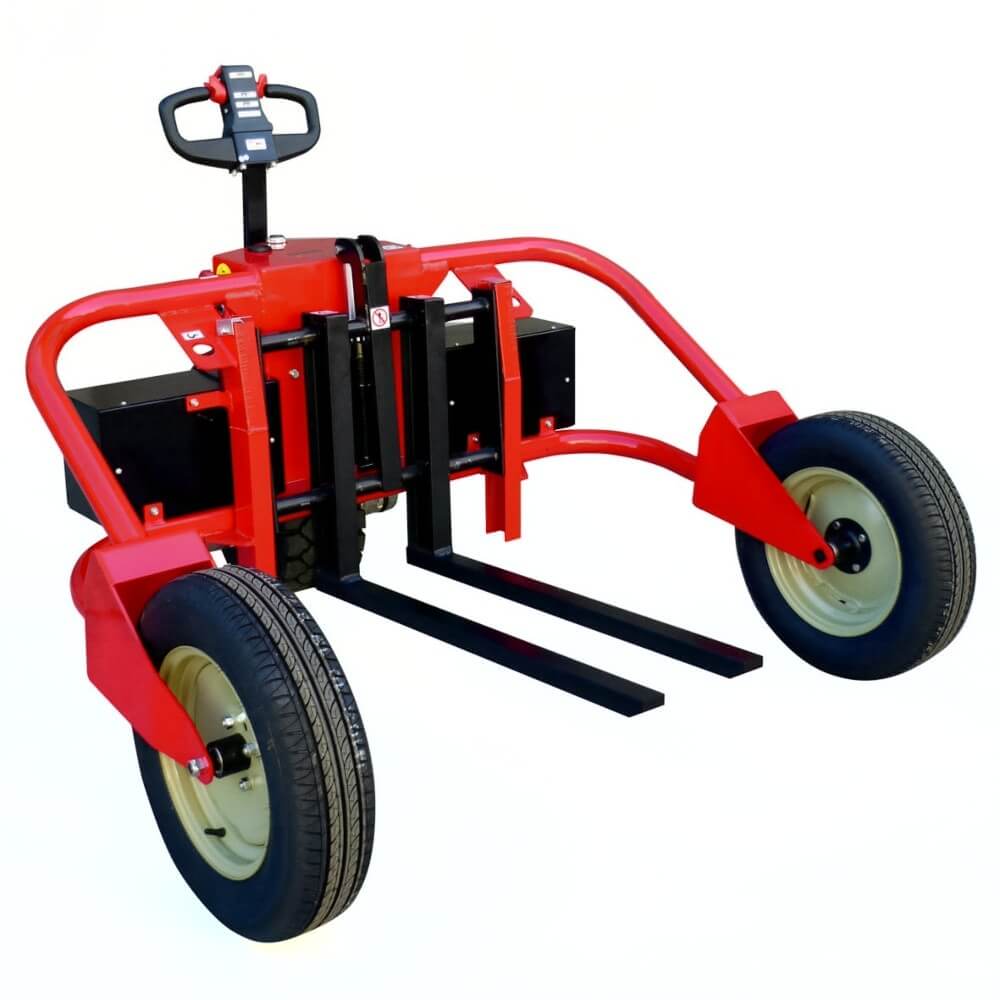

The Electric Rough Terrain Pallet Truck is a heavy-duty, fully powered solution designed for efficient operation on uneven and outdoor surfaces. With a 1200kg load capacity, it is ideal for handling pallets in demanding environments where standard pallet trucks are not suitable.
Featuring both electric drive and electric lift, this unit ensures smooth, effortless handling with minimal operator input. Powered by two heavy-duty 12V batteries, it provides reliable, full-day operation under normal working conditions.
Designed for durability and performance, the truck is equipped with pneumatic tyres and wheels fitted with sealed bearings, delivering excellent traction and manoeuvrability across rough terrain. Adjustable fork width allows for greater flexibility when handling different pallet sizes.
A built-in charger is included as standard and connects to a 240V mains supply, with an optional 110V charger available to suit different working environments.
This pallet truck can also be customised with special sizes and optional fork extensions, making it a versatile solution for a wide range of applications.
Key Features:
- 1200kg load capacity
- Fully powered: electric drive and electric lift
- Two heavy-duty 12V batteries for extended operation
- Built-in charger (240V standard, 110V optional)
- Excellent manoeuvrability on rough terrain
- Adjustable fork width for versatile handling
- Pneumatic tyres for improved grip and stability
- Wheels fitted with sealed bearings for durability
- Optional fork extensions and bespoke sizes available
Technical Specifications:
| Model - TNE1200 | TNE1200-1DC | TNE1200-1AC | TNE1200-2DC |
| Capacity | 1200kg | ||
| Drive Wheel Motor | 1 x 500 DC | 1 x 1000 AC | 2 x 500 DC |
| Battery | 2 x 60Ah | 2 x 100Ah | 2 x 100Ah |
| Load Centre | 500mm | ||
| Fork Length | 890mm | ||
| Overall Fork Width | Adjustable 160 – 560mm | ||
| Max. Pallet Size | 1200 x 1200mm | ||
| Straddle Gaps | 1250mm | ||
| Overall Width | 1640mm | ||
| Overall Length | 1400mm | ||
| Lowered Fork Height | 50mm | ||
| Raised Fork Height | 220mm | ||
| Wheels | Pneumatic and Super Elastic | ||
Gradeability:
| Gradient | TNE1200-1DC | TNE1200-1AC | TNE1200-2DC |
| 0% | 1200kg | 1200kg | 1200kg |
| 1% | 1200kg | 1200kg | 1200kg |
| 3% | – | 1200kg | 1200kg |
| 4% | 800kg | – | 1200kg |
| 5% | – | – | 1200kg |
| 6% | – | 800kg | 1200kg |
| 8% | – | – | 1200kg |
| 10% | – | 500kg | 1200kg |
| 14% | 300kg | – | – |
| 15% | – | – | 800kg |
| 18% | – | 300kg | – |
| 20% | 0kg | – | – |
| 23% | 0kg | – | 500kg |
| 25% | 0kg | 0kg | – |
| 30% | 0kg | 0kg | 300kg |
| 45% | 0kg | 0kg | 0kg |
Lead Time: 6-8 weeks.
Please get in contact with the quantity needed, product code and delivery postcode for a competitive quotation and lead time.
