GroundTuff Pro Matting - Black

GroundTuff PRO is the heavy-duty version of our trusted GroundTuff mat, engineered to provide outstanding temporary ground protection in the most demanding environments.

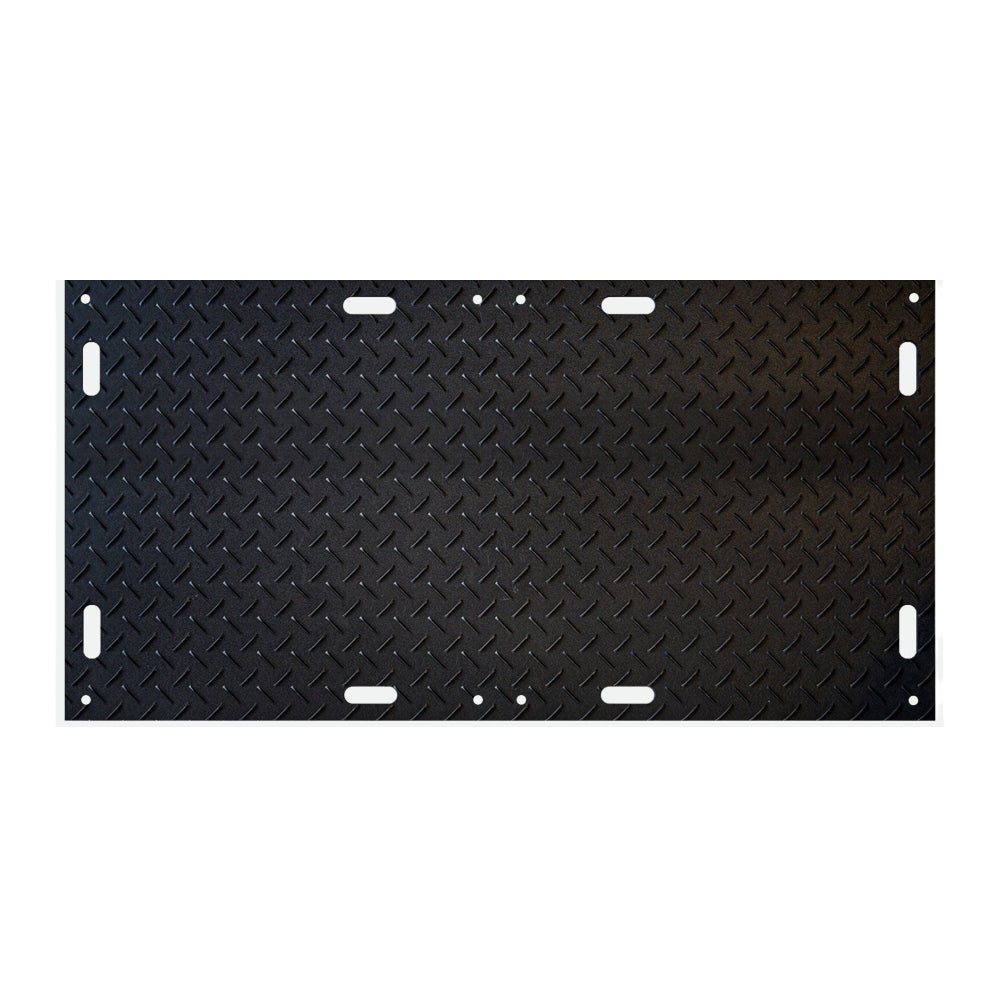

Manufactured from 100% recyclable high-density polyethylene (HDPE), each mat measures 1200mm × 2400mm × 12.7mm and supports loads of up to 60 tonnes, depending on ground conditions. Designed for strength and practicality, GroundTuff PRO features a dual-sided surface: a 4-bar chequer plate for pedestrian use and a 1-bar chequer plate for vehicle traffic, making it suitable for a wide range of applications.

Lightweight and easy to handle, each mat includes integrated hand holes for quick lifting and positioning, ensuring safe and efficient installation. Corner and side holes are also incorporated for use with two-way or four-way connectors, allowing mats to be securely linked together to create custom-sized platforms, roadways, or large flooring areas.

The non-slip surface pattern delivers excellent grip and durability, even in challenging conditions. Waterproof and resistant to oils and chemicals, GroundTuff PRO is completely maintenance-free and built to provide reliable, long-term performance.

Ideal for numerous applications, GroundTuff PRO is suitable for groundwork cover, construction sites, industrial flooring, utilities and infrastructure maintenance, temporary roadways and parking, pedestrian walkways, festivals and outdoor events, lawn and landscape protection, paving and surface protection, heritage and eco-sensitive areas, sports and golf course maintenance, emergency response, disaster recovery, and military and defence operations.

Please note: the ground beneath the mats must be structurally sound and free from significant depressions, such as potholes, as uneven surfaces may cause cracking or damage.

Features:

• Heavy-duty load capacity: Supports up to 60 tonnes, making it ideal for heavy machinery and vehicles

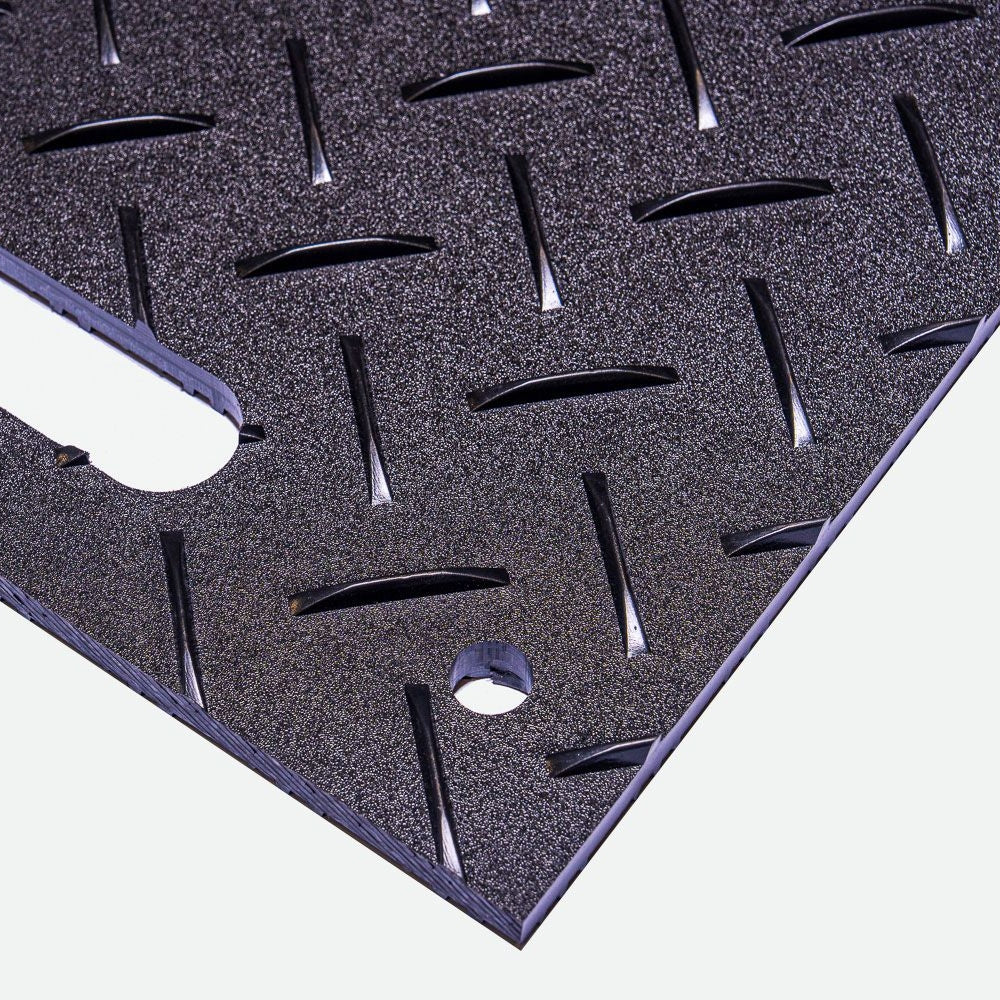

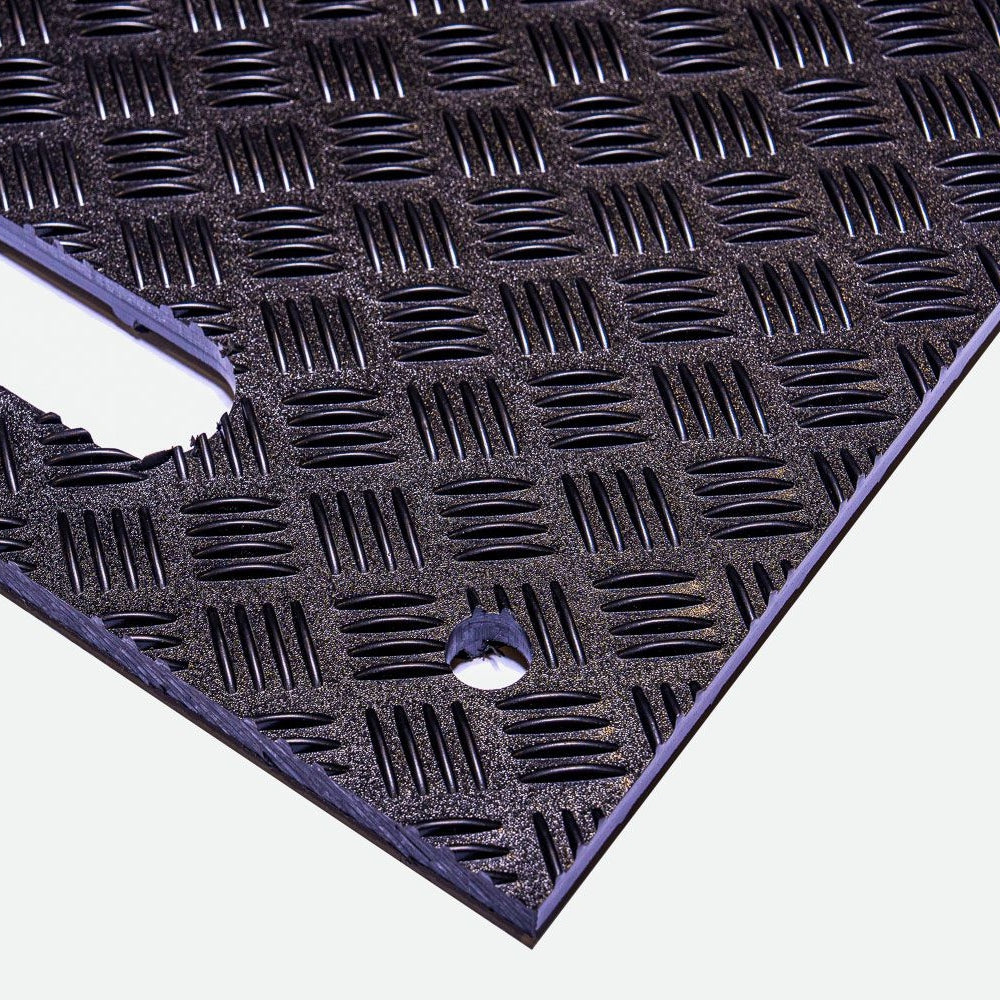

• Dual-sided design: One side with a 4-bar chequer plate surface for pedestrian use, and the other with a 1-bar chequer plate for vehicle use
• Durable HDPE construction for long-lasting performance

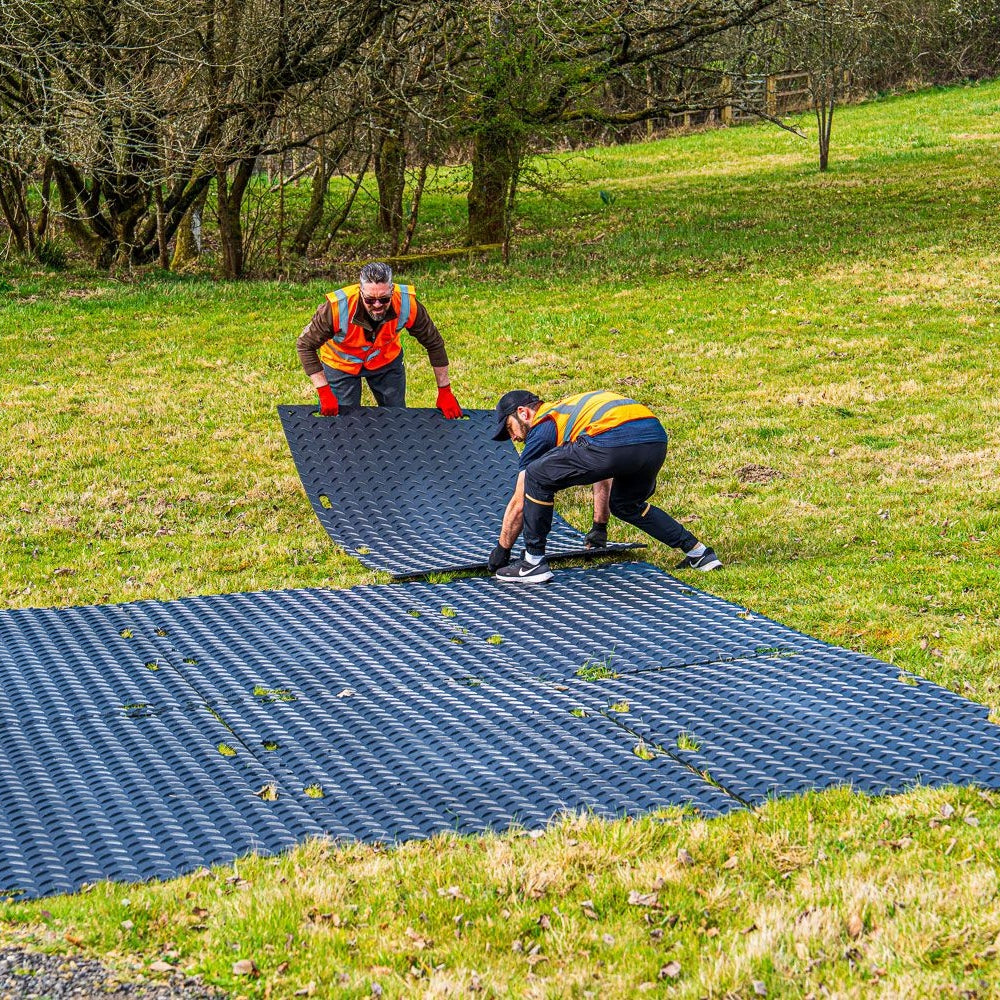

• Lightweight and easy to handle: Designed for effortless 2-man lifting and positioning for easy transportation
• Integrated hand holes: Allow for quick and efficient handling on-site

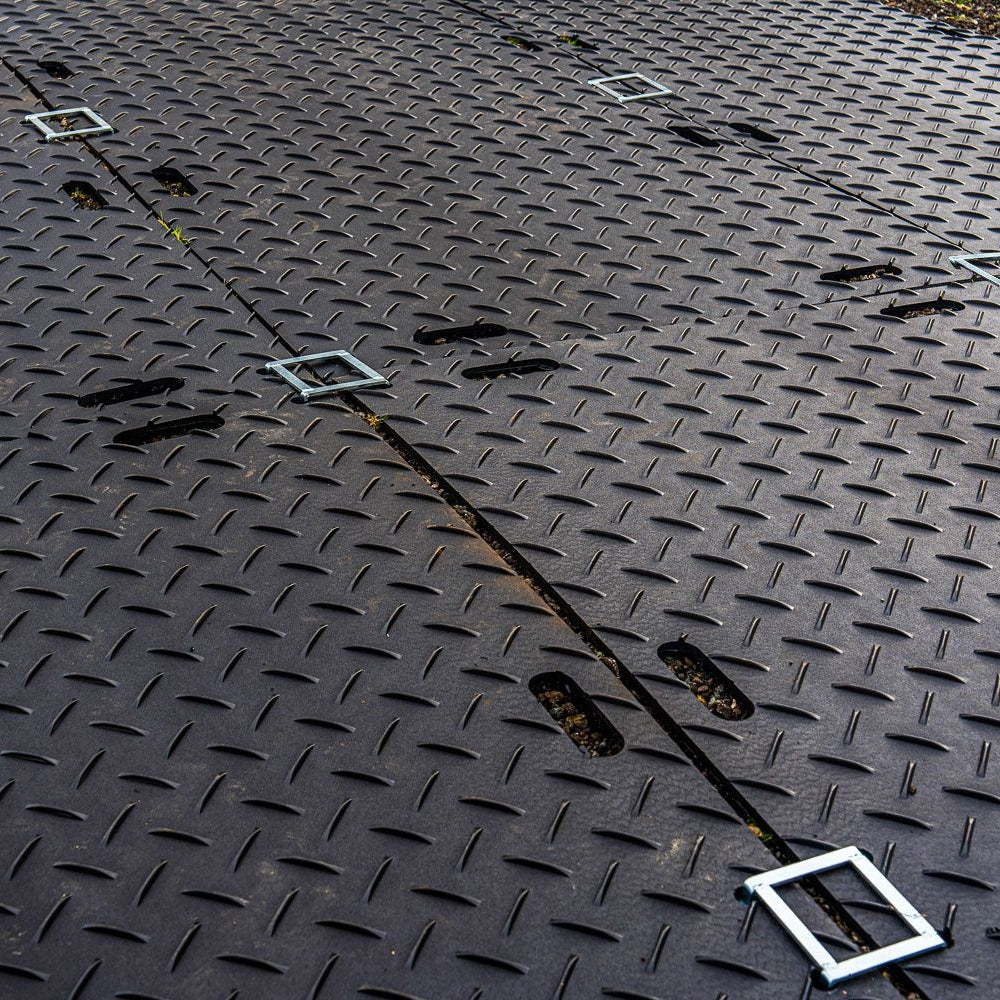

• Corner connection points: Pre-drilled holes for 2-way or 4-way connectors, ensuring a secure, seamless fit for larger areas
• Non-slip surface chequer plate pattern: Provides maximum grip and stability in all conditions
• Weather and chemical resistant: Waterproof and resistant to oils, chemicals, and extreme conditions
• Maintenance-free: Built for long-term use
• Improved health and safety: Helps avoid health and safety issues caused by poor ground conditions, providing a stable and secure surface for workers and machinery
• Material: 100% recyclable High-Density Polyethylene (HDPE)
• Overall height: 12.7mm


Technical Specifications:

• Slip resistant - Excellent slip resistance to level 3
• Wear resistant - Excellent wear resistance to level 3, suitable for heavy footfall
• Chemical resistant - Yes, resistant to most chemicals, grease, and oils
• Connectable - Mats are connectable to create any shape or size
• Disability friendly - The pedestrian surface (4-bar chequer plate) is suitable for wheelchair users
• Dry area - Yes
• Wet area - Yes
• Heavy area - Yes
• Wheeled area - Yes
• Environment - Suitable for indoor and outside use
• Impact resistant - Yes
• Product testing -
  - Physical properties
    Density: 0.96 g/cm³ (ASTM D792)
    Water absorption: <0.10% (ASTM D570)
  - Mechanical properties
    Hardness: 65 Shore D (ASTM D2240)
    Tensile strength at yield 23°C: 4000 psi (ASTM D638)
    Tensile modulus: 217000 psi (ASTM D638)
    Elongation at break: >700% (ASTM D638)
    Flexural strength: 210000 psi (ASTM D790)
    Compressive strength: 1500 psi (ASTM D695)
    Coefficient of friction, dynamic: 0.20–0.29
    Izod impact, notched: 3.5 ft-lb/in (ASTM D256)
  - Electrical properties
    Surface resistivity: >10¹⁴ Ω/cm (ASTM D257)
    Dielectric constant: 2.4 1MHz (ASTM D150)
  - Temperature resistance
    Service temperature: -73°C to 82°C
    Melting point: 131°C (ASTM D3418)
    Vicat softening point: 125°C (ASTM D1525)
    Heat deflection temperature: 77°C (ASTM D648)
    Brittleness Temperature: -75°C (ASTM D746)
    Fire: UL94 HB

• Sustainability - Manufactured from 100% recyclable HDPE, which is widely accepted at recycling centres
• Temperature resistance - -73°C to 82°C
• Cleaning - Using a stiff brush will usually remove most dirt and debris. For more stubborn dirt, a pressure washer can be used.
• Weight - 37.5kg

Sizes:

Lead Time: 3-5 working days (subject to sales)

Please get in contact if you're needing 2+ units for further discount and a more competitive quotation.
